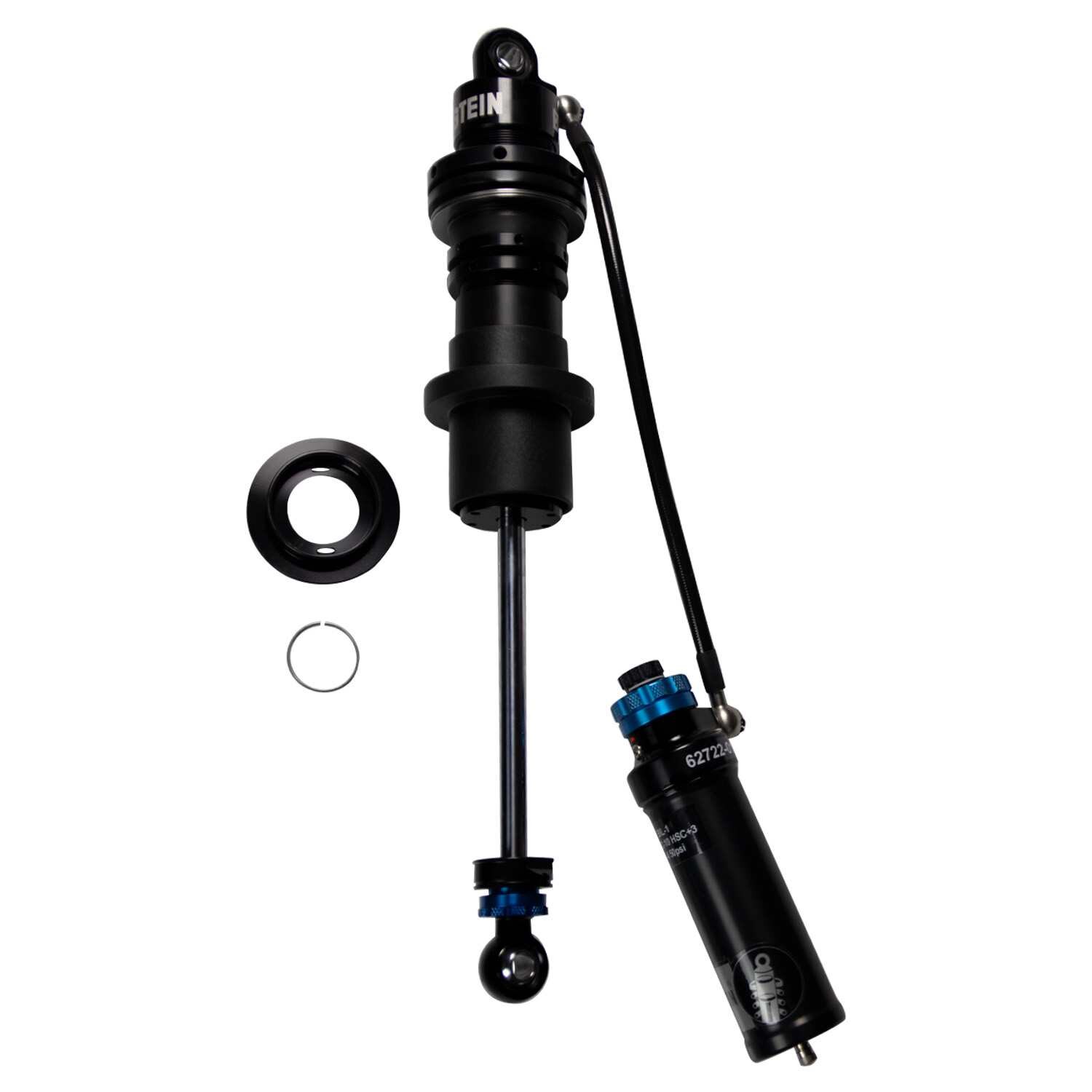

AS2-R Series - Suspension Shock Absorber - Bilstein - 33-323466

Bilstein AS2-R Series shock absorbers are designed for motorsports applications and provides premium performance through superior tuning and modular design. The package features an aluminum-bodied remote reservoir with tunable base valve technology and several adjustment options mated to Bilstein-™s AS2 Series aluminum modular shock. The lightweight threaded body shock can be used with or without coilover hardware. Pistons piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. The AS2-R Series shock absorbers offer racers a versatile damper that maximizes suspension travel and gives an endless range of options for tuning and upgradeability.Championship-winning tuning options; All dampers feature 46mm aluminum monotube designs for light weight and hard anodized for durability; Low friction rod guides for minimum rod drag
Adjustable Damping: Triple Adjustable - Rebound and High and Low Speed Compression
Body Design: Threaded Body Screw Top (Coilover)
Body Material: Aluminum
Boot Included: No
Collapsed Length (IN): 12.71
Collapsed Length (MM): 323.0
Extended Length (IN): 19.29
Extended Length (MM): 490.0
FAB: Championship-winning tuning options
FAB: Low friction rod guides for minimum rod drag
FAB: All dampers feature 46mm aluminum monotube designs for light weight and hard anodized for durability
Finish: Clear Anodized
Internal Design: Monotube
Lower Mount Type: 1/2in Heim
PartType: Shocks / Struts
Piston Diameter: 46mm
Piston Type: Digressive/Linear
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Segment: Motorsports
Series: AS2-R Series
Shaft Diameter: 14mm
Spring Hardware: B4-MKT-0004A00
Spring Hardware 2: B4-MKT-0008A00
Spring Hardware 3: E4-MSG-0096A00
Spring Hardware 4: B4-FT4-Z060A00
Spring Seat Included: Yes
Stroke/Travel Length (IN): 6.58
Stroke/Travel Length (mm): 167.1
Title: Bilstein Shock Absorbers
Upper Mount Type: 1/2in Heim
