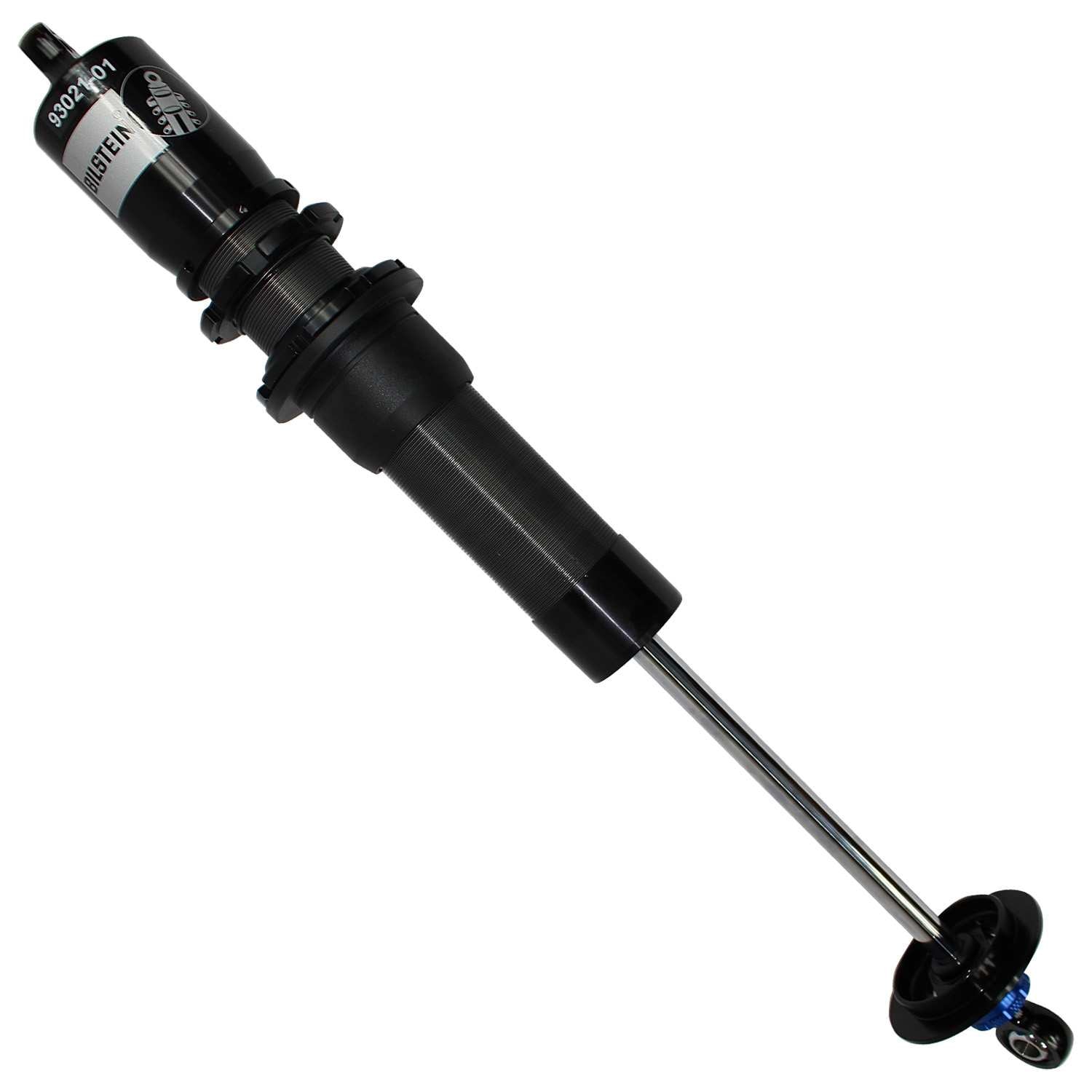

XVA Series - Suspension Shock Absorber - Bilstein - 33-322766

Bilstein XVA Series shock absorbers features aluminum threaded body construction designed for motorsports applications. The large volume dual zone nitrogen bulb with optional base valve (sold separately) allows for lower gas pressure for increased grip. These shock absorbers are available in non- single and double adjustable configurations for precise on-vehicle tuning options. Pistons piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. XVA Series shock absorbers are ideal for racers looking for an aluminum rebuildable design with multiple upgrade options and superior performance.46mm extruded aluminum threaded body improves durability and heat dissipation; Dual-zone gas bulb decreases gas pressure while increasing grip levels; Optimized floating piston improves driver feel and response
Adjustable Damping: Single Adjustable - Rebound
Body Design: Threaded Body Large Bulb Screw Top (Coilover)
Body Material: Aluminum
Boot Included: No
Collapsed Length (IN): 15.61
Collapsed Length (MM): 396.5
Extended Length (IN): 23.58
Extended Length (MM): 598.9
FAB: 46mm extruded aluminum threaded body improves durability and heat dissipation
FAB: Optimized floating piston improves driver feel and response
FAB: Dual-zone gas bulb decreases gas pressure while increasing grip levels
Finish: Clear Anodized
Internal Design: Monotube
Lower Mount Type: 1/2in Heim
PartType: Shocks / Struts
Piston Diameter: 46mm
Piston Type: Digressive
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Segment: Motorsports
Series: XVA Series
Shaft Diameter: 14mm
Spring Seat Included: No
Stroke/Travel Length (IN): 7.97
Stroke/Travel Length (mm): 202.4
Title: Bilstein Shock Absorbers
Upper Mount Type: 1/2in Heim
