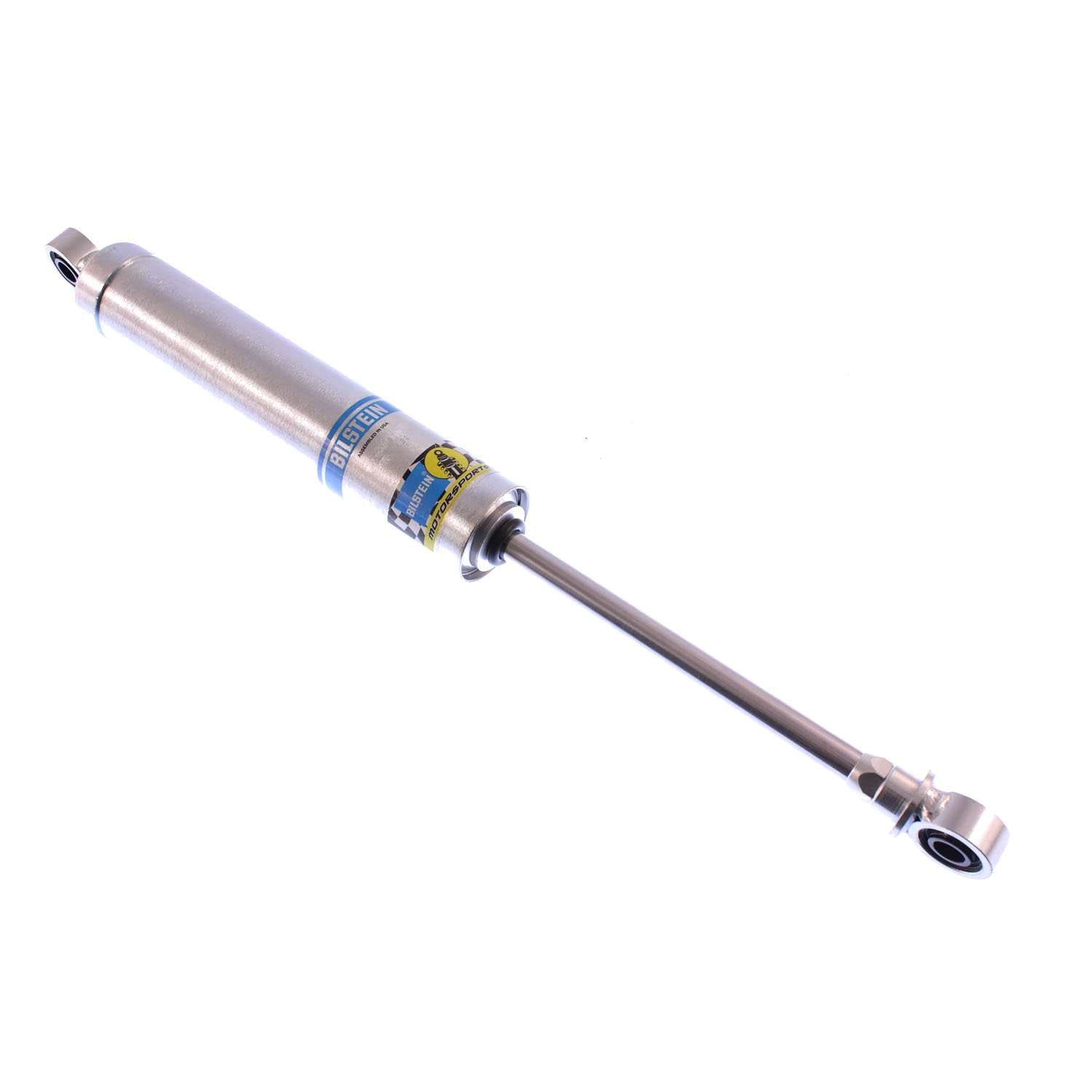

SZ Series - Suspension Shock Absorber - Bilstein - 33-321981

Bilstein SZ Series shock absorbers feature a 46mm piston steel construction and smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths and standard digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately). SZ Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.Plated steel body for durability and superior heat dissipation; 46mm piston design for maximum damping control; Standard 1/2- graphite heims
Adjustable Damping: Non-Adjustable
Body Design: Smooth Body (Non-coilover)
Body Material: Steel
Boot Included: No
Collapsed Length (IN): 14.88
Collapsed Length (MM): 378.0
Compression @ 10 inch/sec: 675
Extended Length (IN): 23.52
Extended Length (MM): 597.5
FAB: Plated steel body for durability and superior heat dissipation
FAB: Standard 1/2- graphite heims
FAB: 46mm piston design for maximum damping control
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: 1/2in Heim
PartType: Shocks / Struts
Piston Diameter: 46mm
Piston Type: Digressive
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Rebound @ 10 inch/sec: 125
Segment: Motorsports
Series: SZ Series
Shaft Diameter: 14mm
Spring Seat Included: No
Stroke/Travel Length (IN): 8.64
Stroke/Travel Length (mm): 219.5
Title: Bilstein Shock Absorbers
Upper Mount Type: 1/2in Heim
