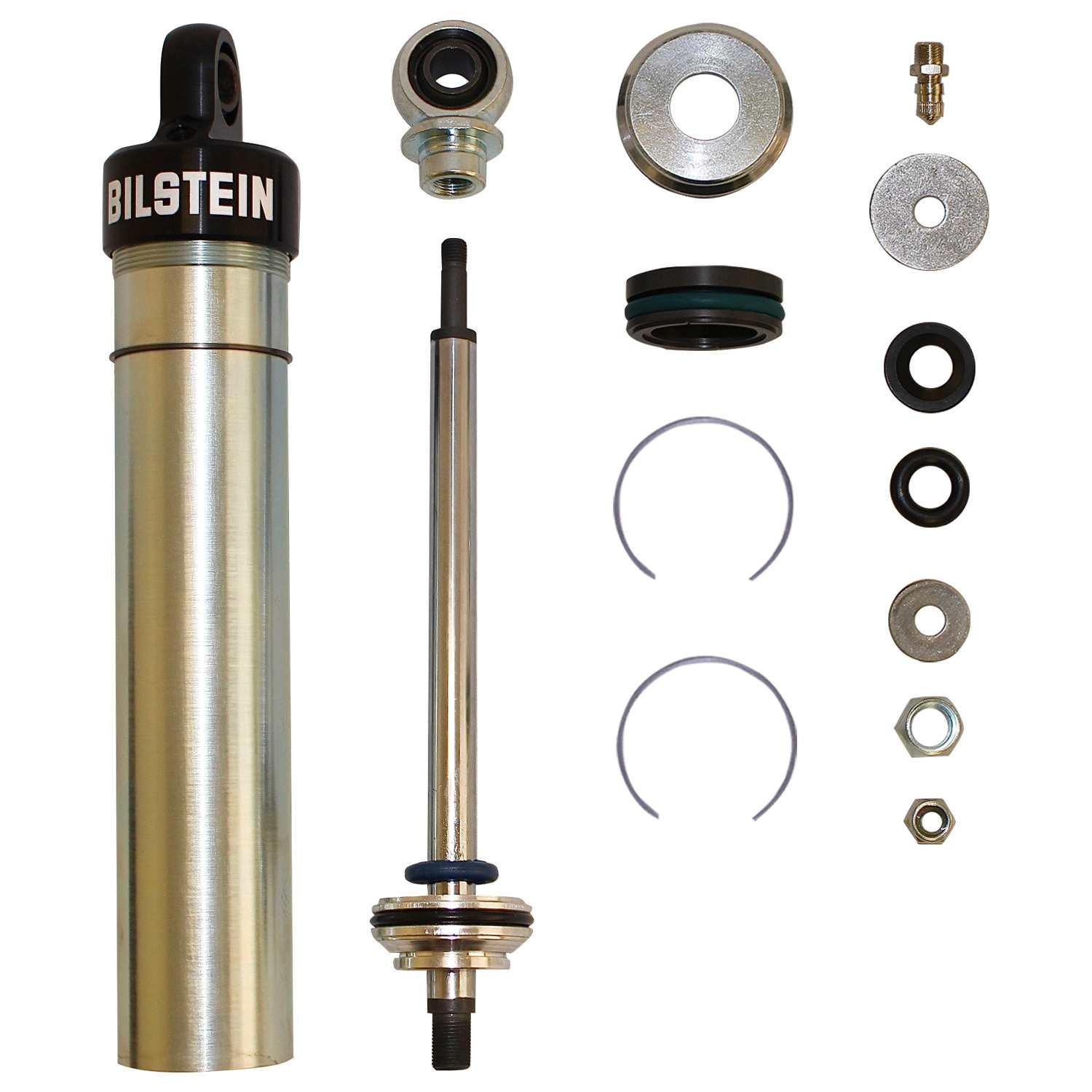

SN2 Series - Suspension Shock Absorber - Bilstein - 33-316437

Bilstein SN2 Series shock absorbers feature a steel smooth body design utilizing the 46mm monotube technology (piston and piston band sold separately) designed for motorsports applications. These shock absorbers are available in non- single and double adjustable configurations in optimized lengths and can also be converted to a coilover design (kit sold separately). SN2 Series shock absorbers are ideal for racers whose sanctioning rules require steel body shock absorbers but allow for a user rebuildable design and aluminum end caps.Plated steel body for durability and superior heat dissipation; 46mm piston design for maximum damping control; Standard 1/2- graphite heims
Adjustable Damping: Non-Adjustable
Body Design: Smooth Body Screw Top (Non-coilover)
Body Material: Steel
Boot Included: No
Collapsed Length (IN): 12.00
Collapsed Length (MM): 304.8
Extended Length (IN): 17.81
Extended Length (MM): 452.3
FAB: Plated steel body for durability and superior heat dissipation
FAB: Standard 1/2- graphite heims
FAB: 46mm piston design for maximum damping control
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: 1/2in Heim
PartType: Shocks / Struts
Piston Diameter: 46mm
Piston Type: Sold Separately
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Segment: Motorsports
Series: SN2 Series
Shaft Diameter: 14mm
Spring Seat Included: No
Stroke/Travel Length (IN): 5.81
Stroke/Travel Length (mm): 147.6
Title: Bilstein Shock Absorbers
Upper Mount Type: 1/2in Heim
