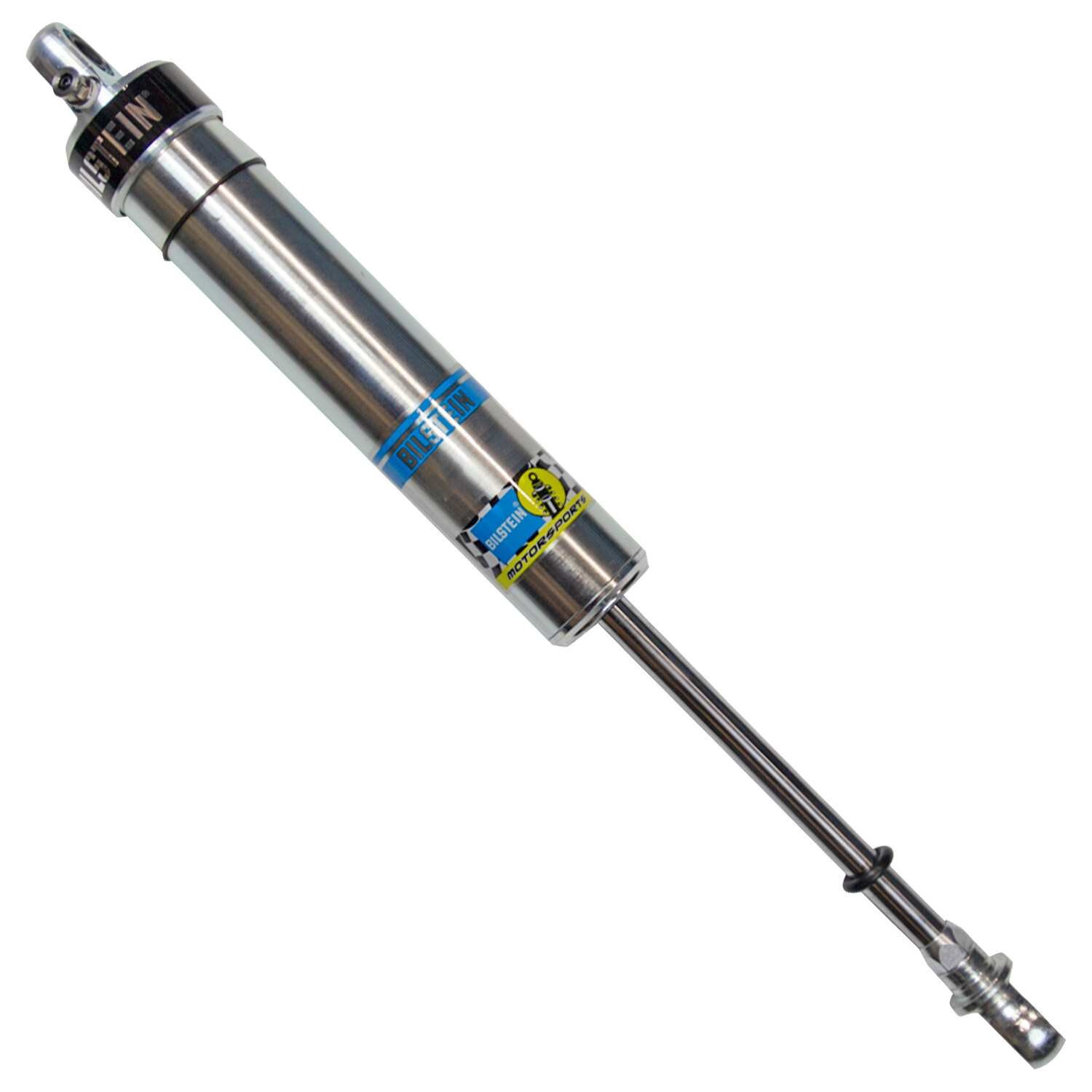

SNS2 Series - Suspension Shock Absorber - Bilstein - 33-304052

Bilstein SNS2 Series shock absorbers feature a steel smooth body design utilizing the 46mm monotube technology (piston and piston band sold separately) designed for motorsports applications. These shock absorbers feature a steel body cap and a Schrader valve or fill plug. They are upgradeable to adjustable shafts and can be converted to a coilover (kit sold separately). SNS2 Series shock absorbers are ideal for racers whose sanctioning rules require an all steel construction with rebuild capability.Plated steel body for durability and superior heat dissipation; 46mm piston design for maximum damping control; Standard 1/2- graphite heims
Adjustable Damping: Non-Adjustable
Body Design: Smooth Body Screw Top (Non-coilover)
Body Material: Steel
Boot Included: No
Collapsed Length (IN): 12.99
Collapsed Length (MM): 330.0
Extended Length (IN): 19.80
Extended Length (MM): 503.0
FAB: Plated steel body for durability and superior heat dissipation
FAB: Standard 1/2- graphite heims
FAB: 46mm piston design for maximum damping control
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: 1/2in Heim
PartType: Shocks / Struts
Piston Diameter: 46mm
Piston Type: Digressive
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Segment: Motorsports
Series: SNS2 Series
Shaft Diameter: 14mm
Spring Hardware: B4-BOA-0000117
Spring Seat Included: No
Stroke/Travel Length (IN): 6.81
Stroke/Travel Length (mm): 173.0
Title: Bilstein Shock Absorbers
Upper Mount Type: 1/2in Heim
