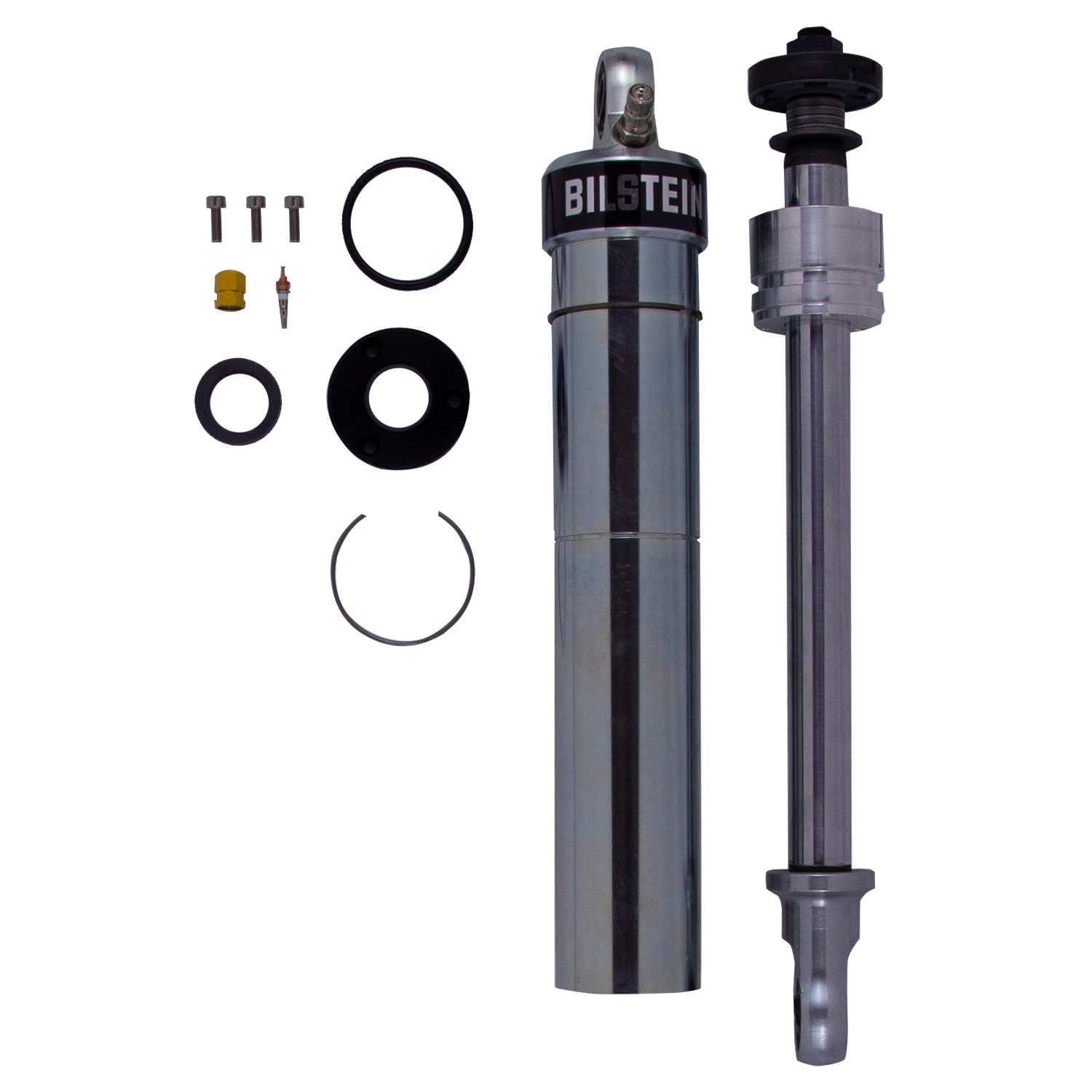

EM46 Series - Suspension Shock Absorber - Bilstein - 33-286877

Bilstein EM46 Series shock absorbers are emulsion dampers that feature an all-steel smooth body construction and 46mm piston for motorsports applications. The shock absorbers also include a large 22mm shaft severe duty 3 stage high temperature rod seal and can convert to coilover usage (kit sold separately). EM46 Series shock absorbers are ideal for racers looking for a rebuildable shock with the ability to create and fine tune spring rate as a replacement or supplement for suspension springs.Utilizes emulsion technology to regulate spring rate characteristics through variation of oil and nitrogen volume for limitless tuning combinations; Smooth zinc plated OD body design allows for optional standard and coilover applications; 22mm case hardened centerless ground chrome shaft provides optimal displacement brute tensile strength and resists chipping and scratching
Adjustable Damping: Non-Adjustable
Body Design: Smooth Body Screw Top (Non-coilover)
Body Material: Steel
Boot Included: No
Collapsed Length (IN): 14.15
Collapsed Length (MM): 359.3
Extended Length (IN): 22.16
Extended Length (MM): 562.8
FAB: Utilizes emulsion technology to regulate spring rate characteristics through variation of oil and nitrogen volume for limitless tuning combinations
FAB: 22mm case hardened centerless ground chrome shaft provides optimal displacement brute tensile strength and resists chipping and scratching
FAB: Smooth zinc plated OD body design allows for optional standard and coilover applications
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: 1/2in Heim
PartType: Shocks / Struts
Piston Diameter: 46mm
Piston Type: Digressive
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Segment: Motorsports
Series: EM46 Series
Shaft Diameter: 22mm
Spring Hardware: B4-BOA-0000117
Spring Seat Included: No
Stroke/Travel Length (IN): 8.00
Stroke/Travel Length (mm): 203.2
Title: Bilstein Shock Absorbers
Upper Mount Type: 1/2in Heim
