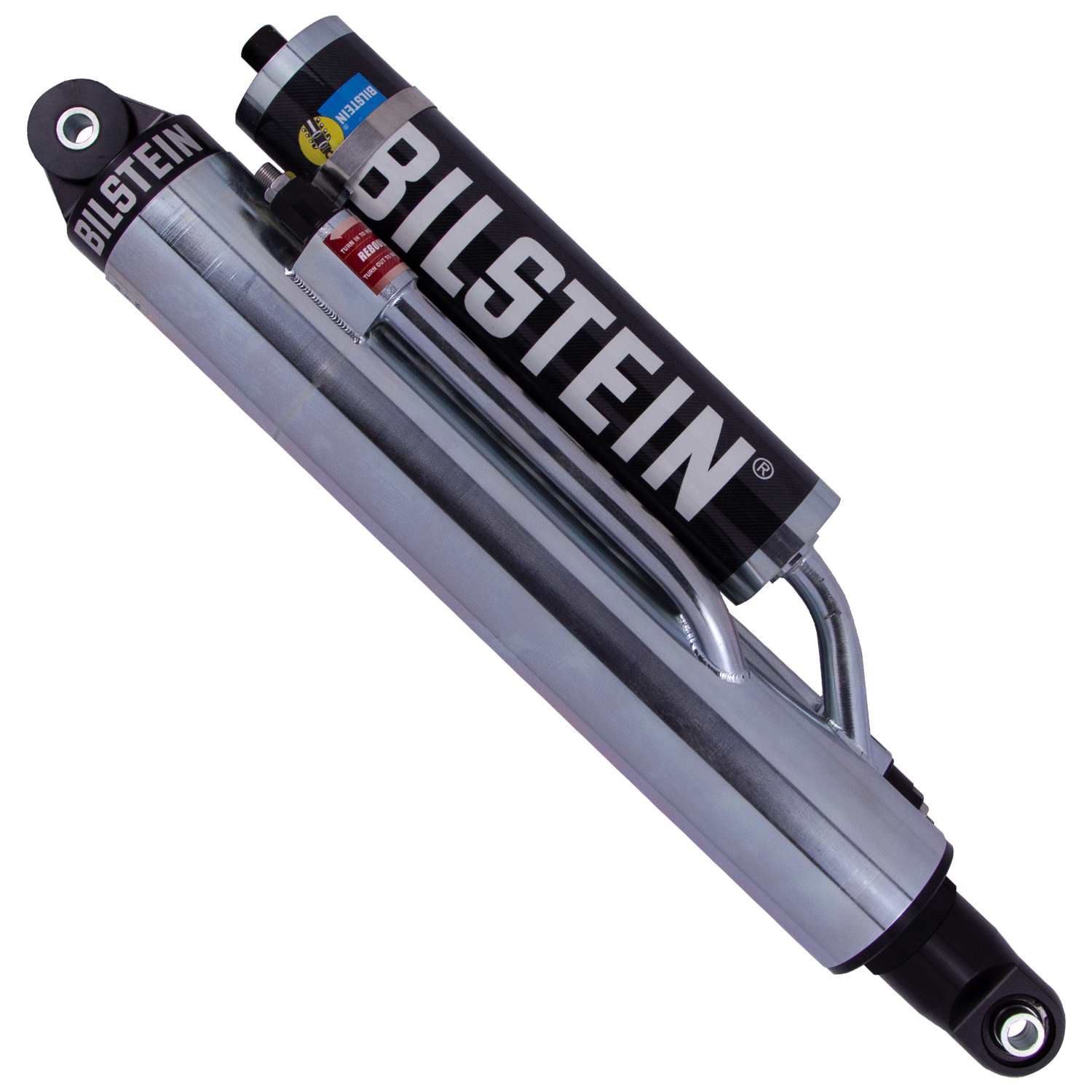

M 9200 (Bypass) - Suspension Shock Absorber - Bilstein - 33-250649

Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.Available in 60mm 70mm and 83mm monotubes; 4-tube position sensitive with adjustable rebound and compression; Multiple stroke lengths available ranging from 8" to 18"
Body Design: 3-Tube Bypass Screw Top
Boot Included: N/A
Collapsed Length (IN): 21.50
Collapsed Length (MM): 546.1
Compression @0.52m/s: Custom
Extended Length (IN): 33.50
Extended Length (MM): 850.9
FAB: Multiple stroke lengths available ranging from 8 inch to 18 inch
FAB: 4-tube position sensitive with adjustable rebound and compression
FAB: Available in 60mm 70mm and 83mm monotubes
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Eye .5x1.5in
Mount Type: Eye-to-Eye
Optional Reservoir Clamp: N/A
PartType: Shocks / Struts
Piston Diameter: 70mm
Position: Right
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Rebound @0.52m/s: Custom
Reservoir: Yes
Segment: Motorsports
Series: M 9200 (Bypass)
Shaft Diameter: 1-1/8 in.
Shaft Diameter (mm): 28.6
Spring Seat Included: No
Stroke/Travel Length (IN): 12.00
Stroke/Travel Length (mm): 304.8
Title: Bilstein Shock Absorbers
Upper Mount Type: Eye .5x1.5in
