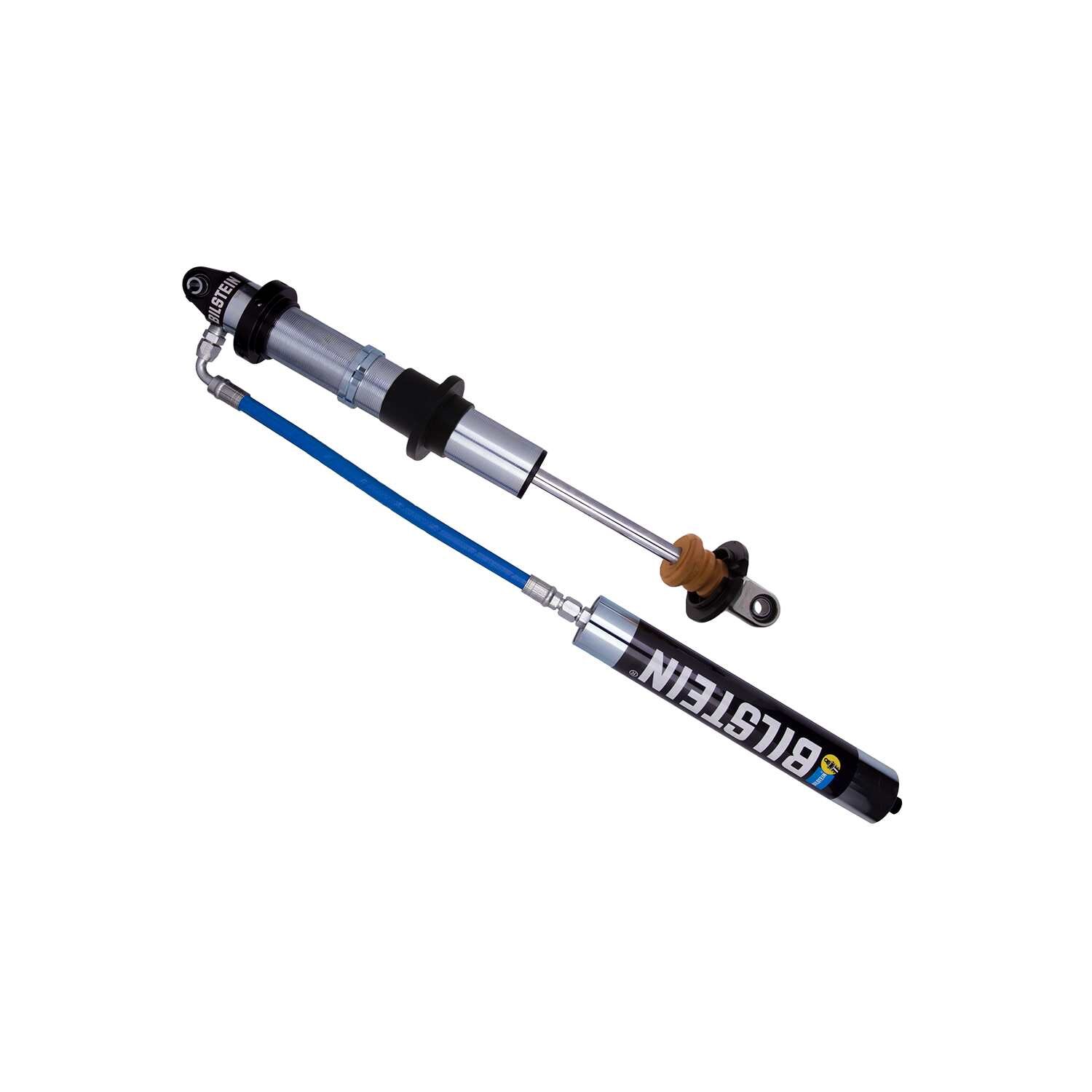

M 9200 (Coilover) - Suspension Shock Absorber - Bilstein - 33-244471

Bilstein M 9200 (Coilover) is designed specifically for professional off-road competition use which requires custom lengths and valve settings. M 9200 (Coilover) features a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard coilover springs. These coilovers are equipped with a 60mm ID remote reservoir and are owner rebuildable and revalvable. M 9200 (Coilover) offers the ability to efficiently adjust spring rates to achieve the optimum performance.Available in 46mm and 60mm monotubes; Threaded body with dual-rate coilover hardware; Multiple stroke lengths available ranging from 8" to 16"
Body Design: Threaded Body (Coilover)
Boot Included: N/A
Collapsed Length (IN): 19.50
Collapsed Length (MM): 495.3
Compression @0.52m/s: 1000
Extended Length (IN): 29.50
Extended Length (MM): 749.3
FAB: Available in 46mm and 60mm monotubes
FAB: Multiple stroke lengths available ranging from 8 inch to 16 inch
FAB: Threaded body with dual-rate coilover hardware
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Eye .5x1.5in
Mount Type: Eye-to-Eye
Optional Reservoir Clamp: N/A
PartType: Shocks / Struts
Piston Diameter: 60mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Rebound @0.52m/s: 2550
Reservoir: Yes
Segment: Motorsports
Series: M 9200 (Coilover)
Shaft Diameter (mm): 22.0
Spring Seat Included: No
Stroke/Travel Length (IN): 10.00
Stroke/Travel Length (mm): 254.0
Title: Bilstein Shock Absorbers
Upper Mount Type: Eye .5x1.5in
