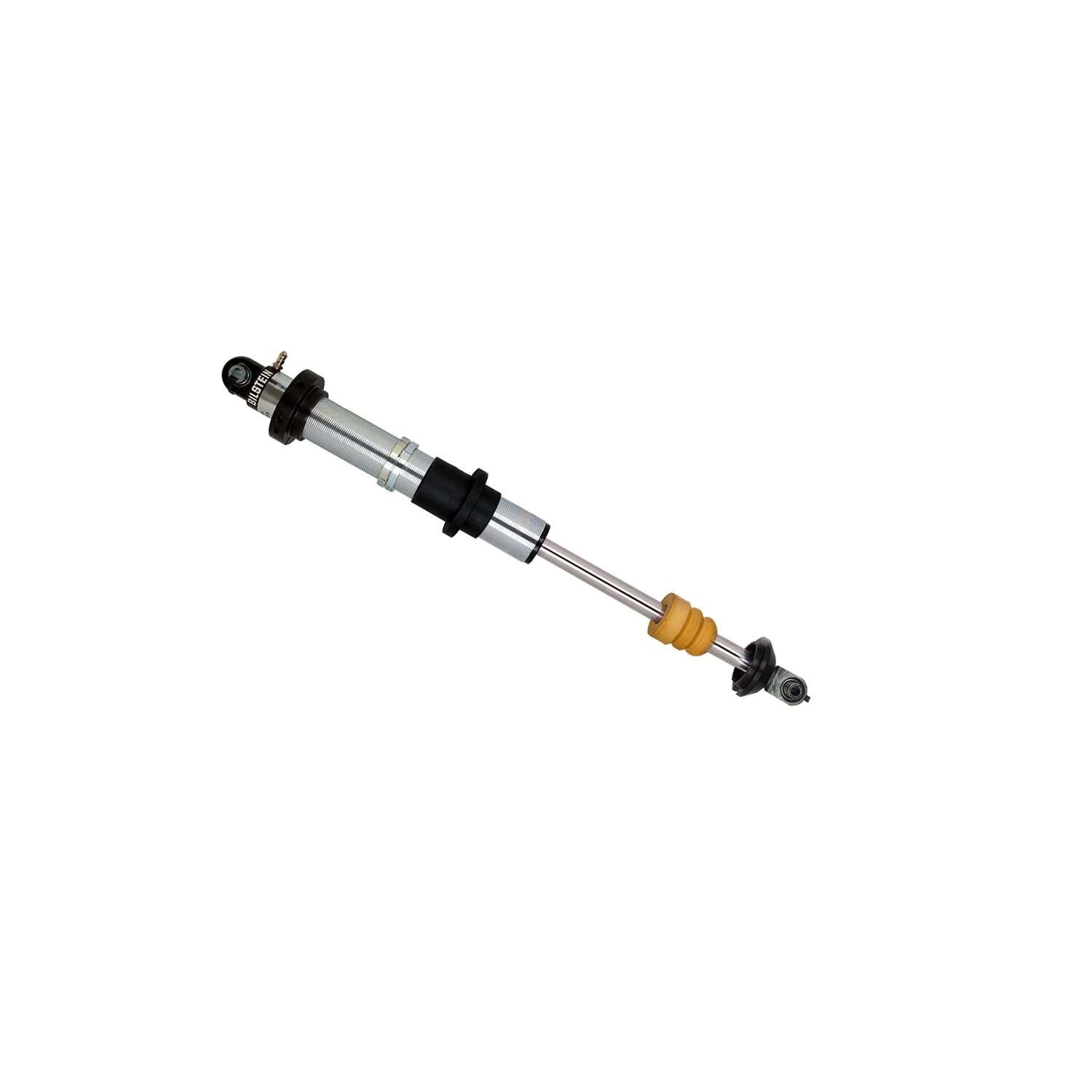

M 9200 (Coil Carrier) - Suspension Shock Absorber - Bilstein - 33-243535

Bilstein M 9200 (Coil Carrier) is designed specifically for professional off-road competition. M 9200 (Coil Carrier) utilize a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard 2.5 inch ID coilover springs. This coil carrier will not provide damping but will sustain the weight of the vehicle at the adjusted ride height. These coil carriers are sold by length and are for custom applications. M 9200 (Coil Carrier) offers the ability to efficiently adjust spring rates to achieve the optimum performance.46mm monotube design; Designed to hold the coils in place; To be used in conjunction with Bypass shocks
Body Design: Threaded Body (Coilover)
Boot Included: N/A
Collapsed Length (IN): 17.00
Collapsed Length (MM): 431.8
Compression @0.52m/s: Coil Carrier No Valving
Extended Length (IN): 27.00
Extended Length (MM): 685.8
FAB: 46mm monotube design
FAB: To be used in conjunction with Bypass shocks
FAB: Designed to hold the coils in place
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Eye .5x1.5in
Mount Type: Eye-to-Eye
Optional Reservoir Clamp: N/A
PartType: Shocks / Struts
Piston Diameter: 46mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Rebound @0.52m/s: Coil Carrier No Valving
Reservoir: Yes
Segment: Motorsports
Series: M 9200 (Coil Carrier)
Shaft Diameter (mm): 22.0
Spring Seat Included: No
Stroke/Travel Length (IN): 10.00
Stroke/Travel Length (mm): 254.0
Title: Bilstein Shock Absorbers
Upper Mount Type: Eye .5x1.5in
