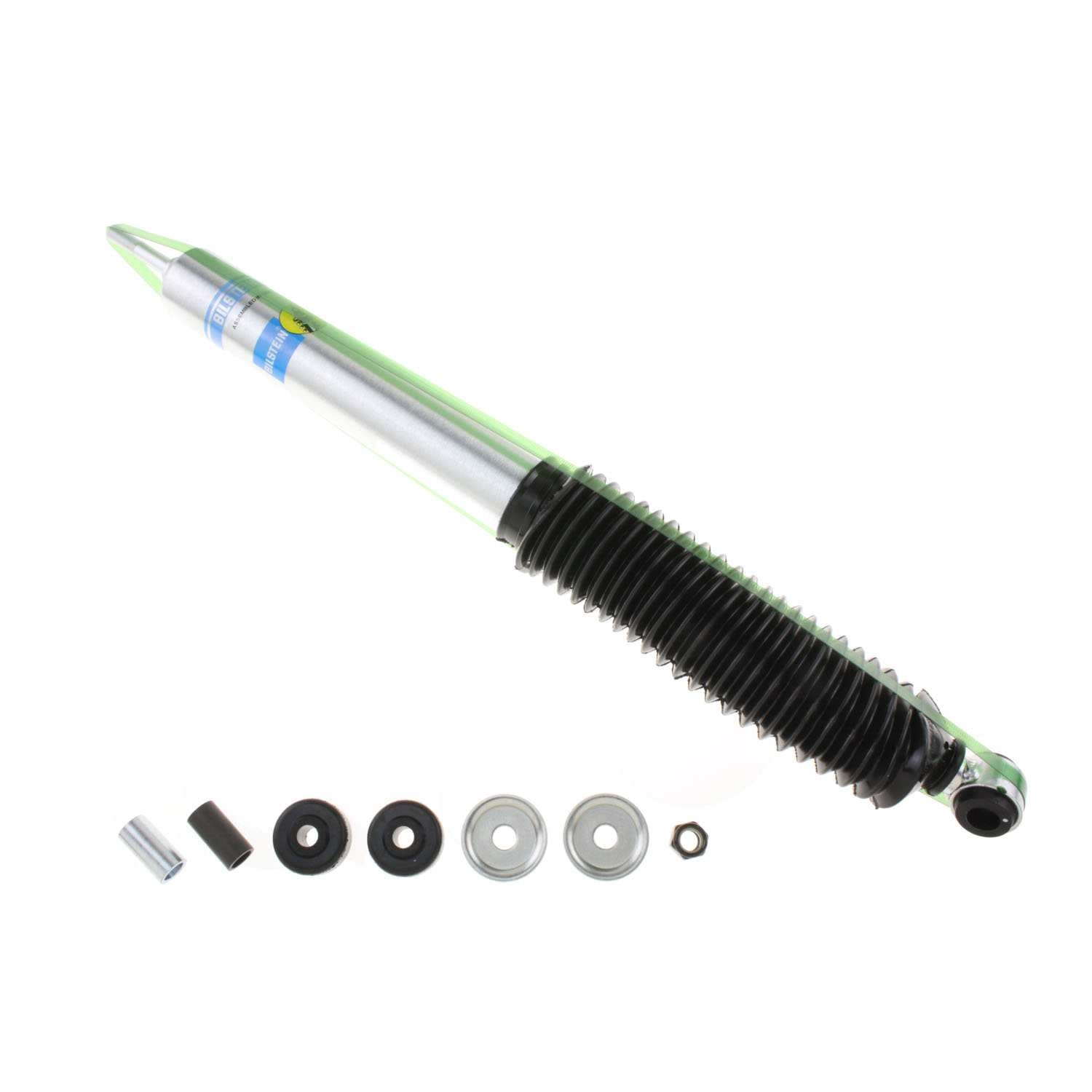

B8 5125 - Suspension Shock Absorber - Bilstein - 33-230368

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.46mm monotube design ensures consistent fade-free performance in all conditions; Patented digressive valving instantly reacts to changing surface conditions; Vehicle specific tuning
Adjustable Damping: Non-Adjustable
Body Design: Smooth Body (Non-Coilover)
Boot Included: Black Bellows
Collapsed Length (IN): 16.01
Collapsed Length (MM): 406.6
Compression @0.52m/s: 755
Extended Length (IN): 26.41
Extended Length (MM): 670.8
FAB: 46mm monotube design ensures consistent fade-free performance in all conditions
FAB: Vehicle specific tuning
FAB: Patented digressive valving instantly reacts to changing surface conditions
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Eye 5/8in
Mount Type: Stem-to-Eye
PartType: Shocks / Struts
Piston Diameter: 46mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Rebound @0.52m/s: 3775
Reservoir: No
Segment: Light Truck
Series: B8 5125
Shaft Diameter: 14mm
Spring Seat Included: No
Stroke/Travel Length (IN): 10.40
Stroke/Travel Length (mm): 264.2
Title: Bilstein Shock Absorbers
Upper Mount Type: Stem
