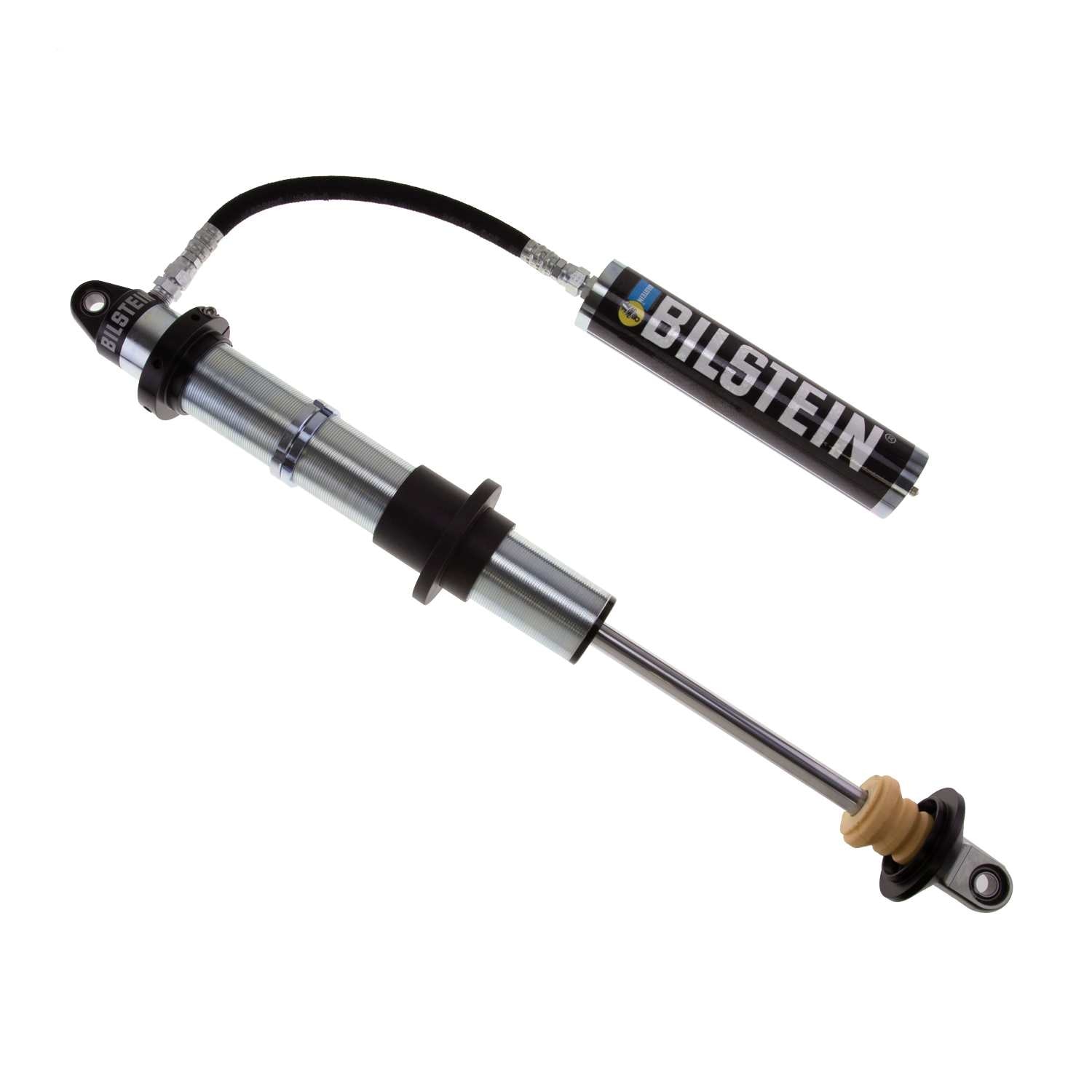

B8 8125 - Suspension Shock Absorber - Bilstein - 33-225616

Bilstein B8 8125 coilovers are engineered for the serious off-road enthusiast available in both 46mm (2 inch) and 60mm (2.65 inch) sizes. Designed for use with dual-rate springs and available in a wide range of travel lengths these performance coilovers are perfect for custom coilover suspension applications. Equipped with a competition designed 3-stage seal pack these coilovers withstand the harshest off-road environments. All B8 8125 coilovers include a 22mm hard chromed case hardened piston rod which provides exceptional tensile strength and resistance to sand blasting and rock chipping. Incorporated remote reservoir combined with a high-temp hose provides consistent fade free performance under conditions of intense heat. The zinc coated threaded body allows for quick ride height adjustments and spring changes. Bilstein B8 8125 coilovers are completely owner rebuildable with replacement parts available from Bilstein. All components are machined to precise tolerances and made in the USA to insure high quality.Available in 46mm and 60mm monotubes for consistent fade-free performance; Threaded body with dual-rate coilover hardware; Remote reservoir for greater resistance to heat and increased travel length
Body Design: Threaded Body Screw Top (Coilover)
Collapsed Length (IN): 21.50
Collapsed Length (MM): 546.1
Compression @0.52m/s: 1100
Extended Length (IN): 33.50
Extended Length (MM): 850.9
FAB: Available in 46mm and 60mm monotubes for consistent fade-free performance
FAB: Remote reservoir for greater resistance to heat and increased travel length
FAB: Threaded body with dual-rate coilover hardware
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Eye .5x1.5in
Mount Type: Eye-to-Eye
Optional Reservoir Clamp: B4-KT1-Z292A00
PartType: Shocks / Struts
Piston Diameter: 60mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Rebound @0.52m/s: 3700
Reservoir: Yes
Segment: Motorsports
Series: B8 8125
Shaft Diameter (mm): 22.0
Spring Seat Included: Yes
Stroke/Travel Length (IN): 12.00
Stroke/Travel Length (mm): 304.8
Title: Bilstein Shock Absorbers
Upper Mount Type: Eye .5x1.5in
