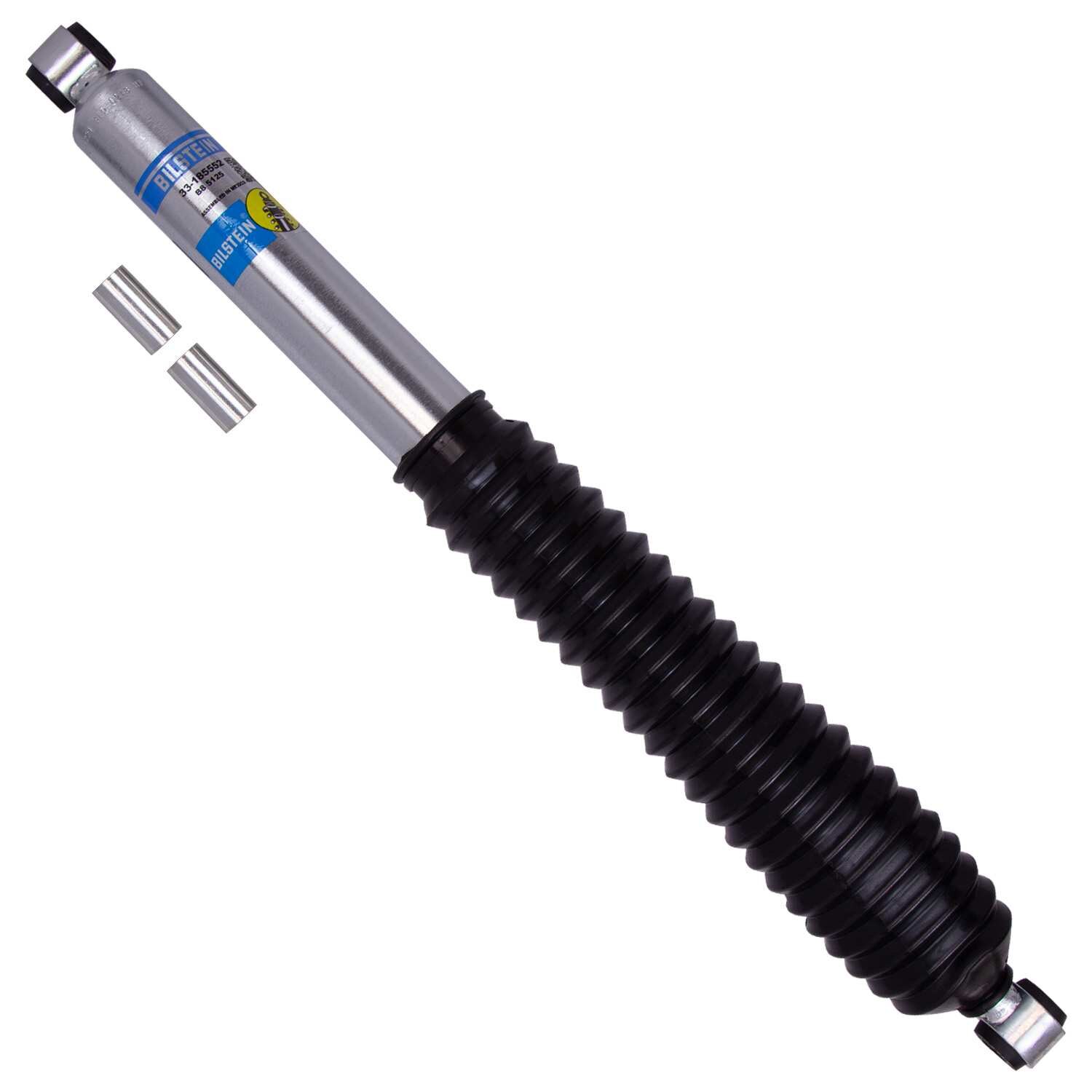

B8 5125 - Suspension Shock Absorber - Bilstein - 33-185552

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.46mm monotube design ensures consistent fade-free performance in all conditions; Patented digressive valving instantly reacts to changing surface conditions; Vehicle specific tuning
Adjustable Damping: Non-Adjustable
Body Design: Smooth Body (Non-Coilover)
Boot Included: Black Bellows
Collapsed Length (IN): 15.91
Collapsed Length (MM): 404.0
Compression @0.52m/s: 620
Extended Length (IN): 25.91
Extended Length (MM): 658.2
FAB: Patented digressive valving instantly reacts to changing surface conditions
FAB: 46mm monotube design ensures consistent fade-free performance in all conditions
FAB: Vehicle specific tuning
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Eye 5/8in
Mount Type: Eye-to-Eye
PartType: Shocks / Struts
Piston Diameter: 46mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Rebound @0.52m/s: 2495
Reservoir: No
Segment: Light Truck
Series: B8 5125
Shaft Diameter: 14mm
Spring Seat Included: No
Stroke/Travel Length (IN): 10.01
Stroke/Travel Length (mm): 254.3
Title: Bilstein Shock Absorbers
Upper Mount Type: Eye 5/8in

Detailed Fitment Results
Year Make Model Sub Model Position 1961 Toyota Land Cruiser Base Rear 1962 Toyota Land Cruiser Base Rear 1963 Toyota Land Cruiser Base Rear 1964 Toyota Land Cruiser Base Rear 1965 Toyota Land Cruiser Base Rear 1966 Toyota Land Cruiser Base Rear 1967 Toyota Land Cruiser Base Rear 1968 Toyota Land Cruiser Base Rear 1969 Toyota Land Cruiser Base Rear 1970 Toyota Land Cruiser Base Rear 1971 Toyota Land Cruiser Base Rear 1972 Toyota Land Cruiser Base Rear 1973 Toyota Land Cruiser Base Rear 1974 Toyota Land Cruiser Base Rear 1975 Toyota Land Cruiser Base Rear 1976 Toyota Land Cruiser Base Rear 1977 Toyota Land Cruiser Base Rear 1978 Toyota Land Cruiser Base Rear 1979 Toyota Land Cruiser Base Rear 1980 Toyota Land Cruiser Base Rear 1981 Toyota Land Cruiser Base Rear 1982 Toyota Land Cruiser Base Rear 1983 Toyota Land Cruiser Base Rear
