B8 5125 - Suspension Shock Absorber - Bilstein - 33-062518

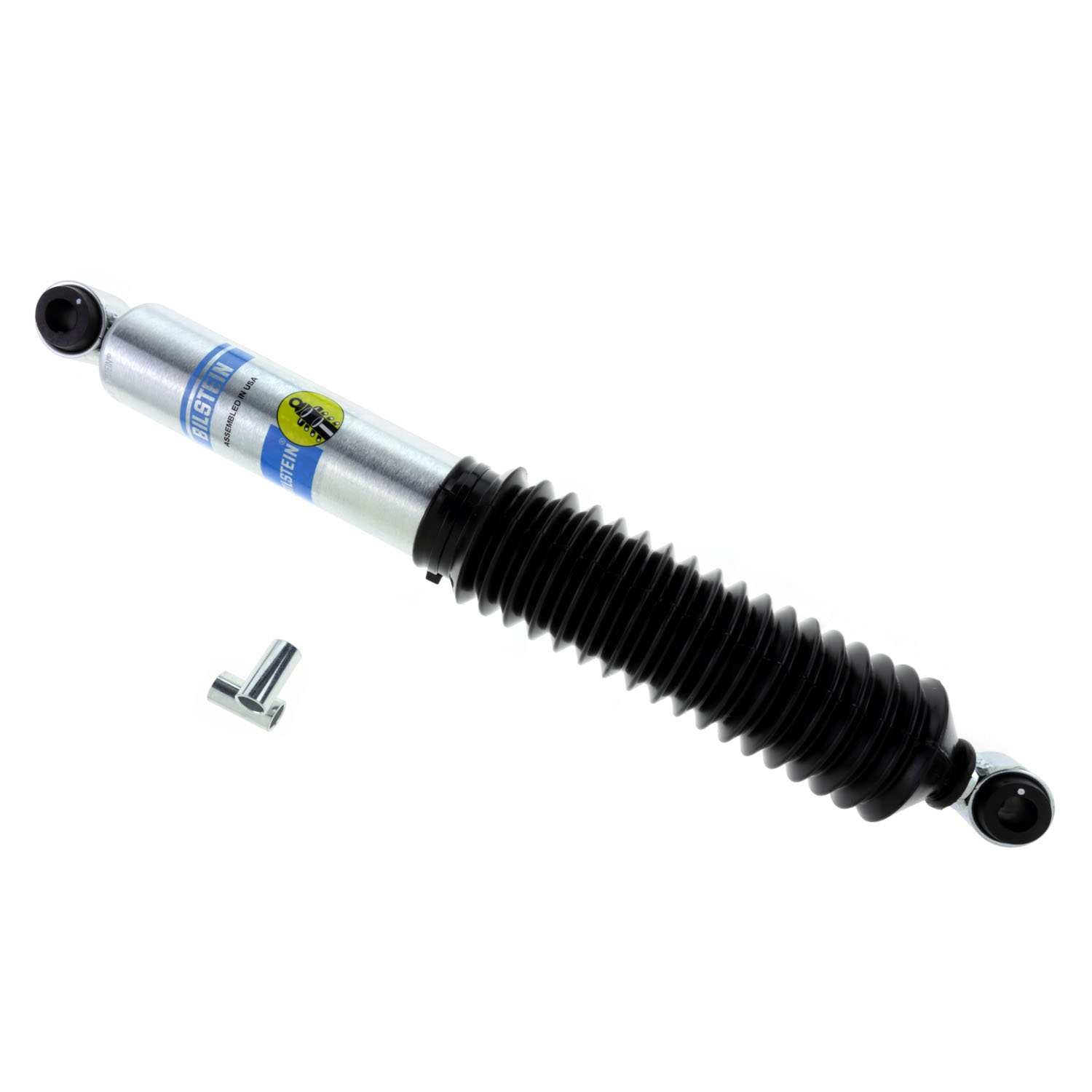

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.46mm monotube design ensures consistent fade-free performance in all conditions; Patented digressive valving instantly reacts to changing surface conditions; Vehicle specific tuning
Adjustable Damping: Non-Adjustable
Body Design: Smooth Body (Non-Coilover)
Boot Included: Black Bellows
Collapsed Length (IN): 12.07
Collapsed Length (MM): 306.5
Compression @0.52m/s: 620
Extended Length (IN): 18.53
Extended Length (MM): 470.7
FAB: 46mm monotube design ensures consistent fade-free performance in all conditions
FAB: Vehicle specific tuning
FAB: Patented digressive valving instantly reacts to changing surface conditions
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Eye 5/8in
Mount Type: Eye-to-Eye
PartType: Shocks / Struts
Piston Diameter: 46mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Rebound @0.52m/s: 2495
Reservoir: No
Segment: Light Truck
Series: B8 5125
Shaft Diameter: 14mm
Spring Seat Included: No
Stroke/Travel Length (IN): 6.46
Stroke/Travel Length (mm): 164.1
Title: Bilstein Shock Absorbers
Upper Mount Type: Eye 5/8in

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Position 1959 Jeep CJ5 Base Rear / Front 1960 Jeep CJ5 Base Rear / Front 1960 Toyota Land Cruiser Base Front 1961 Jeep CJ5 Base Rear / Front 1961 Toyota Land Cruiser Base Front 1962 Jeep CJ5 Base Rear / Front 1962 Toyota Land Cruiser Base Front 1963 Jeep CJ5 Base Rear / Front 1963 Toyota Land Cruiser Base Front 1964 Jeep CJ5 Base Rear / Front 1964 Toyota Land Cruiser Base Front 1965 Toyota Land Cruiser Base Front 1965 Jeep CJ5 Base Rear / Front 1966 Jeep CJ5 Base Rear / Front 1966 Toyota Land Cruiser Base Front 1967 Jeep CJ5 Base Rear / Front 1967 Toyota Land Cruiser Base Front 1968 Jeep CJ5 Base Rear / Front 1968 Toyota Land Cruiser Base Front 1969 Jeep CJ5 Base Rear / Front 1969 Toyota Land Cruiser Base Front 1970 Jeep CJ5 Base Rear / Front 1970 Toyota Land Cruiser Base Front 1971 Jeep CJ5 Base Rear / Front 1971 Toyota Land Cruiser Base Front 1972 Jeep CJ5 Base Rear / Front 1972 Toyota Land Cruiser Base Front 1973 Jeep CJ5 Base Rear / Front 1973 Toyota Land Cruiser Base Front 1974 Jeep CJ5 Base Rear / Front 1974 Toyota Land Cruiser Base Front 1975 Jeep CJ5 Renegade / Base Rear / Front 1975 Toyota Land Cruiser Base Front 1976 Toyota Land Cruiser Base Front 1977 Toyota Land Cruiser Base Front 1978 Toyota Land Cruiser Base Front 1979 Toyota Land Cruiser Base Front 1980 Toyota Land Cruiser Base Front 1981 Toyota Land Cruiser Base Front 1982 Toyota Land Cruiser Base Front
