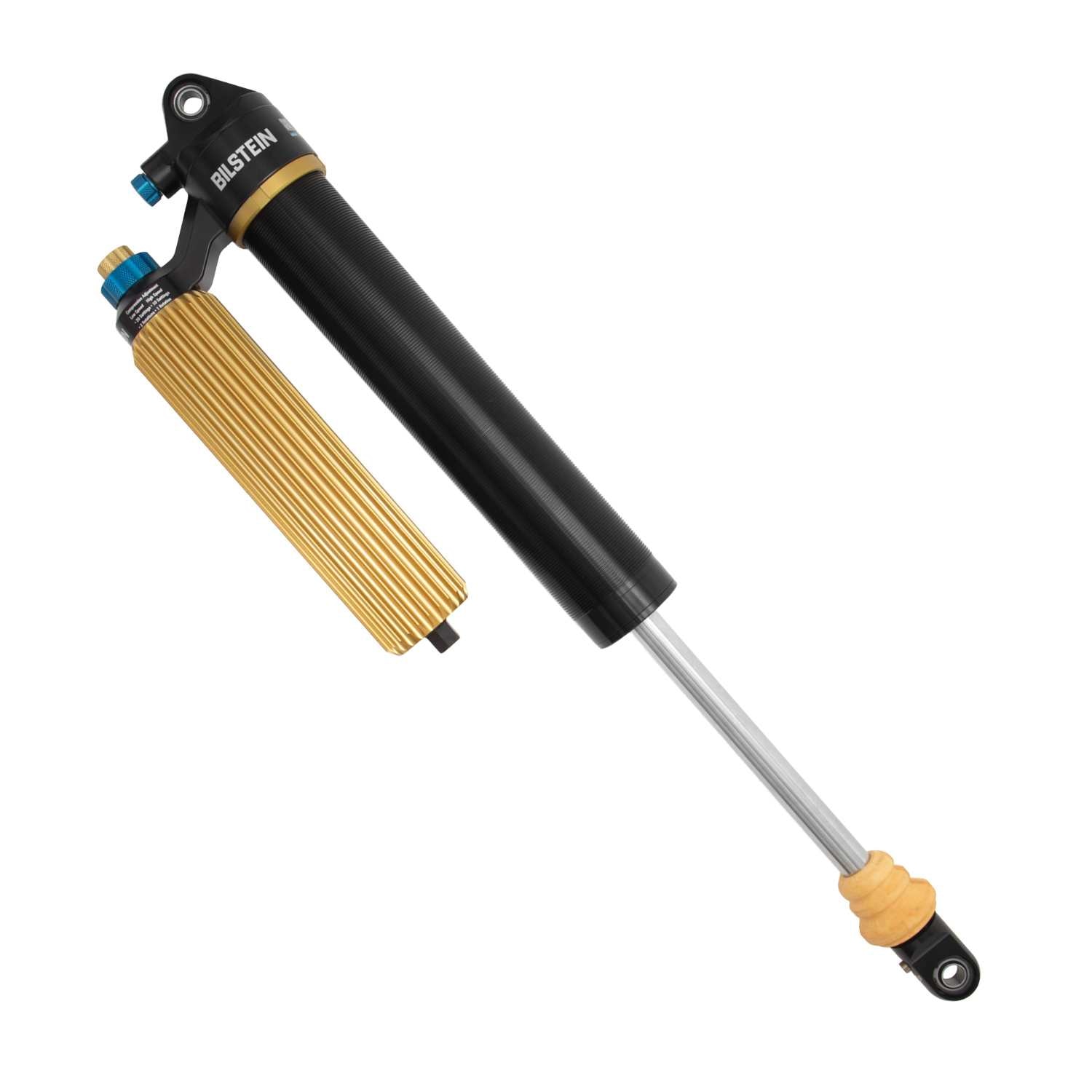

M 9400 (Coilover) Black Hawk Series - Suspension Shock Absorber - Bilstein - 25-343847

Bilstein M 9400 (Coilover) Black Hawk shock absorbers are built to dominate off-road terrain with race-proven performance and precision tuning. Featuring 4-way adjustability and multiple stroke lengths these universal coilovers adapt to a wide range of UTV and off-road setups. At the core is Bilstein-™s patented ZoneControl technology-”five independently tuned damping zones (3 compression 2 rebound) with an internal Jounce Cut Off (JCO) and Rebound Cut Off (RCO) for bottom-out and droop control-”no limit straps needed. The JCO acts as a two-stage hydraulic bump stop and includes a 10 position adjustment for fine tuning the bottom out control. The RCO engages in the final stage of droop to give more control and protect the damper. 9400 Black Hawk Powersports dampers provide 4 unique external adjustments that are easily accessible; high/low speed compression rebound and JCO. Crafted from lightweight aluminum with gold-finned reservoirs these coilovers are fully serviceable and track-ready out of the box. Springs and coilover hardware sold separately for custom comfort and performance. Upgrade your offroad or UTV experience with Bilstein-™s unique -œbottomless- ride on the 9400 Black Hawk Powersports universal coilover dampersOne piece 6061 extruded aluminum body with hard anodized finish; 30% faster heat dissipation; 10% - 25% lighter than similar welded bypass steel shocks
Additional Components: Requires use of coilspring hardware kit 13-360054
Adjustable Damping: 4-Way Adjustable - High and Low Speed Compression Rebound JCO-Jounce Cut-Off (Hydraulic Bump)
Body Design: Threaded Body (Coilover)
Body Material: Aluminum alloy
Boot Included: No
Collapsed Length (IN): 22.12
Collapsed Length (mm): 561.9
Extended Length (IN): 34.10
Extended Length (mm): 866.2
FAB: One piece 6061 extruded aluminum body with hard anodized finish
FAB: 10% - 25% lighter than similar welded bypass steel shocks
FAB: 30% faster heat dissipation
Finish: Type III Hard Anodized
Heim Spacer Kit: B4-KT1-Z241A07
Internal Design: Monotube
Lower Mount Type: Eye 5/8in
Mount Type: Eye-to-Eye
Optional Reservoir Clamp: N/A
PartType: Shocks / Struts
Piston Diameter: 70mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reservoir: Yes
Segment: Motorsports
Series: M 9400 Black Hawk
Shaft Diameter (mm): 25.4
Spring Hardware: 13-360054
Spring Seat Included: No
Title: Bilstein Shock Absorbers
Upper Mount Type: Eye 5/8in
