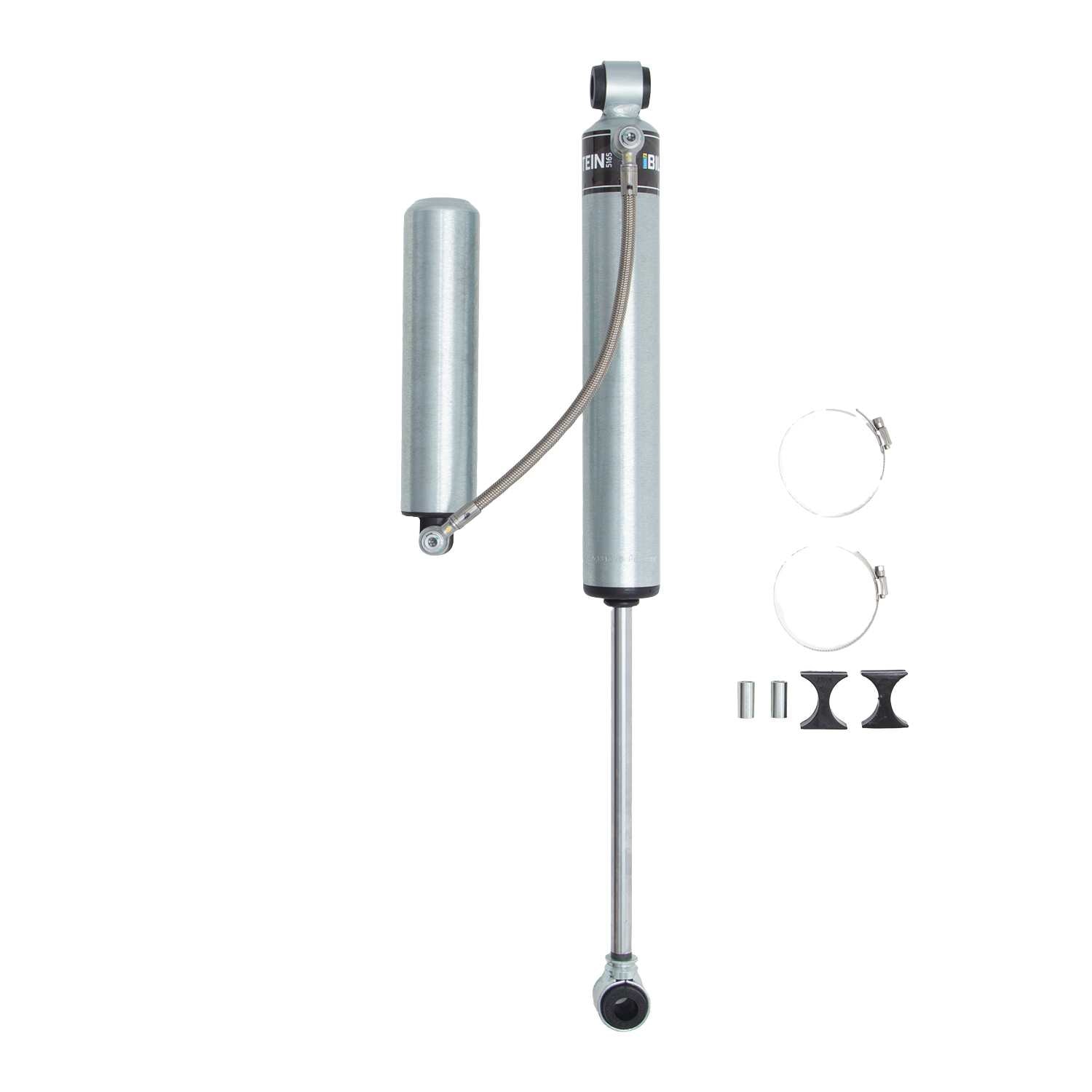

B8 5165 - Suspension Shock Absorber - Bilstein - 25-331806

Bilstein B8 5165 remote reservoir shock absorbers are designed to be used on custom off-road vehicles in order to achieve the desired ride of your light truck or SUV. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom applications. All B8 5165 shock absorbers come equipped with 5/8 inch eyelets with hour glass bushings on both ends. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting providing a clean low profile installation. B8 5165 remote reservoir shock absorbers will increase overall durability of your custom vehicle allowing you to conquer the harshest of off-road environments.46mm monotube design ensures consistent fade-free performance in all conditions; Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control; Remote reservoir increases shock oil capacity for greater heat dissipation
Adjustable Damping: Non-Adjustable
Body Design: Smooth Body (Non-Coilover)
Boot Included: No
Collapsed Length (IN): 14.21
Collapsed Length (MM): 361.0
Compression @0.52m/s: 620
Extended Length (IN): 23.63
Extended Length (MM): 600.2
FAB: 46mm monotube design ensures consistent fade-free performance in all conditions
FAB: Remote reservoir increases shock oil capacity for greater heat dissipation
FAB: Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Eye 5/8in
Mount Type: Eye-to-Eye
Optional Reservoir Clamp: 11-176015
PartType: Shocks / Struts
Piston Diameter: 46mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Rebound @0.52m/s: 2495
Reservoir: Yes
Segment: Light Truck
Series: B8 5165
Shaft Diameter: 14mm
Spring Seat Included: No
Stroke/Travel Length (IN): 9.42
Stroke/Travel Length (mm): 239.3
Title: Bilstein Shock Absorbers
Upper Mount Type: Eye 5/8in
