B8 8100 (DSA) - Suspension Shock Absorber - Bilstein - 25-328929

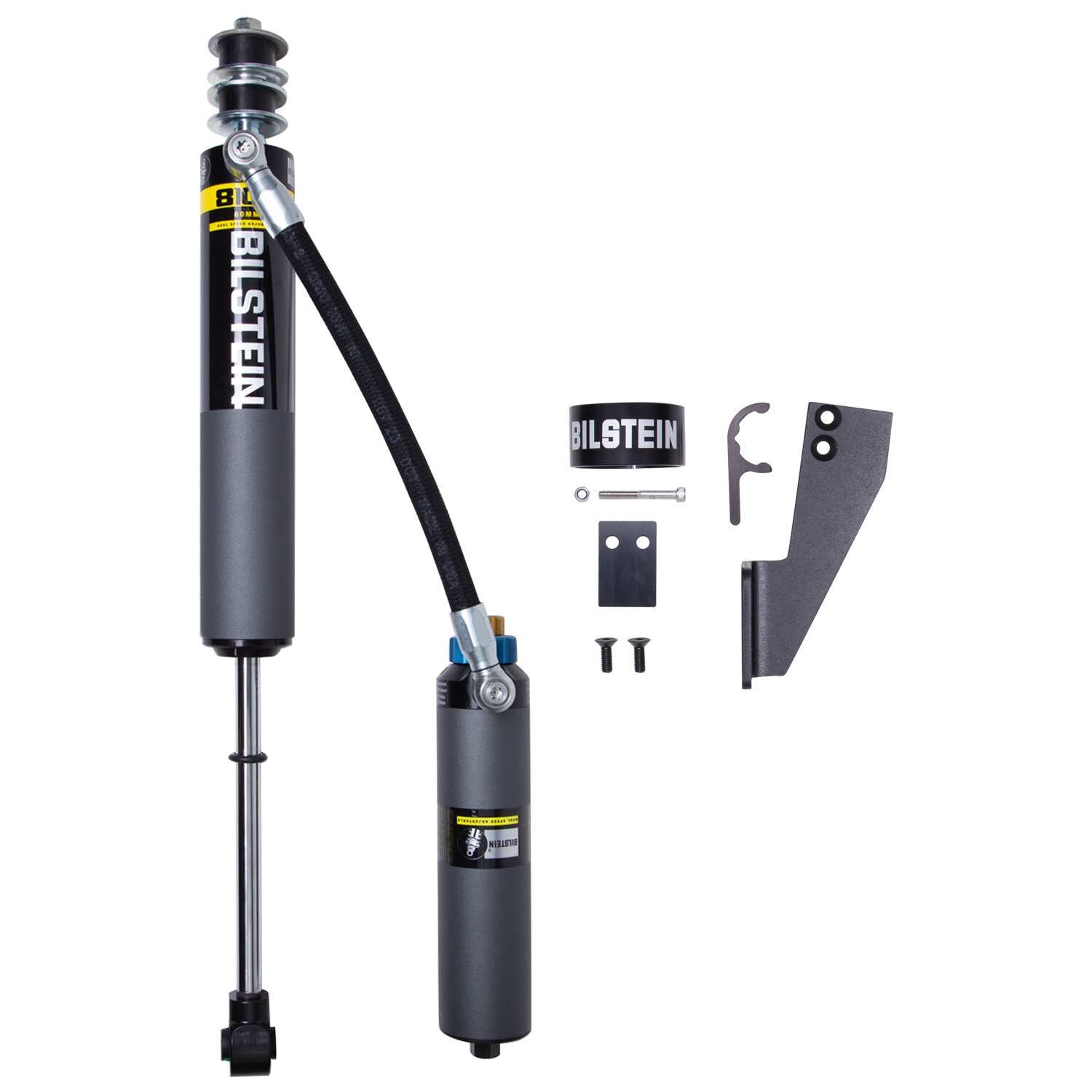

The Bilstein B8 8100 (DSA) reservoir shock absorber is an adjustable large bore 60mm (2.65" OD) direct fit solution for lifted trucks and SUVs. Constructed from aerospace quality billet components the large 60mm ID shock body offers a higher oil volume capacity to control heat while tackling rough road surfaces over long distances. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression to tailor your ride to any surface. Each B8 8100 (DSA) offers a unique remote or piggyback reservoir solution for an easy hassle free installation. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. The large 60mm piston design offers more comfort and control in all driving conditions. The Bilstein B8 8100 (DSA) will allow you to tame the terrain in comfort.60mm large bore digressive piston offers a greater range of tunability and delivers exceptional comfort without sacrificing control; Direct fit for an easy installation; Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression to tailor your ride to any surface
Adjustable Damping: Click Adjusters for High and Low Speed Compression
Body Design: Smooth Body (Non-Coilover)
Boot Included: No
Collapsed Length (IN): 15.60
Collapsed Length (MM): 397.0
Extended Length (IN): 25.12
Extended Length (MM): 638.0
FAB: 60mm large bore digressive piston offers a greater range of tunability and delivers exceptional comfort without sacrificing control
FAB: Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression to tailor your ride to any surface
FAB: Direct fit for an easy installation
Finish: EVO Grey
Internal Design: Monotube
Lower Mount Type: Eye 12.4mm
PartType: Shocks / Struts
Piston Diameter: 60mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reservoir: Yes
Segment: Light Truck
Series: B8 8100 (DSA)
Shaft Diameter: 18mm
Spring Seat Included: No
Title: Bilstein Shock Absorbers
Upper Mount Type: Stem

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Position 2007 Toyota Tundra SR5 / Limited / Base Rear Right 2008 Toyota Tundra SR5 / Limited / Base Rear Right 2009 Toyota Tundra SR5 / Limited / Base Rear Right 2010 Toyota Tundra SR5 / Platinum / Limited / Base Rear Right 2011 Toyota Tundra SR5 / Platinum / Limited / Base Rear Right 2012 Toyota Tundra Platinum / Limited / Base Rear Right 2013 Toyota Tundra Platinum / Limited / Base Rear Right 2014 Toyota Tundra SR5 / SR / Platinum / Limited / 1794 Edition Rear Right 2015 Toyota Tundra TRD Pro / SR5 / SR / Platinum / Limited / 1794 Edition Rear Right 2016 Toyota Tundra TRD Pro / SR5 / SR / Platinum / Limited / 1794 Edition Rear Right 2017 Toyota Tundra TRD Pro / SR5 / SR / Platinum / Limited / 1794 Edition Rear Right 2018 Toyota Tundra SR5 / SR / Platinum / Limited / 1794 Edition Rear Right 2019 Toyota Tundra TRD Pro / SR5 / SR / Platinum / Limited / 1794 Edition Rear Right 2020 Toyota Tundra TRD Pro / SR5 / SR / Platinum / Limited / 1794 Edition Rear Right 2021 Toyota Tundra Trail / TRD Pro / SR5 / SR / Platinum / Nightshade / Limited / 1794 Edition Rear Right
