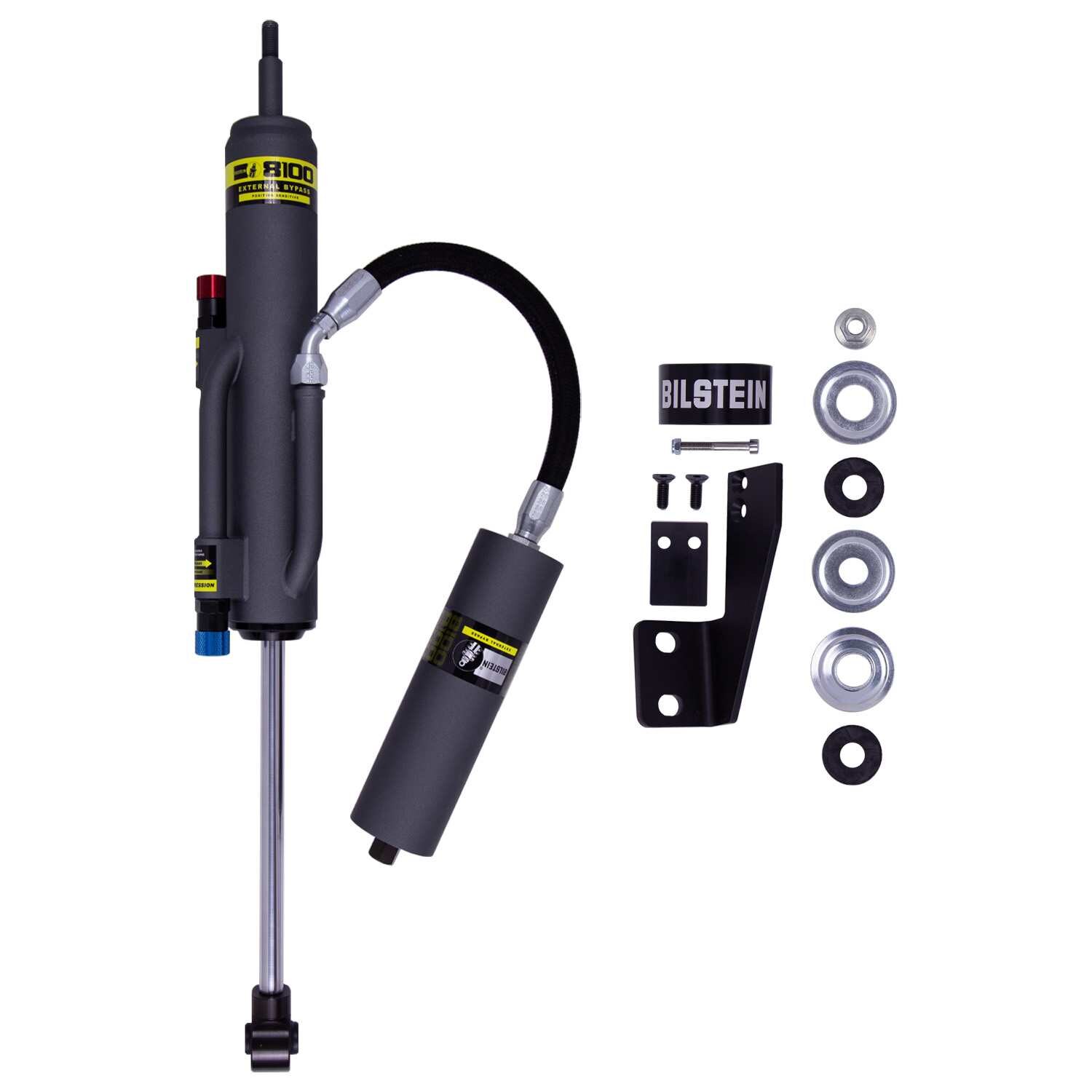

B8 8100 (Bypass) - Suspension Shock Absorber - Bilstein - 25-326048

Bilstein B8 8100 (Bypass) is a direct fit position sensitive damper for light trucks and SUV-™s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature -œIncremental Flow- bypass adjusters allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose remote reservoir exit port delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience offering unparalleled ride comfort and incredible bottom out control.Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression; Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments; 60mm large bore hard anodized aluminum piston offers a greater range of damping control and delivers exceptional long-term durability
Adjustable Damping: Double Adjustable Compression and Rebound with Click Adjuster Knobs
Body Design: Bypass Body (Non-Coilover)
Boot Included: No
Collapsed Length (IN): 15.75
Collapsed Length (MM): 400.0
Extended Length (IN): 25.88
Extended Length (MM): 657.4
FAB: 60mm large bore hard anodized aluminum piston offers a greater range of damping control and delivers exceptional long-term durability
FAB: Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments
FAB: Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression
Finish: EVO Grey
Internal Design: Monotube
Lower Mount Type: Eye 12.4mm
PartType: Shocks / Struts
Piston Diameter: 60mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reservoir: Yes
Segment: Light Truck
Series: B8 8100 (Bypass)
Shaft Diameter: 18mm
Spring Seat Included: No
Title: Bilstein Shock Absorbers
Upper Mount Type: Stem

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Position 2007 Toyota Tundra SR5 / Limited / Base Rear Left 2008 Toyota Tundra SR5 / Limited / Base Rear Left 2009 Toyota Tundra SR5 / Limited / Base Rear Left 2010 Toyota Tundra SR5 / Platinum / Limited / Base Rear Left 2011 Toyota Tundra SR5 / Platinum / Limited / Base Rear Left 2012 Toyota Tundra Platinum / Limited / Base Rear Left 2013 Toyota Tundra Platinum / Limited / Base Rear Left 2014 Toyota Tundra SR5 / SR / Platinum / Limited / 1794 Edition Rear Left 2015 Toyota Tundra TRD Pro / SR5 / SR / Platinum / Limited / 1794 Edition Rear Left 2016 Toyota Tundra TRD Pro / SR5 / SR / Platinum / Limited / 1794 Edition Rear Left 2017 Toyota Tundra TRD Pro / SR5 / SR / Platinum / Limited / 1794 Edition Rear Left 2018 Toyota Tundra SR5 / SR / Platinum / Limited / 1794 Edition Rear Left 2019 Toyota Tundra TRD Pro / SR5 / SR / Platinum / Limited / 1794 Edition Rear Left 2020 Toyota Tundra TRD Pro / SR5 / SR / Platinum / Limited / 1794 Edition Rear Left 2021 Toyota Tundra Trail / TRD Pro / SR5 / SR / Platinum / Nightshade / Limited / 1794 Edition Rear Left
