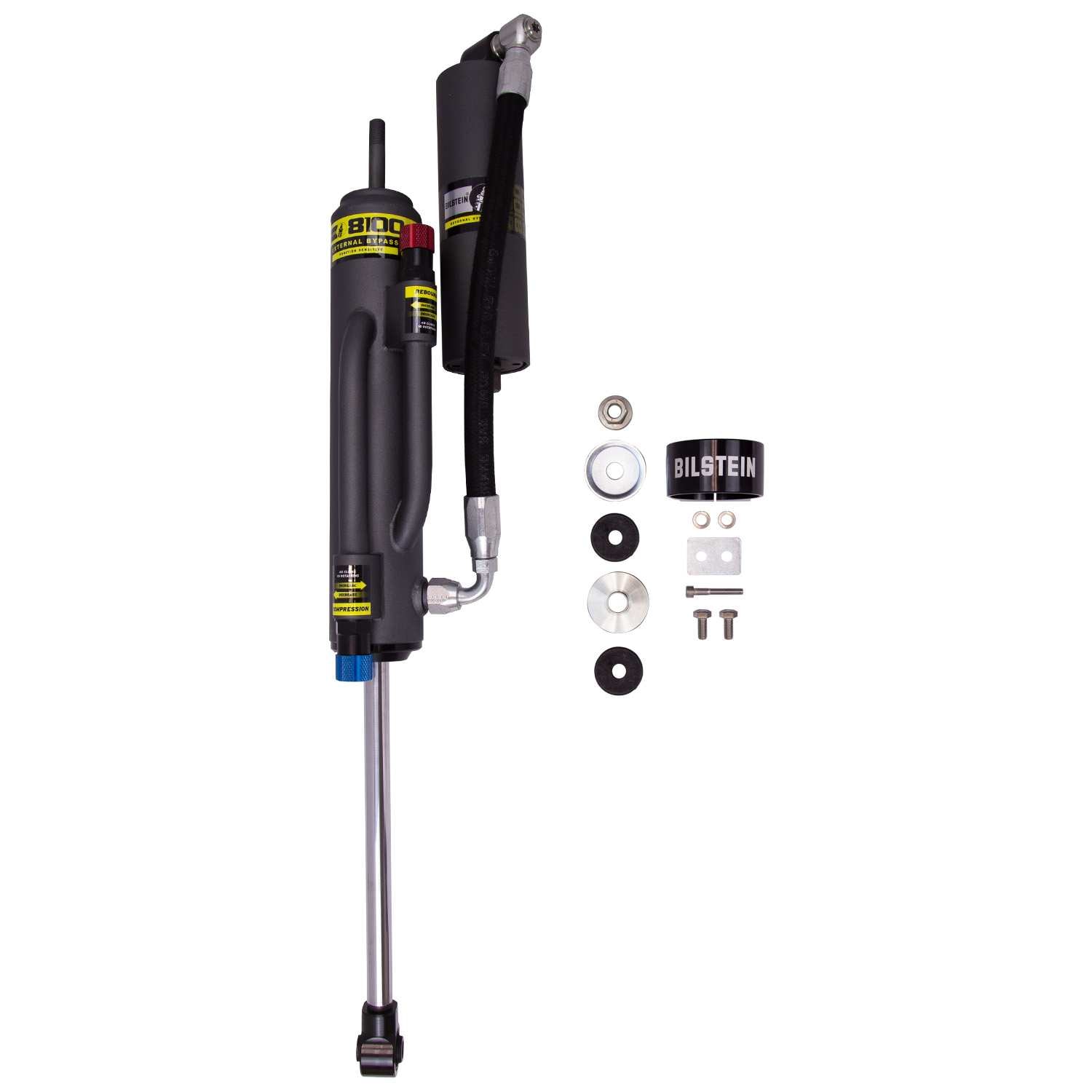

B8 8100 (Bypass) - Suspension Shock Absorber - Bilstein - 25-320459

Bilstein B8 8100 (Bypass) is a direct fit position sensitive damper for light trucks and SUV-™s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature -œIncremental Flow- bypass adjusters allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose remote reservoir exit port delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience offering unparalleled ride comfort and incredible bottom out control.Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression; Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments; 60mm large bore hard anodized aluminum piston offers a greater range of damping control and delivers exceptional long-term durability
Adjustable Damping: Double Adjustable Compression and Rebound with Click Adjuster Knobs
Body Design: Bypass Body (Non-Coilover)
Boot Included: No
Collapsed Length (IN): 14.25
Collapsed Length (MM): 362.0
Extended Length (IN): 23.94
Extended Length (MM): 608.0
FAB: 60mm large bore hard anodized aluminum piston offers a greater range of damping control and delivers exceptional long-term durability
FAB: Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments
FAB: Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression
Finish: EVO Grey
Internal Design: Monotube
Lower Mount Type: Eye 12mm
PartType: Shocks / Struts
Piston Diameter: 60mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reservoir: Yes
Segment: Light Truck
Series: B8 8100 (Bypass)
Shaft Diameter: 18mm
Spring Seat Included: No
Title: Bilstein Shock Absorbers
Upper Mount Type: Stem

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Position 2005 Toyota Tacoma Pre Runner / Base 4WD Rear Right 2006 Toyota Tacoma Pre Runner / Base 4WD Rear Right 2007 Toyota Tacoma Pre Runner / Base 4WD Rear Right 2008 Toyota Tacoma Pre Runner / Base 4WD Rear Right 2009 Toyota Tacoma Pre Runner / Base 4WD Rear Right 2010 Toyota Tacoma Pre Runner / Base 4WD Rear Right 2011 Toyota Tacoma Pre Runner / Base 4WD Rear Right 2012 Toyota Tacoma Pre Runner / Base 4WD Rear Right 2013 Toyota Tacoma Pre Runner / Base 4WD Rear Right 2014 Toyota Tacoma Pre Runner / Base 4WD Rear Right 2015 Toyota Tacoma TRD Pro / Pre Runner / Base 4WD Rear Right 2016 Toyota Tacoma TRD Sport / TRD Off-Road / SR5 / SR / Limited Rear Right 2017 Toyota Tacoma TRD Sport / TRD Pro / TRD Off-Road / SR5 / SR / Limited Rear Right 2018 Toyota Tacoma TRD Sport / TRD Pro / TRD Off-Road / SR5 / SR / Limited Rear Right 2019 Toyota Tacoma TRD Sport / TRD Pro / TRD Off-Road / SR5 / SR / Limited Rear Right 2020 Toyota Tacoma TRD Sport / TRD Pro / TRD Off-Road / SR5 / SR / Limited Rear Right 2021 Toyota Tacoma Trail / TRD Sport / TRD Pro / TRD Off-Road / SR5 / SR / Nightshade / Limited Rear Right 2022 Toyota Tacoma TRD Sport / TRD Pro / TRD Off-Road / SR5 / SR / Nightshade / Limited Rear Right 2023 Toyota Tacoma Trail Special Edition / TRD Sport / TRD Pro / TRD Off-Road / SR5 / SR / Limited Rear Right
