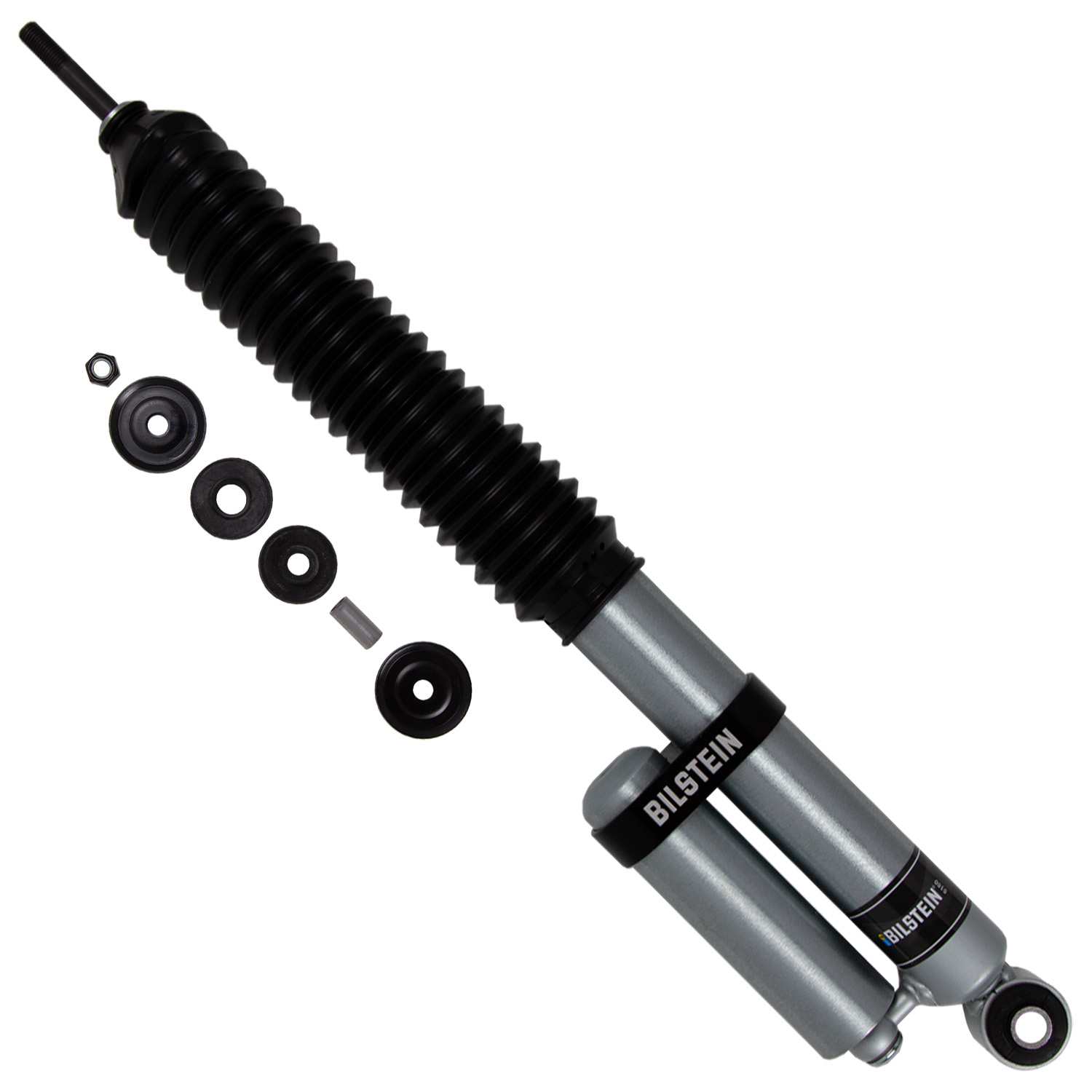

B8 5160 - Suspension Shock Absorber - Bilstein - 25-311914

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.46mm monotube design ensures consistent fade-free performance in all conditions; Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control; Remote reservoir increases shock oil capacity for greater heat dissipation
Adjustable Damping: Non-Adjustable
Billet Reservoir Clamp Included: Yes
Body Design: Smooth Body (Non-Coilover)
Boot Included: Black Bellows
Collapsed Length (IN): 16.42
Collapsed Length (MM): 417.0
Extended Length (IN): 25.08
Extended Length (MM): 637.0
FAB: Remote reservoir increases shock oil capacity for greater heat dissipation
FAB: Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
FAB: 46mm monotube design ensures consistent fade-free performance in all conditions
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Eye 14.4mm
PartType: Shocks / Struts
Piston Diameter: 46mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reservoir: Yes
Segment: Light Truck
Series: B8 5160
Shaft Diameter: 14mm
Spring Seat Included: No
Stroke/Travel Length (IN): 8.54
Stroke/Travel Length (mm): 216.9
Title: Bilstein Shock Absorbers
Upper Mount Type: Stem

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Position 2014 Ram 2500 Tradesman / SLT / Outdoorsman / Lone Star / Laramie / Laramie Longhorn / Laramie Limited / Big Horn 4WD Rear 2015 Ram 2500 Tradesman / SLT / Outdoorsman / Lone Star / Laramie / Laramie Longhorn / Laramie Limited / Big Horn 4WD Rear 2016 Ram 2500 Tradesman / SLT / Outdoorsman / Limited / Laramie / Laramie Longhorn / Big Horn 4WD Rear 2017 Ram 2500 Tradesman / SLT / Limited / Laramie / Laramie Longhorn / Big Horn 4WD Rear 2018 Ram 2500 Tradesman / SLT / Limited / Laramie / Laramie Longhorn / Big Horn 4WD Rear 2019 Ram 2500 Tradesman / Lone Star / Limited / Laramie / Laramie Longhorn / Big Horn 4WD Rear 2020 Ram 2500 Tradesman / Lone Star / Limited / Laramie / Laramie Longhorn / Big Horn 4WD Rear 2021 Ram 2500 Tradesman / Lone Star / Limited / Limited Longhorn / Laramie / Laramie Longhorn / Big Horn 4WD Rear 2022 Ram 2500 Tradesman / Lone Star / Limited / Limited Longhorn / Laramie / Big Horn 4WD Rear 2023 Ram 2500 Tradesman / Rebel / Lone Star / Limited / Limited Longhorn / Laramie / Big Horn 4WD Rear 2024 Ram 2500 Tradesman / Rebel / Lone Star / Limited / Limited Longhorn / Laramie / Big Horn 4WD Rear 2025 Ram 2500 Tradesman / Rebel / Lone Star / Limited / Limited Longhorn / Laramie / Big Horn 4WD Rear
