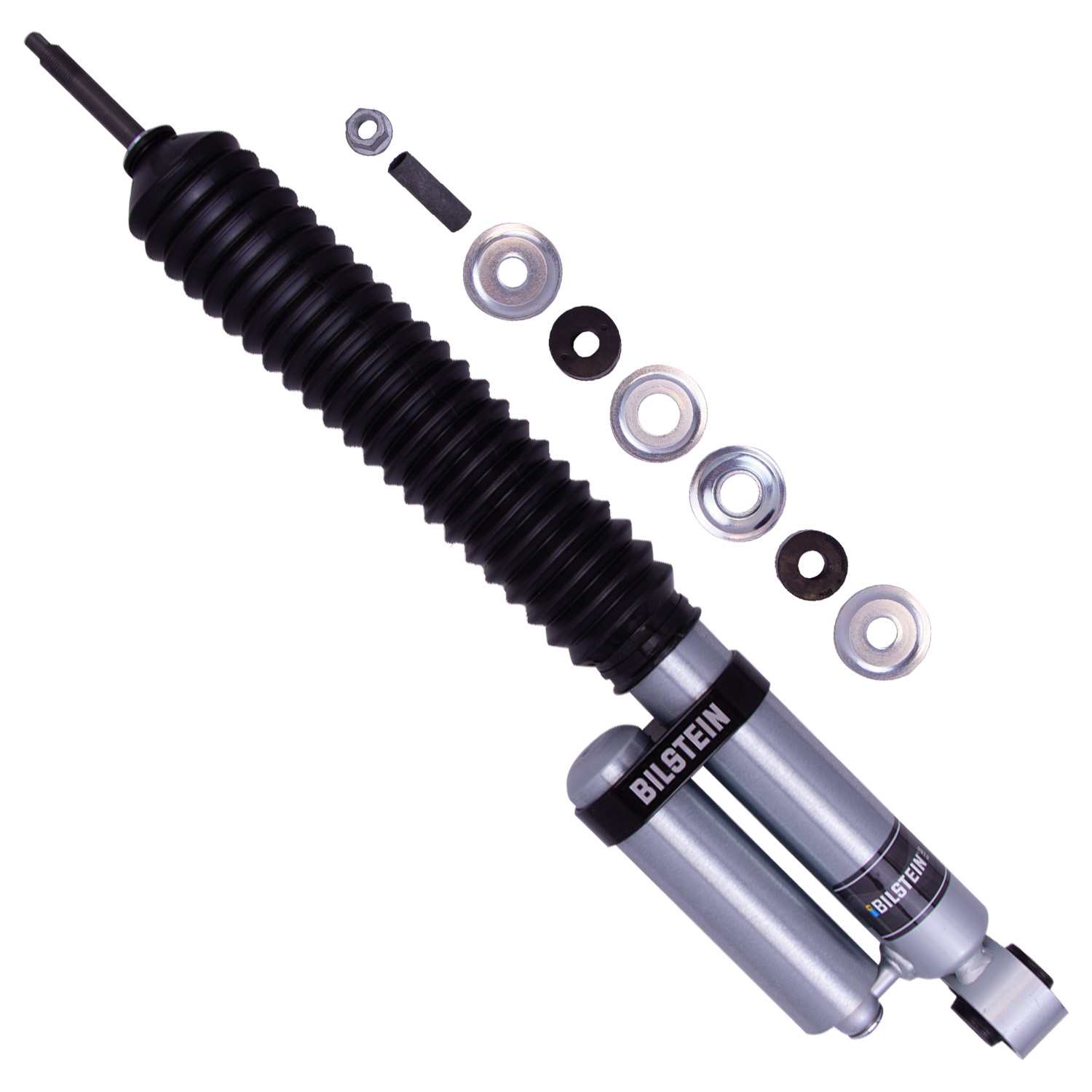

B8 5160 - Suspension Shock Absorber - Bilstein - 25-311402

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.46mm monotube design ensures consistent fade-free performance in all conditions; Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control; Remote reservoir increases shock oil capacity for greater heat dissipation
Adjustable Damping: Non-Adjustable
Billet Reservoir Clamp Included: Yes
Body Design: Smooth Body (Non-Coilover)
Boot Included: Black Bellows
Collapsed Length (IN): 14.61
Collapsed Length (MM): 371.0
Extended Length (IN): 24.17
Extended Length (MM): 614.0
FAB: Remote reservoir increases shock oil capacity for greater heat dissipation
FAB: Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
FAB: 46mm monotube design ensures consistent fade-free performance in all conditions
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Eye 19.25mm
PartType: Shocks / Struts
Piston Diameter: 46mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reservoir: Yes
Segment: Light Truck
Series: B8 5160
Shaft Diameter: 18mm
Spring Seat Included: No
Stroke/Travel Length (IN): 9.56
Stroke/Travel Length (mm): 242.8
Title: Bilstein Shock Absorbers
Upper Mount Type: Stem

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Position 2008 Toyota Land Cruiser Base Rear Left 2009 Toyota Land Cruiser Base Rear Left 2010 Toyota Land Cruiser Base Rear Left 2011 Toyota Land Cruiser Base Rear Left 2013 Toyota Land Cruiser Base Rear Left 2014 Toyota Land Cruiser Base Rear Left 2015 Toyota Land Cruiser Base Rear Left 2016 Toyota Land Cruiser Base Rear Left 2017 Toyota Land Cruiser Base Rear Left 2018 Toyota Land Cruiser Base Rear Left 2019 Toyota Land Cruiser Base Rear Left 2020 Toyota Land Cruiser Heritage Edition / Base Rear Left 2021 Toyota Land Cruiser Heritage Edition / Base Rear Left
