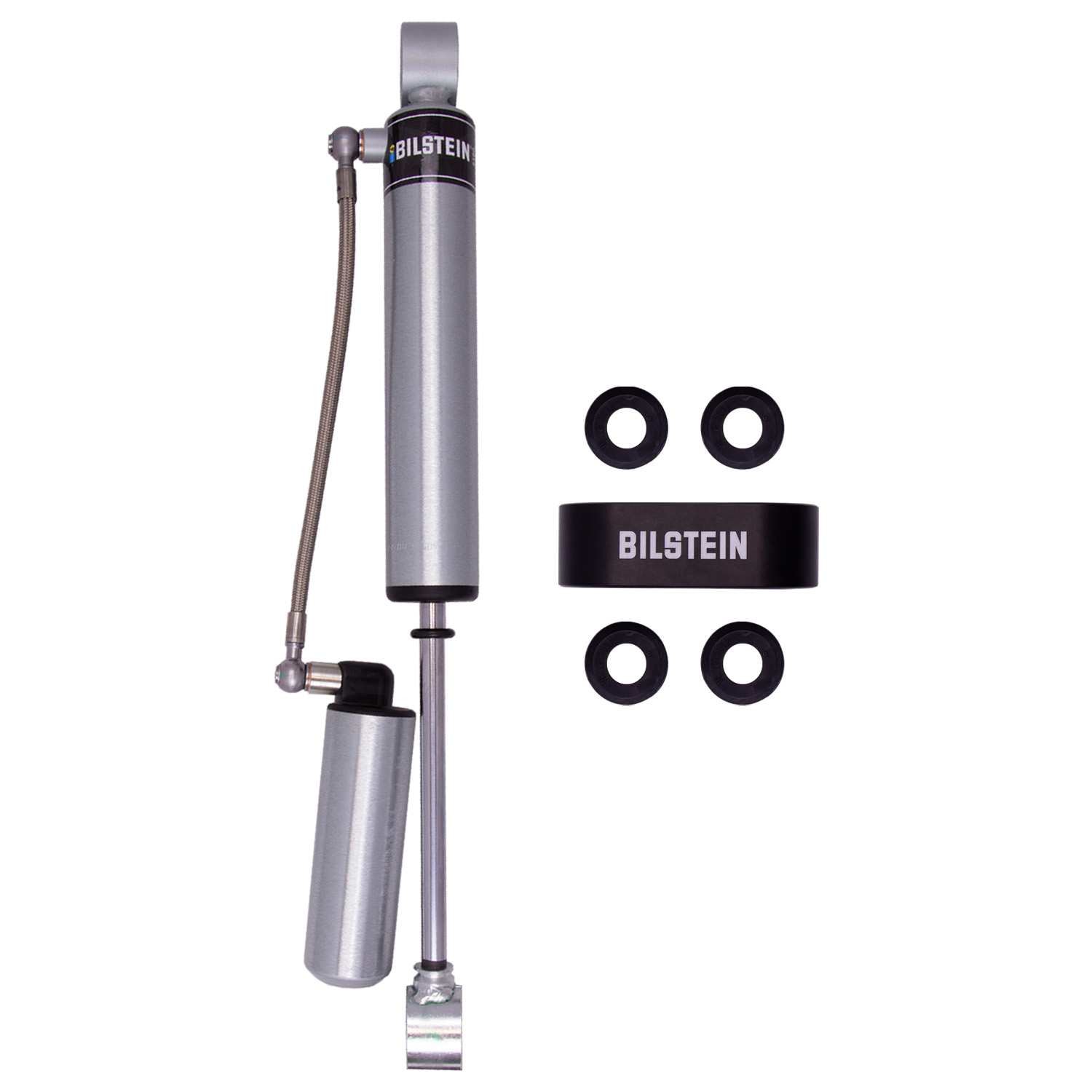

B8 5160 - Suspension Shock Absorber - Bilstein - 25-311327

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.46mm monotube design ensures consistent fade-free performance in all conditions; Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control; Remote reservoir increases shock oil capacity for greater heat dissipation
Adjustable Damping: Non-Adjustable
Billet Reservoir Clamp Included: Yes
Body Design: Smooth Body (Non-Coilover)
Boot Included: No
Collapsed Length (IN): 12.95
Collapsed Length (MM): 329.0
Extended Length (IN): 20.72
Extended Length (MM): 526.2
FAB: Remote reservoir increases shock oil capacity for greater heat dissipation
FAB: Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
FAB: 46mm monotube design ensures consistent fade-free performance in all conditions
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Eye 19mm
PartType: Shocks / Struts
Piston Diameter: 46mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reservoir: Yes
Segment: Light Truck
Series: B8 5160
Shaft Diameter: 14mm
Spring Seat Included: No
Stroke/Travel Length (IN): 7.77
Stroke/Travel Length (mm): 197.4
Title: Bilstein Shock Absorbers
Upper Mount Type: Eye 19mm

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Position 1996 Toyota Tacoma SR5 / Base 4WD Rear Left 1997 Toyota Tacoma SR5 / Base 4WD Rear Left 1998 Toyota Tacoma Pre Runner / Limited / SR5 / Base 4WD Rear Left 1999 Toyota Tacoma Pre Runner / Limited / SR5 / Base 4WD Rear Left 2000 Toyota Tacoma Pre Runner / Limited / SR5 / Base 4WD Rear Left 2001 Toyota Tacoma Pre Runner / Base 4WD Rear Left 2002 Toyota Tacoma Pre Runner / Base 4WD Rear Left 2003 Toyota Tacoma Pre Runner / Base 4WD Rear Left 2004 Toyota Tacoma Pre Runner / Base 4WD Rear Left
