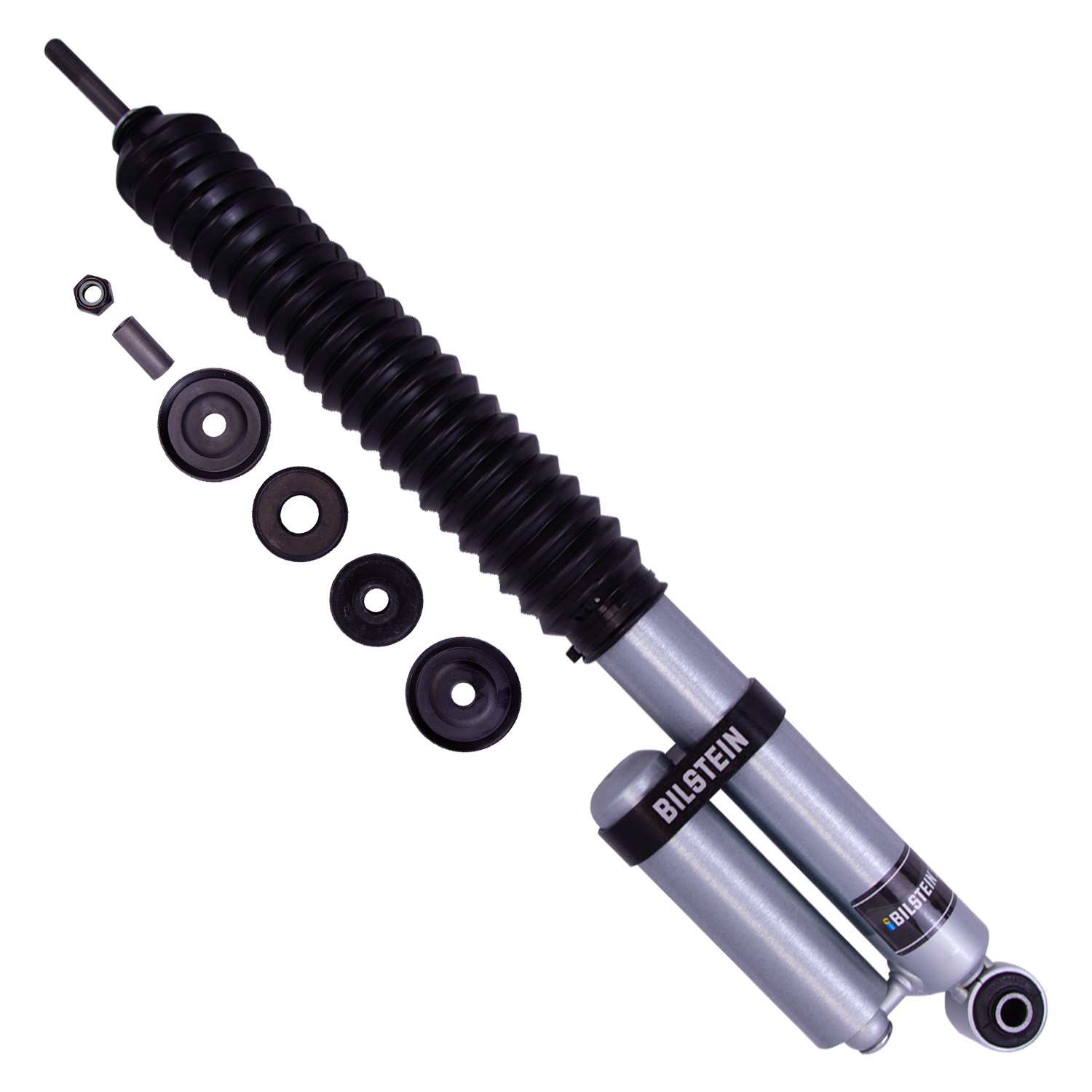

B8 5160 - Suspension Shock Absorber - Bilstein - 25-293449

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.46mm monotube design ensures consistent fade-free performance in all conditions; Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control; Remote reservoir increases shock oil capacity for greater heat dissipation
Adjustable Damping: Non-Adjustable
Billet Reservoir Clamp Included: Yes
Body Design: Smooth Body (Non-Coilover)
Boot Included: Black Bellows
Collapsed Length (IN): 17.17
Collapsed Length (MM): 436.0
Extended Length (IN): 25.71
Extended Length (MM): 653.0
FAB: Remote reservoir increases shock oil capacity for greater heat dissipation
FAB: Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
FAB: 46mm monotube design ensures consistent fade-free performance in all conditions
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Eye 14.4mm
PartType: Shocks / Struts
Piston Diameter: 46mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reservoir: Yes
Segment: Light Truck
Series: B8 5160
Shaft Diameter: 14mm
Spring Seat Included: No
Stroke/Travel Length (IN): 8.54
Stroke/Travel Length (mm): 216.9
Title: Bilstein Shock Absorbers
Upper Mount Type: Stem

Detailed Fitment Results
Year Make Model Sub Model Drive Type Position 2014 Ram 2500 Power Wagon 4WD Rear 2015 Ram 2500 Power Wagon 4WD Rear 2016 Ram 2500 Power Wagon 4WD Rear 2017 Ram 2500 Power Wagon 4WD Rear 2018 Ram 2500 Power Wagon 4WD Rear 2019 Ram 2500 Power Wagon 4WD Rear 2020 Ram 2500 Power Wagon 4WD Rear 2021 Ram 2500 Power Wagon 4WD Rear 2022 Ram 2500 Power Wagon 4WD Rear 2023 Ram 2500 Power Wagon 4WD Rear 2024 Ram 2500 Power Wagon 4WD Rear 2025 Ram 2500 Power Wagon 4WD Rear
