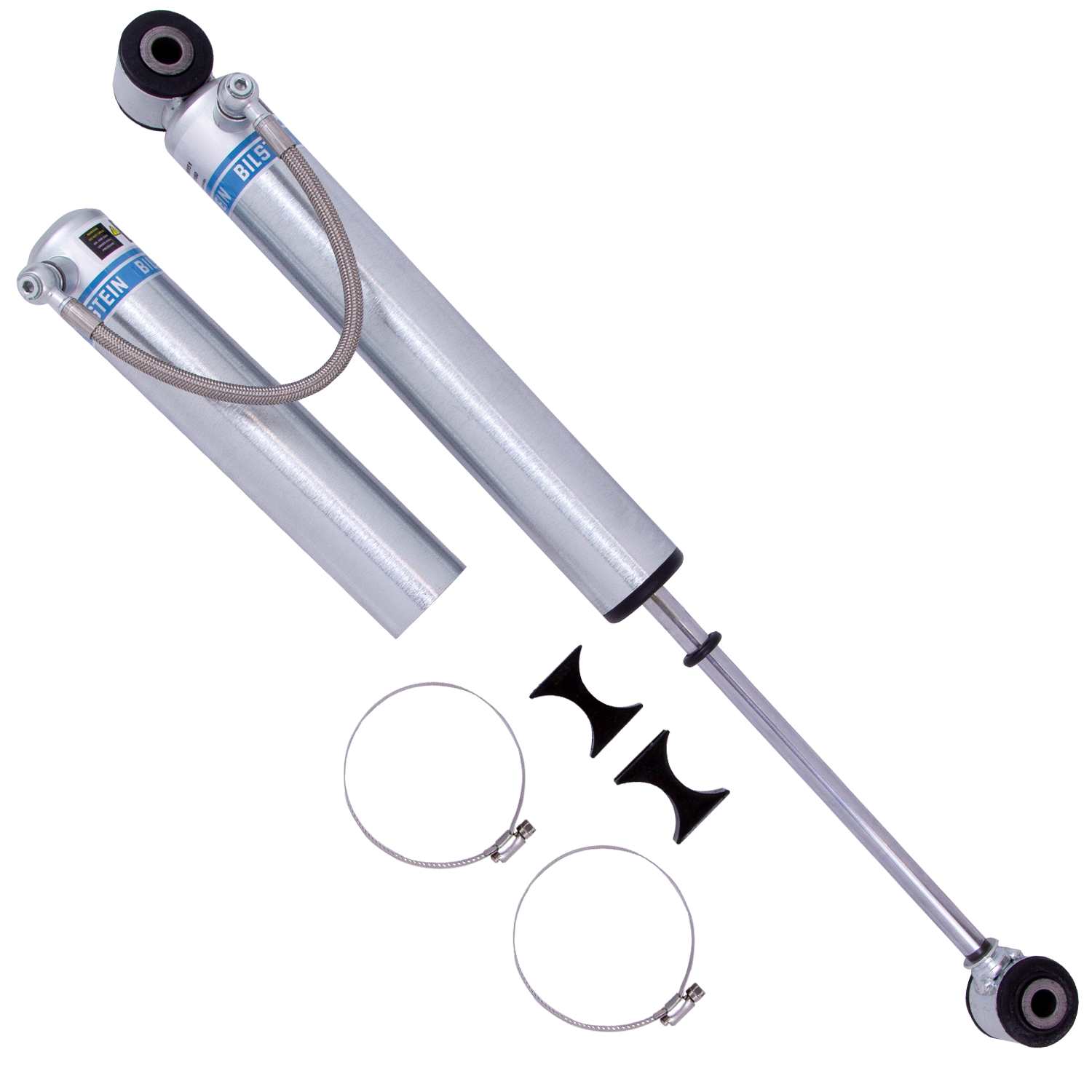

B8 5160 - Suspension Shock Absorber - Bilstein - 25-286151

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.46mm monotube design ensures consistent fade-free performance in all conditions; Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control; Remote reservoir increases shock oil capacity for greater heat dissipation
Adjustable Damping: Non-Adjustable
Billet Reservoir Clamp Included: No
Body Design: Smooth Body (Non-Coilover)
Boot Included: No
Collapsed Length (IN): 14.96
Collapsed Length (MM): 380.0
Extended Length (IN): 24.77
Extended Length (MM): 629.2
FAB: Remote reservoir increases shock oil capacity for greater heat dissipation
FAB: Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
FAB: 46mm monotube design ensures consistent fade-free performance in all conditions
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Eye 14mm
Optional Reservoir Clamp: 11-176015
PartType: Shocks / Struts
Piston Diameter: 46mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reservoir: Yes
Segment: Light Truck
Series: B8 5160
Shaft Diameter: 14mm
Spring Seat Included: No
Stroke/Travel Length (IN): 9.81
Stroke/Travel Length (mm): 249.2
Title: Bilstein Shock Absorbers
Upper Mount Type: Eye 14mm

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Position 2017 Nissan TITAN SV / SL / S / Platinum Reserve RWD Rear 2018 Nissan TITAN SV / SL / S / Platinum Reserve RWD Rear 2019 Nissan TITAN SV / SL / S / Platinum Reserve RWD Rear 2020 Nissan TITAN SV / SL / S / Platinum Reserve RWD Rear 2021 Nissan TITAN SV / SL / S / Platinum Reserve RWD Rear 2022 Nissan TITAN SV / S / Platinum Reserve RWD Rear 2023 Nissan TITAN SV / S / Platinum Reserve RWD Rear 2024 Nissan TITAN SV / Platinum Reserve RWD Rear
