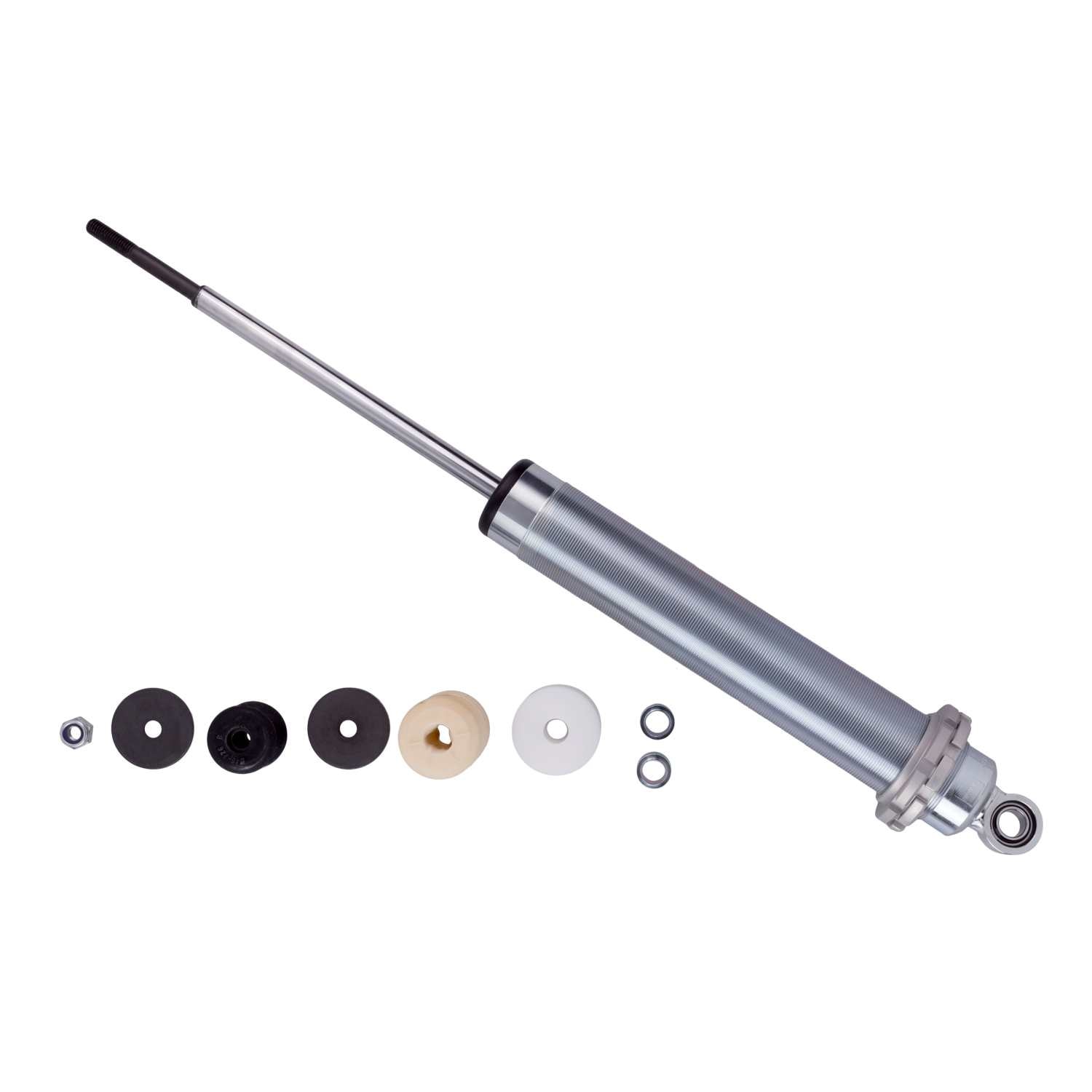

Motorsports - Suspension Shock Absorber - Bilstein - 24-617321

Bilstein Motorsports dampers are designed as a direct fit solution for a variety of motorsports applications. Each damper features monotube technology with proprietary spring steel valve discs tuned specifically to each application for superior on-track handling and control. Bilstein Motorsports dampers are ideal for racers requiring a direct fit solution with true race-proven performance.Monotube design ensures consistent fade-free performance in all conditions; Larger working piston with deflective disc valving; Available in steel and aluminum bodies
Adjustable Damping: Non-Adjustable
Body Design: Threaded Body (Coilover)
Body Material: Steel
Boot Included: No
Collapsed Length (IN): 17.19
Collapsed Length (MM): 436.5
Compression @0.52m/s: 1875
Extended Length (IN): 21.57
Extended Length (MM): 548.0
FAB: Available in steel and aluminum bodies
FAB: Larger working piston with deflective disc valving
FAB: Monotube design ensures consistent fade-free performance in all conditions
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: 15mm Heim
PartType: Shocks / Struts
Piston Diameter: 46mm
Piston Type: Linear
Position: Rear
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Rebound @0.52m/s: 2040
Segment: Motorsports
Series: Motorsports
Shaft Diameter: 14mm
Spring Hardware: N/A
Spring Seat Included: Yes
Stroke/Travel Length (IN): 4.38
Stroke/Travel Length (mm): 111.3
Title: Bilstein Shock Absorbers
Upper Mount Type: Stem

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Position 1965 Porsche 911 Base Rear 1965 Porsche 912 Base Rear 1966 Porsche 911 Base Rear 1966 Porsche 912 Base Rear 1967 Porsche 911 S / Base Rear 1967 Porsche 912 Base Rear 1968 Porsche 911 S / L / Base Rear 1968 Porsche 912 Base Rear 1969 Porsche 911 T / S / E Rear 1969 Porsche 912 Base Rear 1970 Porsche 911 T / S / E Rear 1971 Porsche 911 T / S / E Rear 1972 Porsche 911 T / S / E Rear 1973 Porsche 911 T / S / E Rear 1974 Porsche 911 S / Carrera / Base Rear 1975 Porsche 911 S / Carrera Rear 1976 Porsche 911 Turbo Carrera / S Rear 1976 Porsche 912 E Rear 1977 Porsche 911 Turbo Carrera / S Rear 1978 Porsche 911 SC Rear 1978 Porsche 930 Turbo Rear 1979 Porsche 911 SC Rear 1979 Porsche 930 Turbo Rear 1980 Porsche 911 SC Rear 1981 Porsche 911 SC Rear 1982 Porsche 911 SC Rear 1983 Porsche 911 SC Rear 1984 Porsche 911 Carrera Rear 1985 Porsche 911 Carrera Rear 1986 Porsche 911 Turbo Carrera / Carrera Rear 1987 Porsche 911 Turbo Carrera / Carrera Rear 1988 Porsche 911 Turbo Carrera / Carrera Rear 1989 Porsche 911 Turbo Carrera / Speedster / Carrera Rear
