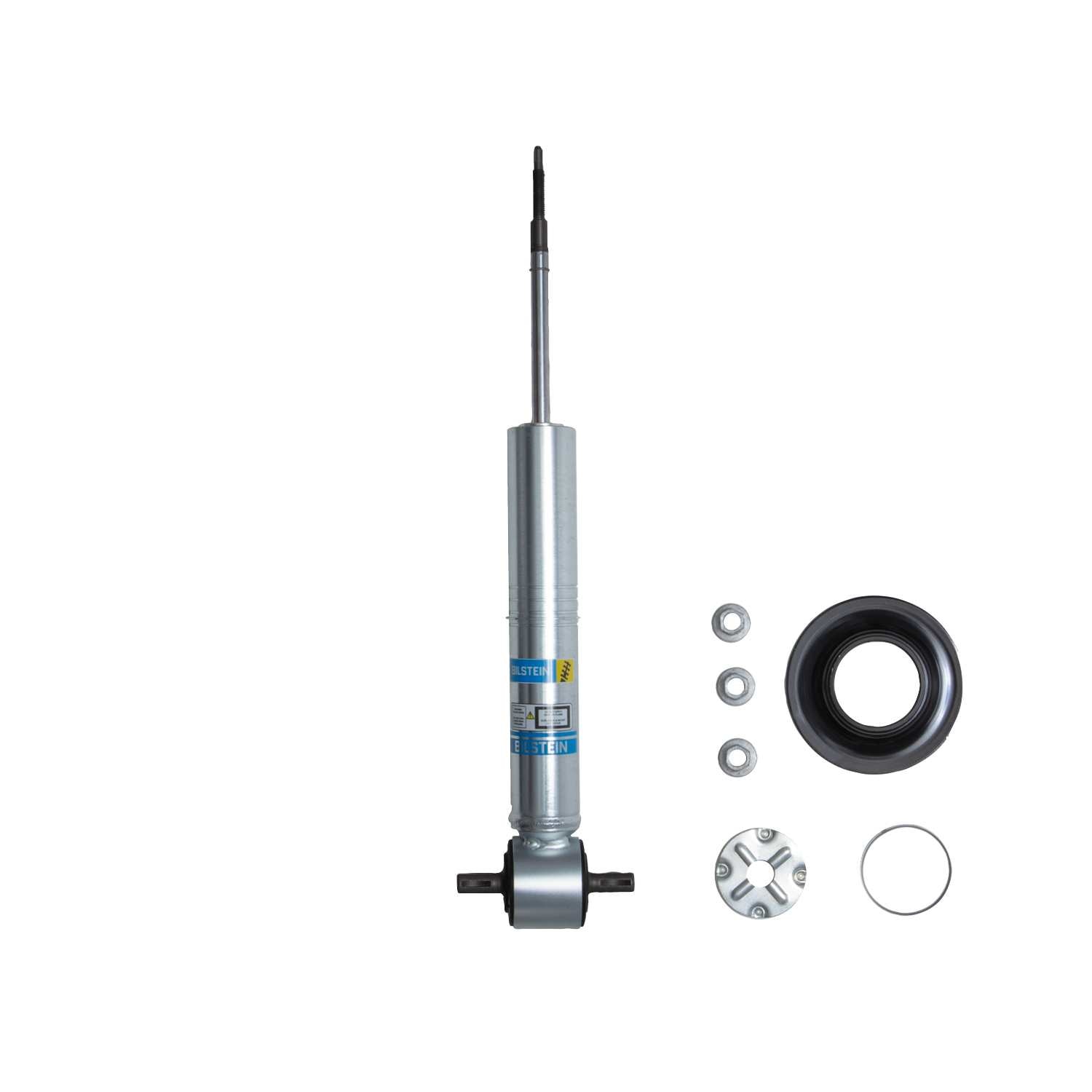

B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber - Bilstein - 24-336895

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.46mm monotube design ensures consistent fade-free performance in all conditions; Practical alternative to coil spring spacers with the benefit of Bilstein monotube technology; Adjustable spring seat offers 0-2.75in of lift depending on the application
Adjustable Damping: Non-Adjustable
Body Design: Snap Ring Grooved Body (Coilover)
Boot Included: No
Collapsed Length (IN): 15.00
Collapsed Length (MM): 381.0
Extended Length (IN): 18.89
Extended Length (MM): 479.7
FAB: Adjustable spring seat offers 0-2.75in of lift depending on the application
FAB: Practical alternative to coil spring spacers with the benefit of Bilstein monotube technology
FAB: 46mm monotube design ensures consistent fade-free performance in all conditions
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Bar Pin
PartType: Shocks / Struts
Piston Diameter: 46mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reservoir: No
Segment: Light Truck
Series: B8 5100 (Ride Height Adjustable)
Shaft Diameter: 14mm
Spring Seat Included: Yes
Stroke/Travel Length (IN): 3.89
Stroke/Travel Length (mm): 98.8
Title: Bilstein Shock Absorbers
Upper Mount Type: Stem

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Position 2014 Chevrolet Silverado 1500 WT / LTZ / LT / High Country Front 2014 GMC Sierra 1500 SLT / SLE / Denali / Base Front 2015 Chevrolet Silverado 1500 WT / LTZ / LT / LS / High Country Front 2015 GMC Sierra 1500 SLT / SLE / Base Front 2016 Chevrolet Silverado 1500 WT / LTZ / LT / LS / High Country / Custom Front 2016 GMC Sierra 1500 SLT / SLE / Base Front 2017 Chevrolet Silverado 1500 LS / High Country / Custom / WT / LTZ / LT Front 2017 GMC Sierra 1500 SLT / SLE / Base Front 2018 Chevrolet Silverado 1500 WT / LTZ / LT / LS / High Country / Custom Front 2018 GMC Sierra 1500 SLT / SLE / Base Front 2019 GMC Sierra 1500 Limited SLE / Base Front 2019 Chevrolet Silverado 1500 LD WT / LT / Custom Front
