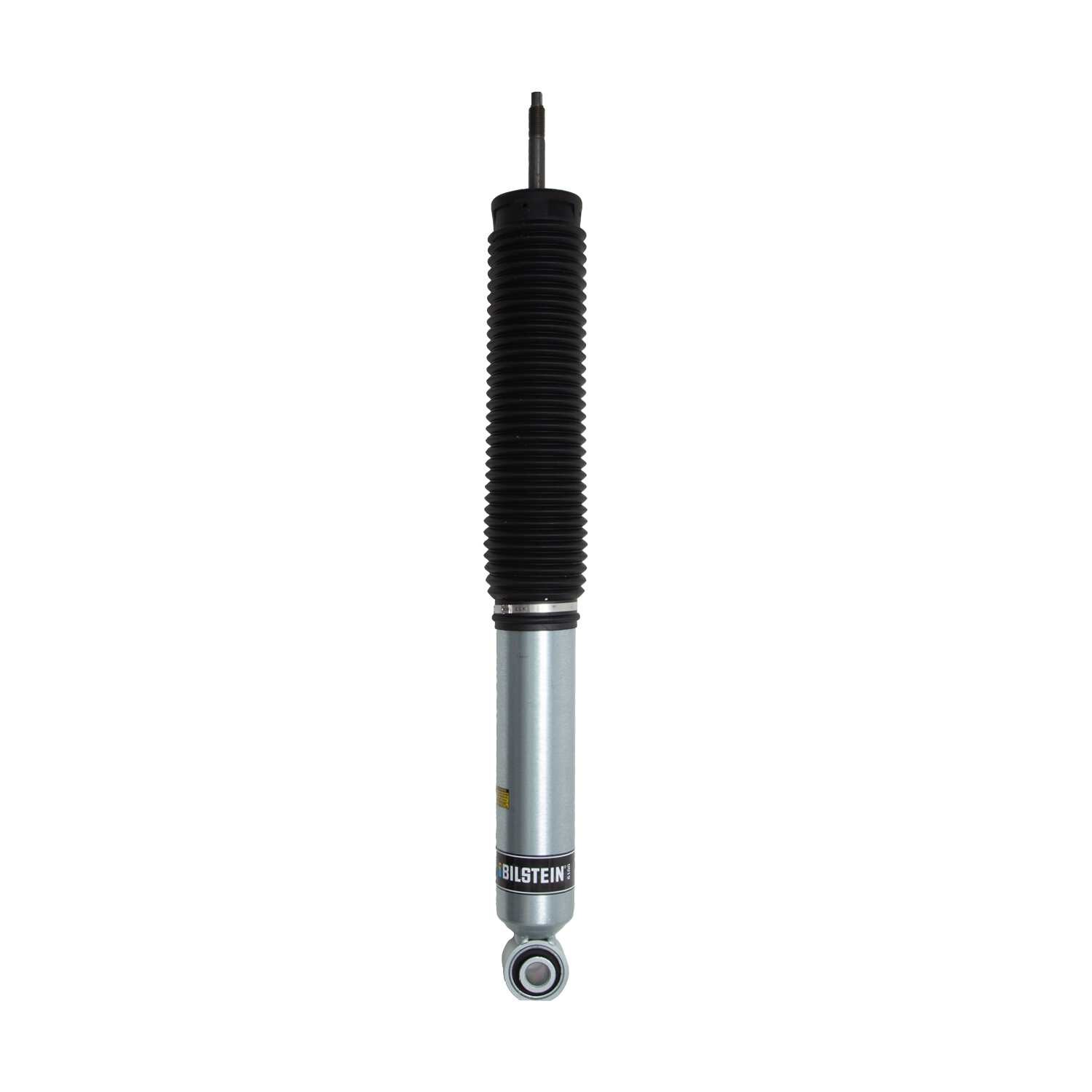

B8 6100 - Suspension Shock Absorber - Bilstein - 24-332958

Bilstein B8 6100 shock absorbers are filled with the technology perfected over 3 decades of off-road dominance. Bilstein's monotube gas pressure design with a large 2.65-in OD body and 60mm digressive piston maximizes heat dissipation for increased shock life and decreases oil foaming to prevent performance loss while providing a smoother ride and more control over rough terrain. The B8 6100 will provide increased durability making them perfect for vehicles subjected to rugged roads and harsh conditions.Large 60mm body for increased oil capacity cooling and long-term durability; 60mm digressive piston improves ride comfort and control over rough terrain; Vehicle specific tuning
Adjustable Damping: Non-Adjustable
Body Design: Smooth Body (Non-coilover)
Boot Included: Black Bellows
Collapsed Length (IN): 16.59
Collapsed Length (MM): 421.4
Extended Length (IN): 25.18
Extended Length (MM): 639.5
FAB: Vehicle specific tuning
FAB: 60mm digressive piston improves ride comfort and control over rough terrain
FAB: Large 60mm body for increased oil capacity cooling and long-term durability
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Eye 19.1mm
PartType: Shocks / Struts
Piston Diameter: 60mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reservoir: No
Segment: Light Truck
Series: B8 6100
Shaft Diameter: 18mm
Spring Seat Included: No
Stroke/Travel Length (IN): 8.59
Stroke/Travel Length (mm): 218.2
Title: Bilstein Shock Absorbers
Upper Mount Type: Stem

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Position 2022 Toyota Tundra SR5 / SR / Platinum / Limited / Capstone / 1794 Edition Rear 2023 Toyota Sequoia SR5 / Platinum / Limited / Capstone Rear 2023 Toyota Tundra SR5 / SR / Platinum / Limited / Capstone / 1794 Edition Rear 2024 Toyota Tundra SR5 / SR / Platinum / Limited / Capstone / 1794 Edition Rear 2024 Toyota Sequoia SR5 / Platinum / Limited / Capstone Rear 2025 Toyota Sequoia SR5 / Platinum / Limited / Capstone / 1794 Edition Rear 2025 Toyota Tundra SR5 / SR / Platinum / Limited / Capstone / 1794 Edition Rear
