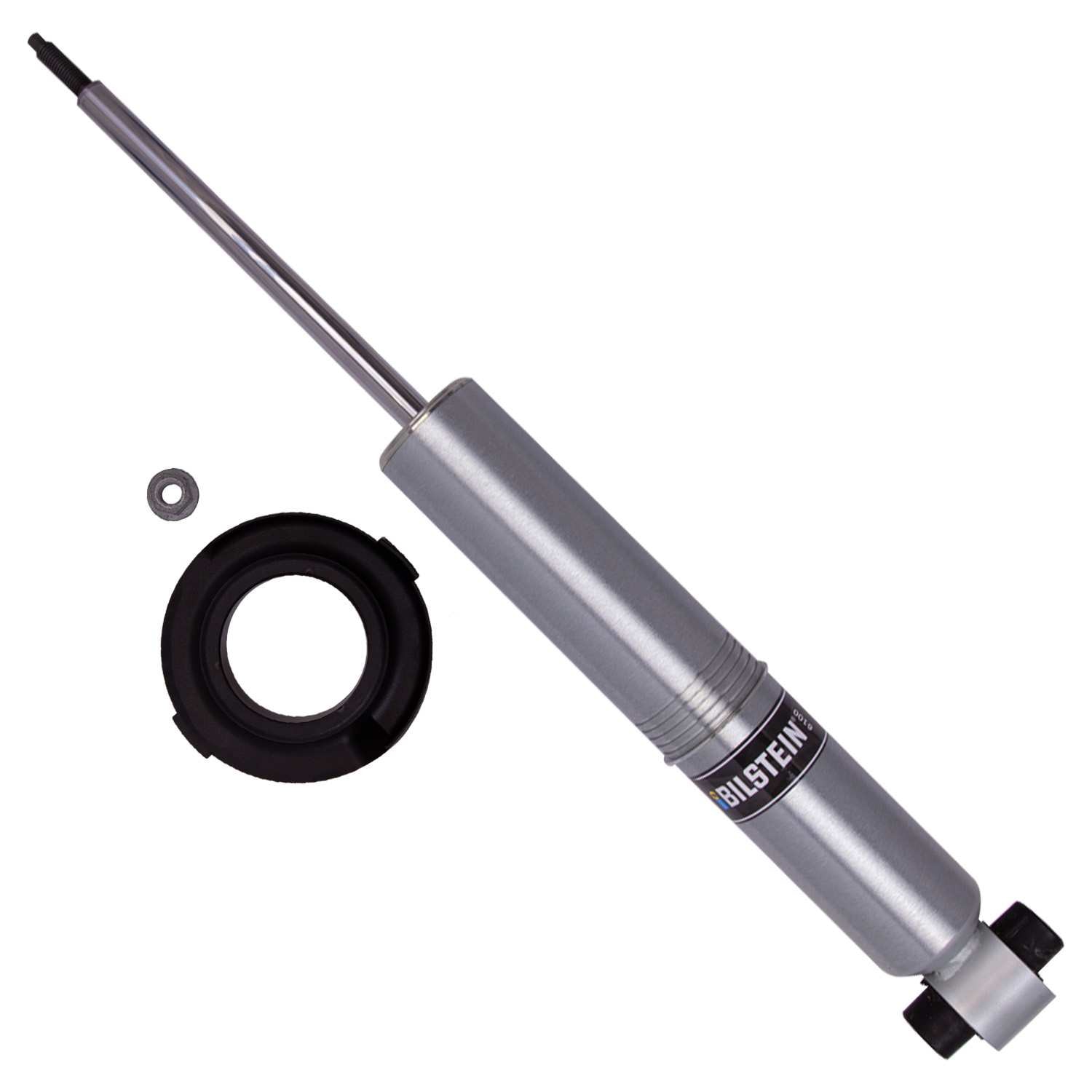

B8 6100 (Ride Height Adjustable) - Suspension Shock Absorber - Bilstein - 24-325578

Bilstein B8 6100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUV's with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions providing an adjustable ride height range of 0-3 inches (depending on application). The B8 6100 (Ride Height Adjustable) utilizes a large 2.65 OD body and 60mm digressive piston. This will provide a smoother ride while offering more control over rough terrain. The B8 6100 (Ride Height Adjustable) will provide increased durability and heat dissipation making them perfect for vehicles subjected to rugged roads and harsh conditions.Large 60mm body for increased oil capacity cooling and long-term durability; 60mm digressive piston improves ride comfort and control over rough terrain; Vehicle specific tuning
Adjustable Damping: Non-Adjustable
Body Design: Snap Ring Grooved Body (Coilover)
Boot Included: No
Collapsed Length (IN): 17.11
Collapsed Length (MM): 434.6
Extended Length (IN): 25.56
Extended Length (MM): 649.3
FAB: Large 60mm body for increased oil capacity cooling and long-term durability
FAB: Vehicle specific tuning
FAB: 60mm digressive piston improves ride comfort and control over rough terrain
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Eye 20.2mm
PartType: Shocks / Struts
Piston Diameter: 60mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reservoir: No
Segment: Light Truck
Series: B8 6100 (Ride Height Adjustable)
Shaft Diameter: 18mm
Spring Seat Included: Yes
Stroke/Travel Length (IN): 8.45
Stroke/Travel Length (mm): 214.6
Title: Bilstein Shock Absorbers
Upper Mount Type: Stem

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Position 2021 Ford Bronco Wildtrak / Outer Banks / First Edition / Black Diamond / Big Bend / Base / Badlands Rear 2022 Ford Bronco Wildtrak / Outer Banks / Black Diamond / Big Bend / Base / Badlands Rear 2023 Ford Bronco Outer Banks / Heritage Limited Edition / Heritage Edition / Black Diamond / Big Bend / Base / Badlands Rear 2024 Ford Bronco Outer Banks / Heritage Limited Edition / Heritage Edition / Black Diamond / Big Bend / Badlands Rear 2025 Ford Bronco Base / Badlands Rear
