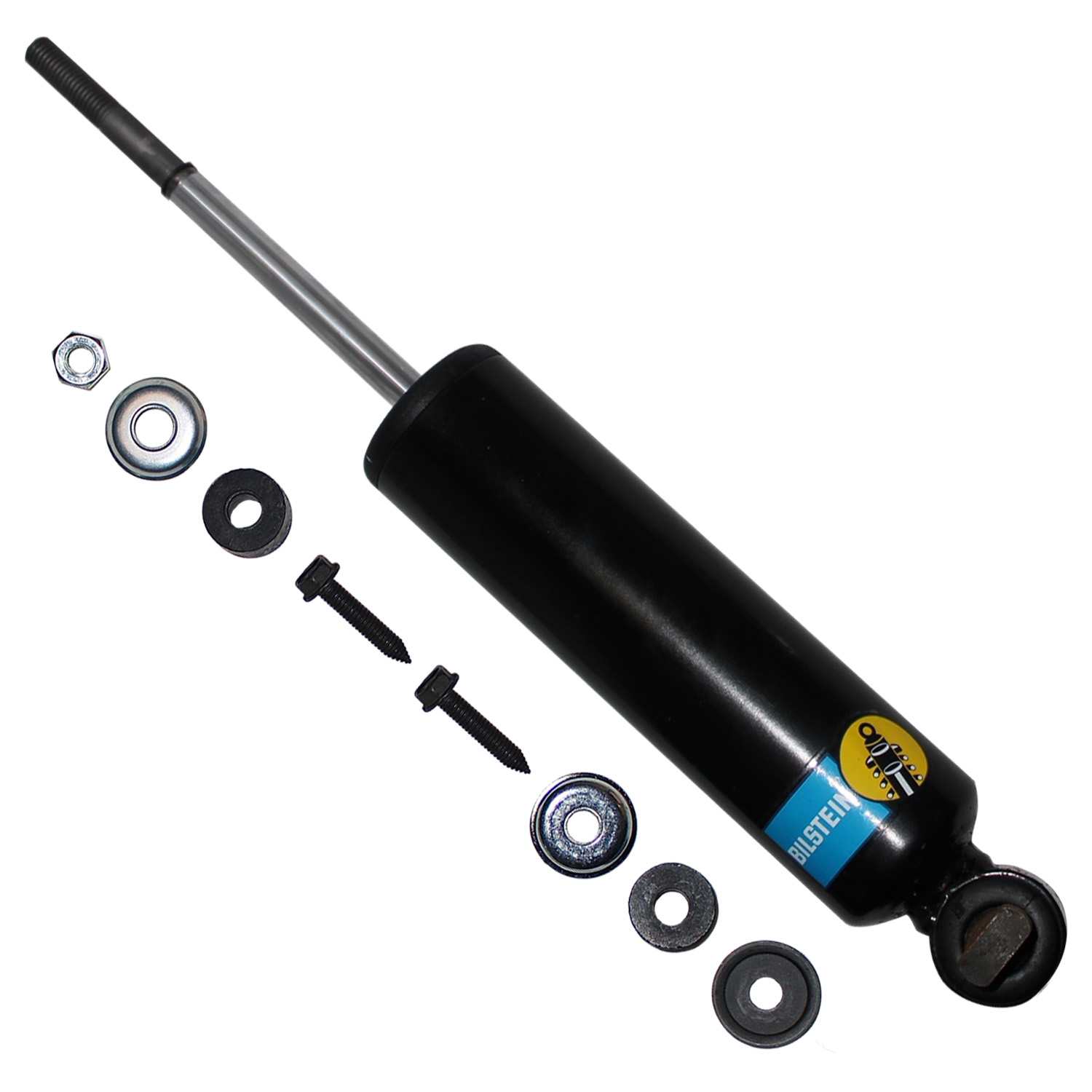

SMX Series - Suspension Shock Absorber - Bilstein - 24-296786

Bilstein SMX Series shock absorbers are specifically designed for motorsports applications that mandate the use of stock mount (OE) suspension components. Designed using 46mm monotube technology the shocks are available in a variety of damping options including dry kit designed specifically to provide the best options for a variety of race track types and conditions. Built in the USA with precision components and top quality controls the SMX Series shocks deliver Bilstein-™s famous fade-free performance and consistency in a factory-mount package that championship winning racers demand.Stock mount design for GM metric chassis applications; 46mm piston design for maximum damping control; A wide range of valving choices available for endless tuning combinations
Adjustable Damping: Non-Adjustable
Body Design: Stock Mount Smooth Body
Body Material: Steel
Boot Included: No
Collapsed Length (IN): 8.27
Collapsed Length (MM): 210.0
Compression @ 10 inch/sec: 225
Extended Length (IN): 12.01
Extended Length (MM): 305.0
FAB: A wide range of valving choices available for endless tuning combinations
FAB: 46mm piston design for maximum damping control
FAB: Stock mount design for GM metric chassis applications
Finish: Black Paint
Internal Design: Monotube
Lower Mount Type: Bar Pin
PartType: Shocks / Struts
Piston Diameter: 46mm
Piston Type: Linear
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Rebound @ 10 inch/sec: 325
Segment: Motorsports
Series: SMX Series
Shaft Diameter: 11mm
Spring Hardware: N/A
Spring Seat Included: No
Stroke/Travel Length (IN): 3.74
Stroke/Travel Length (mm): 95.0
Title: Bilstein Shock Absorbers
Upper Mount Type: Stem
