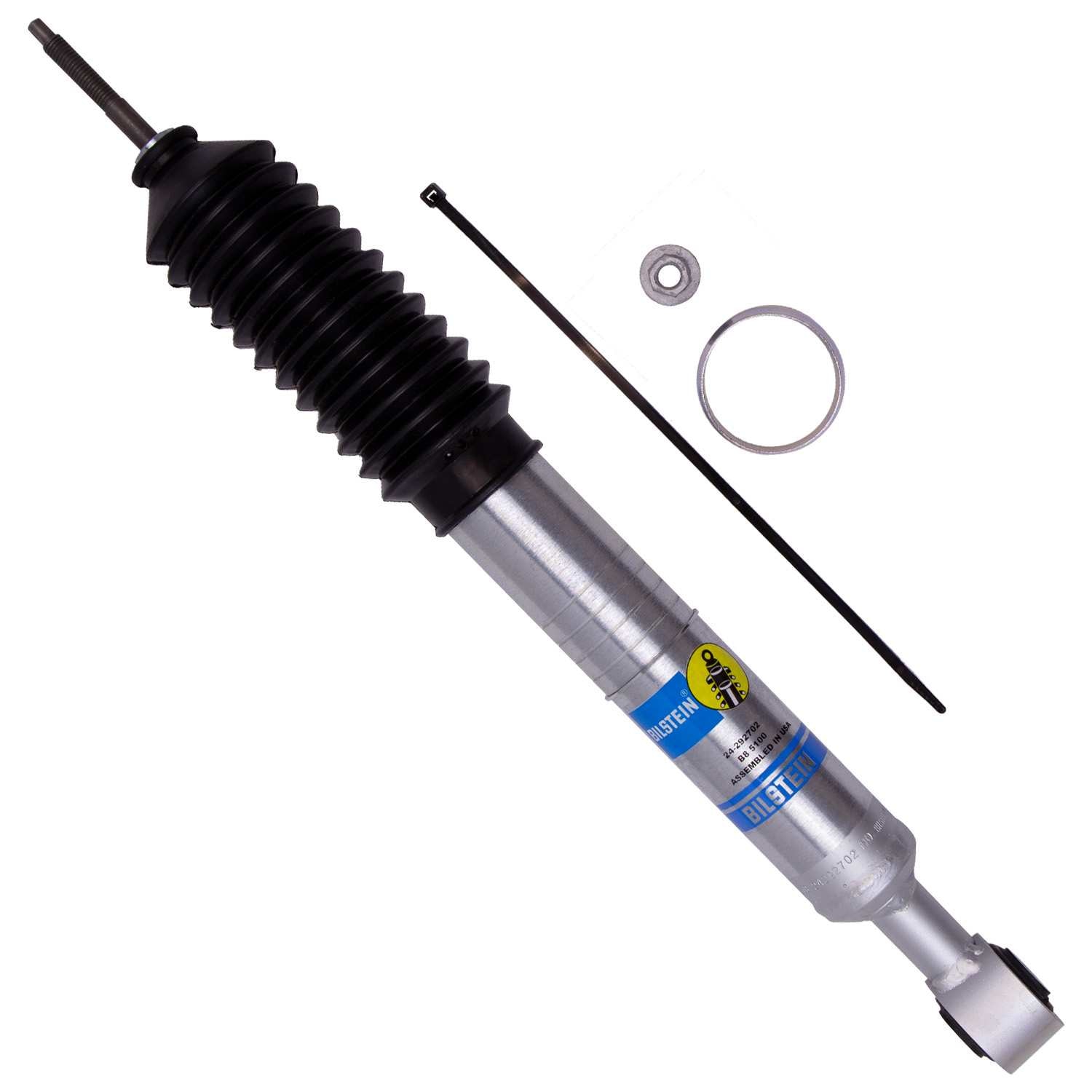

B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber - Bilstein - 24-292702

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.46mm monotube design ensures consistent fade-free performance in all conditions; Practical alternative to coil spring spacers with the benefit of Bilstein monotube technology; Adjustable spring seat offers 0-2.75in of lift depending on the application
Adjustable Damping: Non-Adjustable
Body Design: Snap Ring Grooved Body (Coilover)
Boot Included: Black Bellows
Collapsed Length (IN): 14.76
Collapsed Length (MM): 375.0
Extended Length (IN): 19.45
Extended Length (MM): 494.0
FAB: Adjustable spring seat offers 0-2.75in of lift depending on the application
FAB: Practical alternative to coil spring spacers with the benefit of Bilstein monotube technology
FAB: 46mm monotube design ensures consistent fade-free performance in all conditions
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Eye 14.1mm
PartType: Shocks / Struts
Piston Diameter: 46mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reservoir: No
Segment: Light Truck
Series: B8 5100 (Ride Height Adjustable)
Shaft Diameter: 18mm
Spring Seat Included: No - Reuse OEM
Stroke/Travel Length (IN): 4.69
Stroke/Travel Length (mm): 119.1
Title: Bilstein Shock Absorbers
Upper Mount Type: Stem

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Position 2015 Chevrolet Colorado Z71 / WT / LTZ / LT / Base RWD / 4WD Front 2015 GMC Canyon SLT / SLE / Base / SL RWD / 4WD Front 2016 Chevrolet Colorado Z71 / WT / LT / Base RWD / 4WD Front 2016 GMC Canyon SLT / SLE / Base / SL RWD / 4WD Front 2017 Chevrolet Colorado Z71 / WT / LT / Base RWD / 4WD Front 2017 GMC Canyon SLT / SLE / Denali / Base / SL RWD / 4WD Front 2018 GMC Canyon SLT / SLE / Denali / Base / All Terrain / SL RWD / 4WD Front 2018 Chevrolet Colorado Z71 / WT / LT / Base RWD / 4WD Front 2019 GMC Canyon SLT / SLE / Denali / Base / All Terrain / SL RWD / 4WD Front 2019 Chevrolet Colorado Z71 / WT / LT / Base RWD / 4WD Front 2020 GMC Canyon SLT / SLE / Denali / Base / All Terrain / SL RWD / 4WD Front 2020 Chevrolet Colorado Z71 / WT / LT / Base RWD / 4WD Front 2021 GMC Canyon Elevation / Elevation Standard / Denali / AT4 RWD / 4WD Front 2021 Chevrolet Colorado Z71 / WT / LT RWD / 4WD Front 2022 Chevrolet Colorado Z71 / WT / LT RWD / 4WD Front 2022 GMC Canyon Elevation / Elevation Standard / Denali / AT4 RWD / 4WD Front
