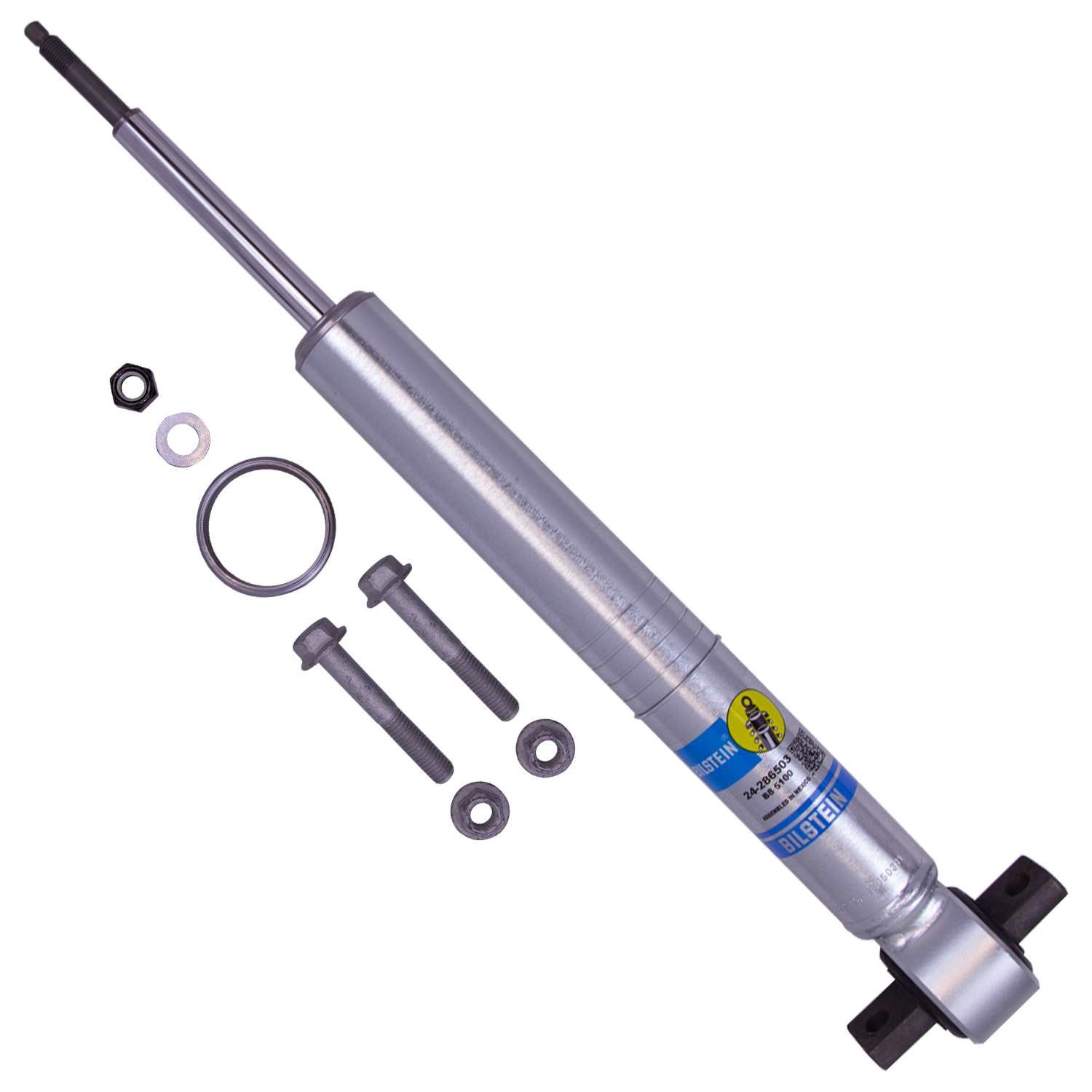

B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber - Bilstein - 24-286503

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle. 46mm monotube design ensures consistent fade-free performance in all conditions; Practical alternative to coil spring spacers with the benefit of Bilstein monotube technology; Adjustable spring seat offers 0-2.75in of lift depending on the application
Adjustable Damping: Non-Adjustable
Body Design: Snap Ring Grooved Body (Coilover)
Boot Included: No
Collapsed Length (IN): 16.05
Collapsed Length (MM): 407.6
Extended Length (IN): 21.34
Extended Length (MM): 542.1
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Crossbar
PartType: Shocks / Struts
Piston Diameter: 46mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Reservoir: No
Segment: Light Truck
Series: B8 5100 (Ride Height Adjustable)
Shaft Diameter: 18mm
Spring Seat Included: No - Reuse OEM
Stroke/Travel Length (IN): 5.35
Stroke/Travel Length (mm): 135.9
Title: Bilstein Shock Absorbers
Upper Mount Type: Stem

Detailed Fitment Results
Year Make Model Submodel Body Type Name Drive Type Name Bed Length Inches Fitment Notes 2014 Ford F-150 Platinum / King Ranch / Limited / FX2 / XLT / STX / XL / Lariat RWD / Provides 0-2.1" Front Lift
