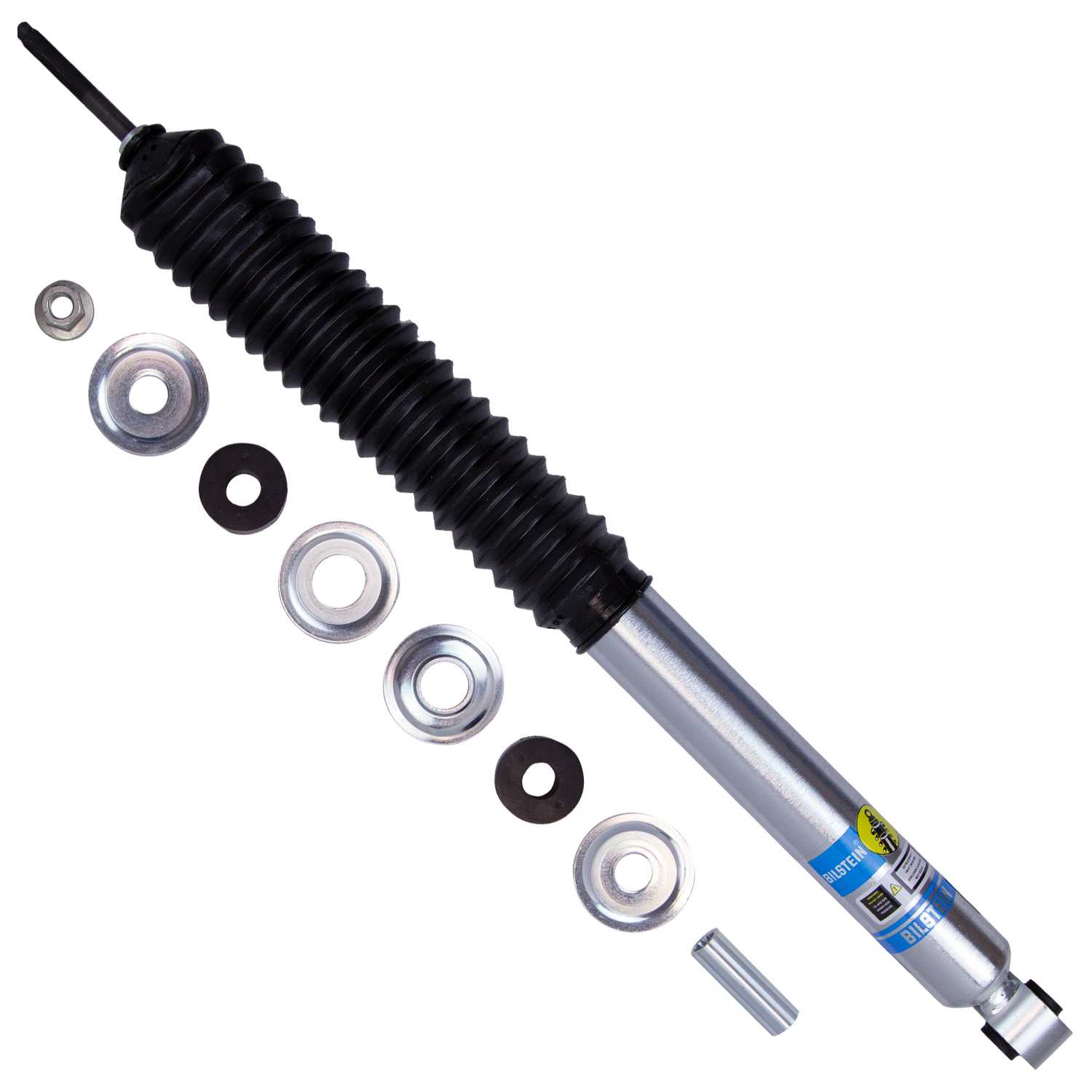

B8 5100 - Suspension Shock Absorber - Bilstein - 24-286244

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV-™s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique velocity sensitive digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality handling and comfort.46mm monotube design ensures consistent fade-free performance in all conditions; Patented digressive valving instantly reacts to changing surface conditions; Vehicle specific tuning
Adjustable Damping: Non-Adjustable
Body Design: Smooth Body (Non-coilover)
Boot Included: Black Bellows
Collapsed Length (IN): 17.34
Collapsed Length (MM): 440.5
Extended Length (IN): 26.81
Extended Length (MM): 681.0
FAB: Vehicle specific tuning
FAB: Patented digressive valving instantly reacts to changing surface conditions
FAB: 46mm monotube design ensures consistent fade-free performance in all conditions
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Eye 12.4mm
PartType: Shocks / Struts
Piston Diameter: 46mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reservoir: No
Segment: Light Truck
Series: B8 5100
Shaft Diameter: 14mm
Spring Seat Included: No
Stroke/Travel Length (IN): 9.47
Stroke/Travel Length (mm): 240.5
Title: Bilstein Shock Absorbers
Upper Mount Type: Stem

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Position 2007 Toyota Tundra SR5 / Limited / Base Rear 2008 Toyota Tundra SR5 / Limited / Base Rear 2009 Toyota Tundra SR5 / Limited / Base Rear 2010 Toyota Tundra SR5 / Platinum / Limited / Base Rear 2011 Toyota Tundra SR5 / Platinum / Limited / Base Rear 2012 Toyota Tundra Platinum / Limited / Base Rear 2013 Toyota Tundra Platinum / Limited / Base Rear 2014 Toyota Tundra SR5 / SR / Platinum / Limited / 1794 Edition Rear 2015 Toyota Tundra SR5 / SR / Platinum / Limited / 1794 Edition Rear 2016 Toyota Tundra SR5 / SR / Platinum / Limited / 1794 Edition Rear 2017 Toyota Tundra SR5 / SR / Platinum / Limited / 1794 Edition Rear 2018 Toyota Tundra SR5 / SR / Platinum / Limited / 1794 Edition Rear 2019 Toyota Tundra SR5 / SR / Platinum / Limited / 1794 Edition Rear 2020 Toyota Tundra SR5 / SR / Platinum / Limited / 1794 Edition Rear 2021 Toyota Tundra Trail / SR5 / SR / Platinum / Nightshade / Limited / 1794 Edition Rear
