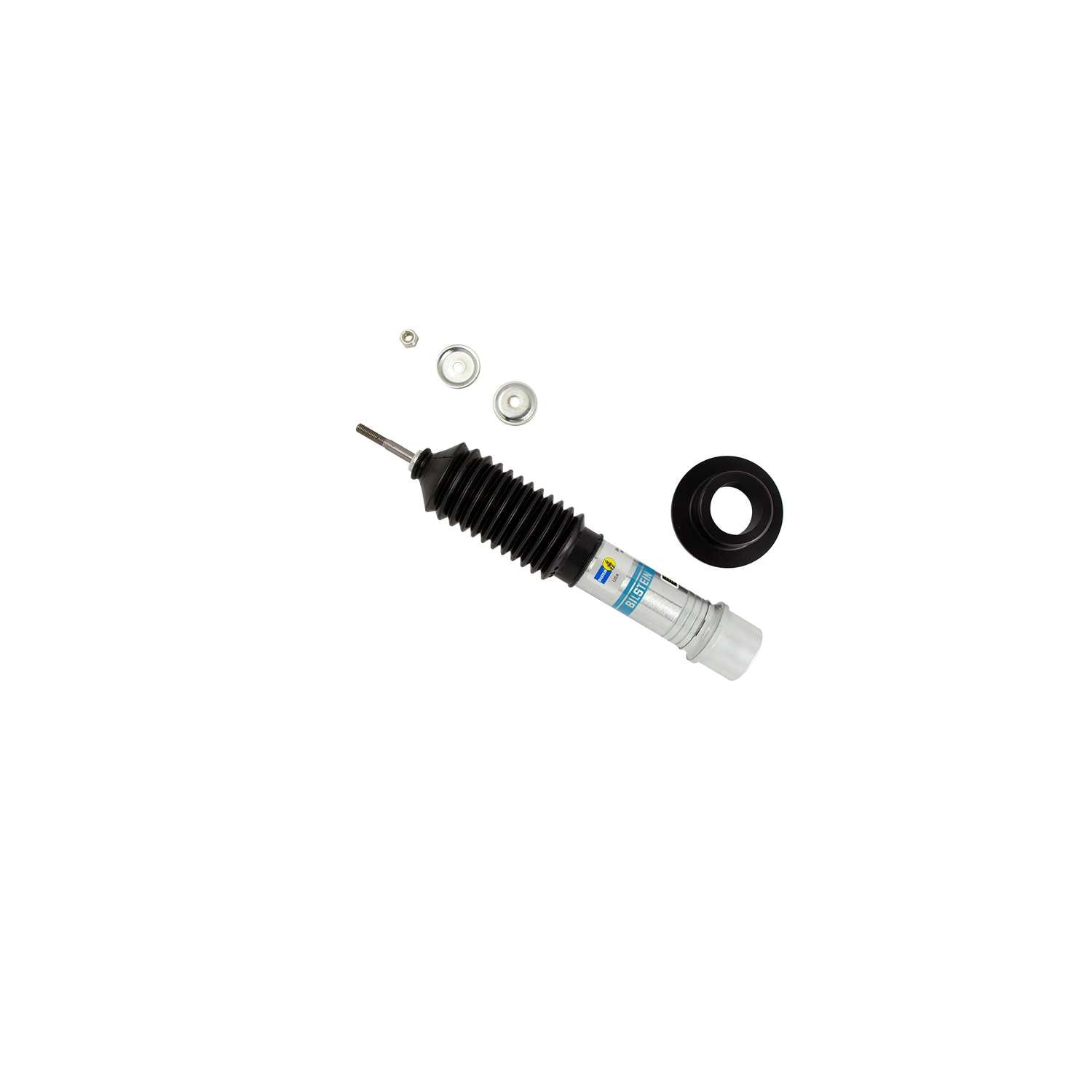

B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber - Bilstein - 24-282642

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.46mm monotube design ensures consistent fade-free performance in all conditions; Practical alternative to coil spring spacers with the benefit of Bilstein monotube technology; Adjustable spring seat offers 0-2.75in of lift depending on the application
Adjustable Damping: Non-Adjustable
Body Design: Snap Ring Grooved Body (Coilover)
Boot Included: Black Bellows
Collapsed Length (IN): 10.11
Collapsed Length (MM): 256.8
Extended Length (IN): 14.02
Extended Length (MM): 356.0
FAB: Adjustable spring seat offers 0-2.75in of lift depending on the application
FAB: Practical alternative to coil spring spacers with the benefit of Bilstein monotube technology
FAB: 46mm monotube design ensures consistent fade-free performance in all conditions
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Base Cup
PartType: Shocks / Struts
Piston Diameter: 46mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reservoir: No
Segment: Light Truck
Series: B8 5100 (Ride Height Adjustable)
Shaft Diameter: 14mm
Spring Seat Included: Yes
Stroke/Travel Length (IN): 3.88
Stroke/Travel Length (mm): 98.6
Title: Bilstein Shock Absorbers
Upper Mount Type: Stem

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Position 2002 Jeep Liberty Sport / Renegade / Limited Front 2003 Jeep Liberty Renegade / Limited / Sport Front 2004 Jeep Liberty Sport / Renegade / Limited Front 2005 Jeep Liberty Sport / Rocky Mountain Edition / Renegade / Limited Front 2006 Jeep Liberty Sport / Renegade / Limited / 65th Anniversary Edition Front 2007 Jeep Liberty Sport / Limited Front 2008 Jeep Liberty Sport / Limited Front 2009 Jeep Liberty Sport / Limited Front 2010 Jeep Liberty Sport / Renegade / Limited Front 2011 Jeep Liberty Sport / Renegade / Limited Front 2012 Jeep Liberty Sport / Limited / Jet Front
