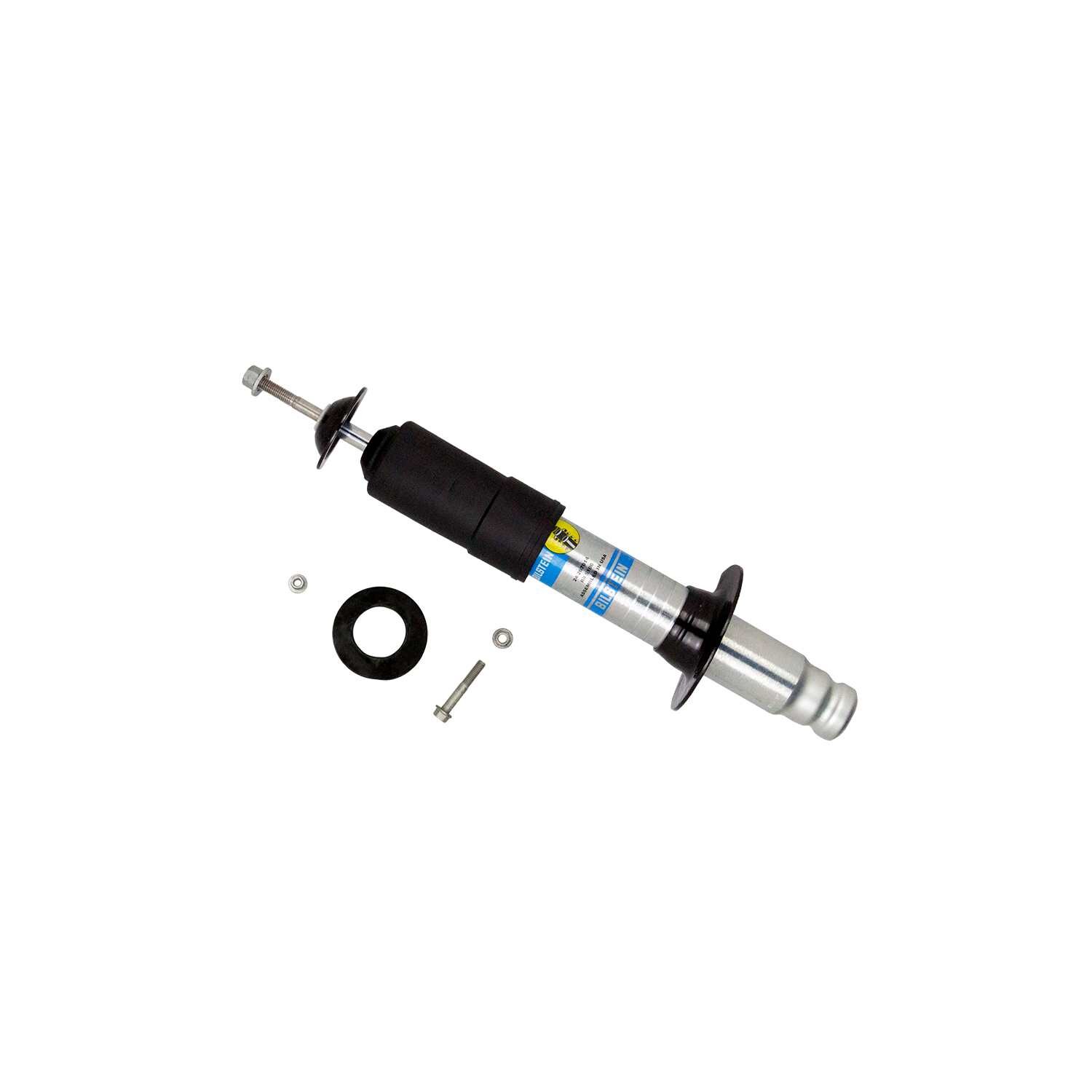

B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber - Bilstein - 24-267014

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.46mm monotube design ensures consistent fade-free performance in all conditions; Practical alternative to coil spring spacers with the benefit of Bilstein monotube technology; Adjustable spring seat offers 0-2.75in of lift depending on the application
Adjustable Damping: Non-Adjustable
Body Design: Snap Ring Grooved Body (Coilover)
Boot Included: Black Straight
Collapsed Length (IN): 11.26
Collapsed Length (MM): 286.1
Extended Length (IN): 16.41
Extended Length (MM): 416.9
FAB: Adjustable spring seat offers 0-2.75in of lift depending on the application
FAB: Practical alternative to coil spring spacers with the benefit of Bilstein monotube technology
FAB: 46mm monotube design ensures consistent fade-free performance in all conditions
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Base Cup
PartType: Shocks / Struts
Piston Diameter: 46mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reservoir: No
Segment: Light Truck
Series: B8 5100 (Ride Height Adjustable)
Shaft Diameter: 14mm
Spring Seat Included: Yes
Stroke/Travel Length (IN): 5.15
Stroke/Travel Length (mm): 130.8
Title: Bilstein Shock Absorbers
Upper Mount Type: Stem

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Position 2002 Chevrolet Trailblazer North Face / LTZ / LT / LS Front 2002 GMC Envoy SLT / SLE Front 2002 Oldsmobile Bravada Base Front 2002 GMC Envoy XL SLT / SLE Front 2002 Chevrolet Trailblazer EXT North Face / LT Front 2003 Isuzu Ascender Limited / LS / Base Front 2003 Chevrolet Trailblazer North Face / LTZ / LT / LS Front 2003 GMC Envoy SLT / SLE Front 2003 Oldsmobile Bravada Base Front 2003 GMC Envoy XL SLT / SLE Front 2003 Chevrolet Trailblazer EXT North Face / LT / LS Front 2004 Buick Rainier CXL / CXL Plus Front 2004 Chevrolet Trailblazer North Face / LT / LS Front 2004 GMC Envoy SLT / SLE Front 2004 Oldsmobile Bravada Base Front 2004 Isuzu Ascender S / Limited / LS Front 2004 GMC Envoy XL SLT / SLE Front 2004 Chevrolet Trailblazer EXT North Face / LT / LS Front 2005 Buick Rainier CXL / CXL Plus Front 2005 Chevrolet Trailblazer LT / LS Front 2005 GMC Envoy SLT / SLE / Denali Front 2005 Isuzu Ascender S / Limited / LS Front 2005 Saab 9-7x Linear / Arc Front 2005 GMC Envoy XL SLT / SLE / Denali Front 2005 Chevrolet Trailblazer EXT LT / LS Front 2006 Chevrolet Trailblazer LT / LS Front 2006 GMC Envoy SLT / SLE / Denali Front 2006 Buick Rainier CXL Front 2006 Isuzu Ascender LS / Base Front 2006 Saab 9-7x 5.3i / 4.2i Front 2006 GMC Envoy XL SLT / SLE / Denali Front 2006 Chevrolet Trailblazer EXT LT / LS Front 2007 Buick Rainier CXL Front 2007 Chevrolet Trailblazer LT / LS Front 2007 Saab 9-7x 5.3i / 4.2i Front 2007 GMC Envoy SLT / SLE / Denali Front 2007 Isuzu Ascender S Front 2008 Chevrolet Trailblazer LT / Base Front 2008 GMC Envoy SLT / SLE / Denali Front 2008 Saab 9-7x 5.3i / 4.2i Front 2008 Isuzu Ascender S Front 2009 Chevrolet Trailblazer LT Front 2009 GMC Envoy SLT / SLE / Denali Front 2009 Saab 9-7x 5.3i / 4.2i Front
