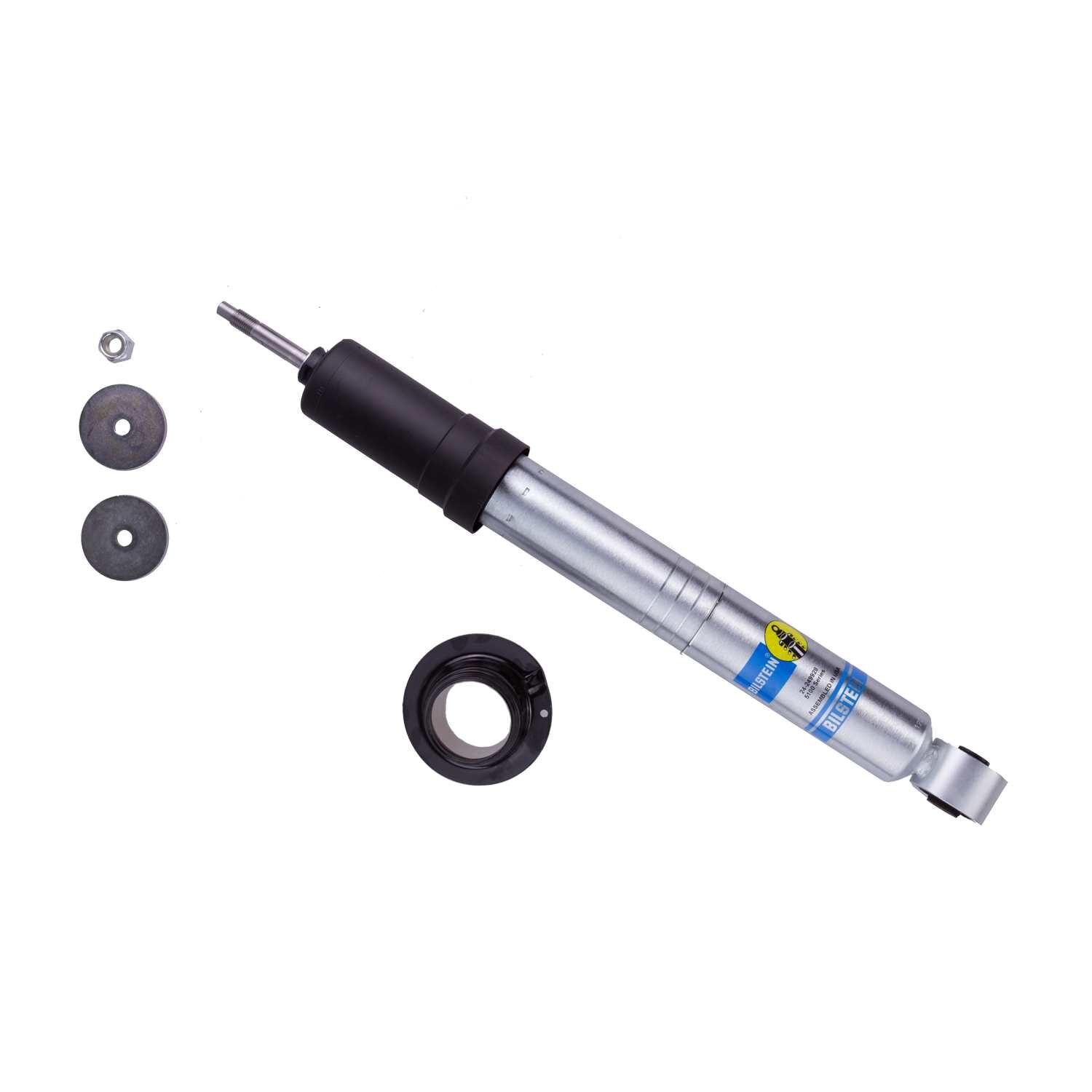

B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber - Bilstein - 24-249928

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.46mm monotube design ensures consistent fade-free performance in all conditions; Practical alternative to coil spring spacers with the benefit of Bilstein monotube technology; Adjustable spring seat offers 0-2.75in of lift depending on the application
Adjustable Damping: Non-Adjustable
Body Design: Snap Ring Grooved Body (Coilover)
Boot Included: Black Straight
Collapsed Length (IN): 13.86
Collapsed Length (MM): 352.0
Extended Length (IN): 18.66
Extended Length (MM): 474.0
FAB: Adjustable spring seat offers 0-2.75in of lift depending on the application
FAB: Practical alternative to coil spring spacers with the benefit of Bilstein monotube technology
FAB: 46mm monotube design ensures consistent fade-free performance in all conditions
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Eye 14.2mm
PartType: Shocks / Struts
Piston Diameter: 46mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reservoir: No
Segment: Light Truck
Series: B8 5100 (Ride Height Adjustable)
Shaft Diameter: 14mm
Spring Seat Included: Yes
Stroke/Travel Length (IN): 4.80
Stroke/Travel Length (mm): 121.9
Title: Bilstein Shock Absorbers
Upper Mount Type: Stem

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Position 1996 Toyota Tacoma SR5 / Base 4WD Front 1997 Toyota Tacoma SR5 / Base 4WD Front 1998 Toyota Tacoma Pre Runner / Limited / SR5 / Base 4WD Front 1999 Toyota Tacoma Pre Runner / Limited / SR5 / Base 4WD Front 2000 Toyota Tacoma Pre Runner / Limited / SR5 / Base 4WD Front 2001 Toyota Tacoma Pre Runner / Base 4WD Front 2002 Toyota Tacoma Pre Runner / Base 4WD Front 2003 Toyota Tacoma Pre Runner / Base 4WD Front 2004 Toyota Tacoma Pre Runner / Base 4WD Front
