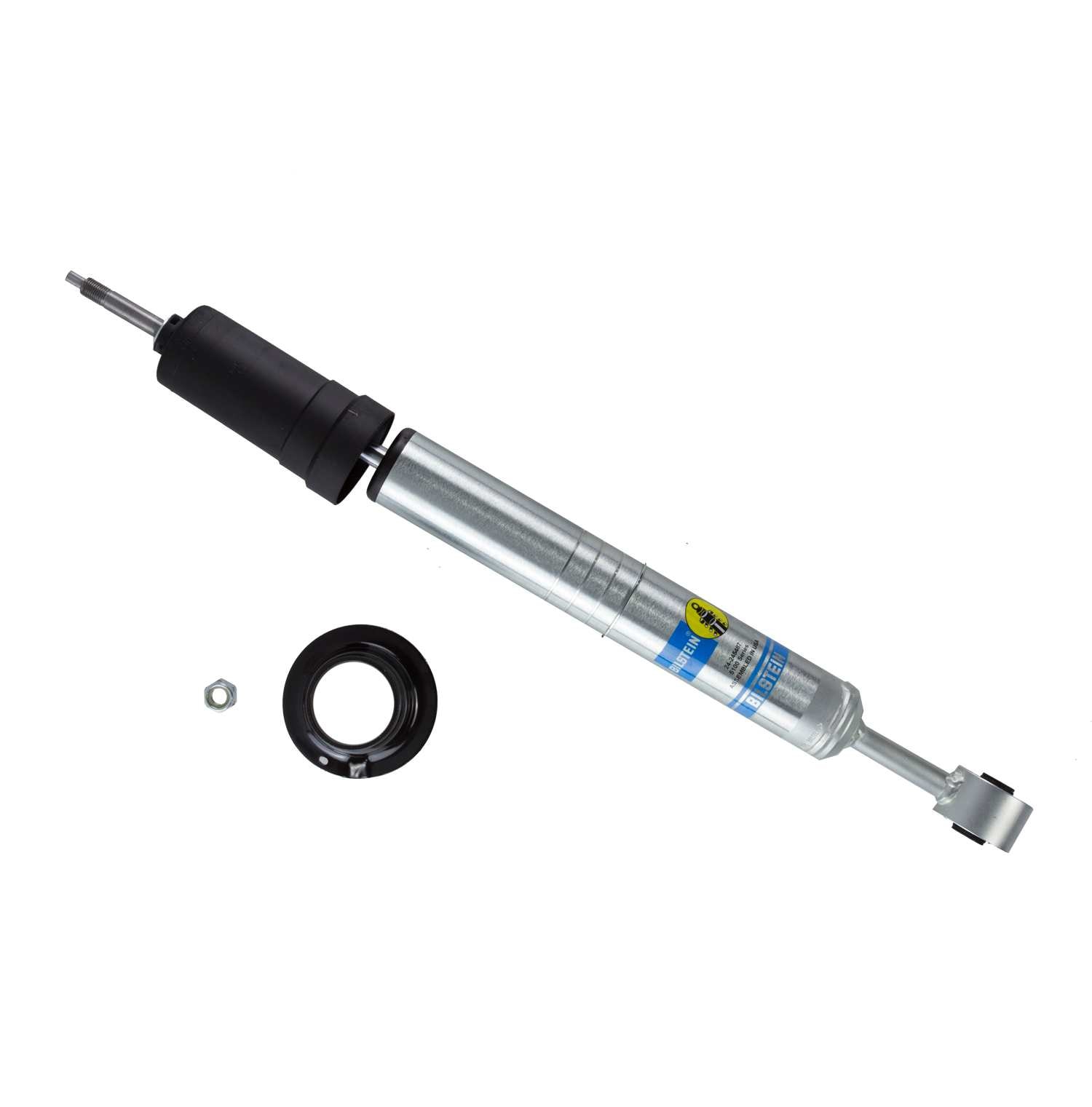

B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber - Bilstein - 24-245487

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.46mm monotube design ensures consistent fade-free performance in all conditions; Practical alternative to coil spring spacers with the benefit of Bilstein monotube technology; Adjustable spring seat offers 0-2.75in of lift depending on the application
Adjustable Damping: Non-Adjustable
Body Design: Snap Ring Grooved Body (Coilover)
Boot Included: Black Straight
Collapsed Length (IN): 17.03
Collapsed Length (MM): 432.5
Extended Length (IN): 22.59
Extended Length (MM): 573.7
FAB: Adjustable spring seat offers 0-2.75in of lift depending on the application
FAB: Practical alternative to coil spring spacers with the benefit of Bilstein monotube technology
FAB: 46mm monotube design ensures consistent fade-free performance in all conditions
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Eye 14.1mm
PartType: Shocks / Struts
Piston Diameter: 46mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reservoir: No
Segment: Light Truck
Series: B8 5100 (Ride Height Adjustable)
Shaft Diameter: 14mm
Spring Seat Included: Yes
Stroke/Travel Length (IN): 5.55
Stroke/Travel Length (mm): 141.0
Title: Bilstein Shock Absorbers
Upper Mount Type: Stem

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Position 2005 Toyota Hilux Base Standard Cab Pickup Front 2006 Toyota Hilux Base Standard Cab Pickup / Crew Cab Pickup Front 2007 Toyota Hilux Base Crew Cab Pickup Front 2008 Toyota Hilux Base Crew Cab Pickup Front 2009 Toyota Hilux Base Crew Cab Pickup Front 2010 Toyota Hilux SR Crew Cab Pickup Front 2011 Toyota Hilux SR Crew Cab Pickup Front 2012 Toyota Hilux SR / Base Crew Cab Pickup Front 2013 Toyota Hilux SR / Base Crew Cab Pickup / Standard Cab Pickup Front 2014 Toyota Hilux SR / Base Crew Cab Pickup / Standard Cab Pickup Front 2015 Toyota Hilux SR / Base Crew Cab Pickup / Standard Cab Pickup Front 2016 Toyota Hilux SR / Base Crew Cab Pickup / Standard Cab Pickup Front 2017 Toyota Hilux SR / Doble Cab / Base Crew Cab Pickup / Standard Cab Pickup Front 2018 Toyota Hilux SR / Doble Cab / Base Crew Cab Pickup / Standard Cab Pickup Front 2019 Toyota Hilux SR / Doble Cab / Base Crew Cab Pickup / Standard Cab Pickup Front 2020 Toyota Hilux SR / Doble Cab / Base Crew Cab Pickup / Standard Cab Pickup Front 2021 Toyota Hilux SR / Base Crew Cab Pickup / Standard Cab Pickup Front 2022 Toyota Hilux SR / Base Crew Cab Pickup Front 2023 Toyota Hilux SR / Cabina Sencilla / Base Crew Cab Pickup / Standard Cab Pickup Front 2024 Toyota Hilux TDI / SR / Base Crew Cab Pickup Front 2025 Toyota Hilux TDI / SR / MLM / DSL ADV 48V Hybrid / DSL 48V Hybrid / Base Crew Cab Pickup Front
