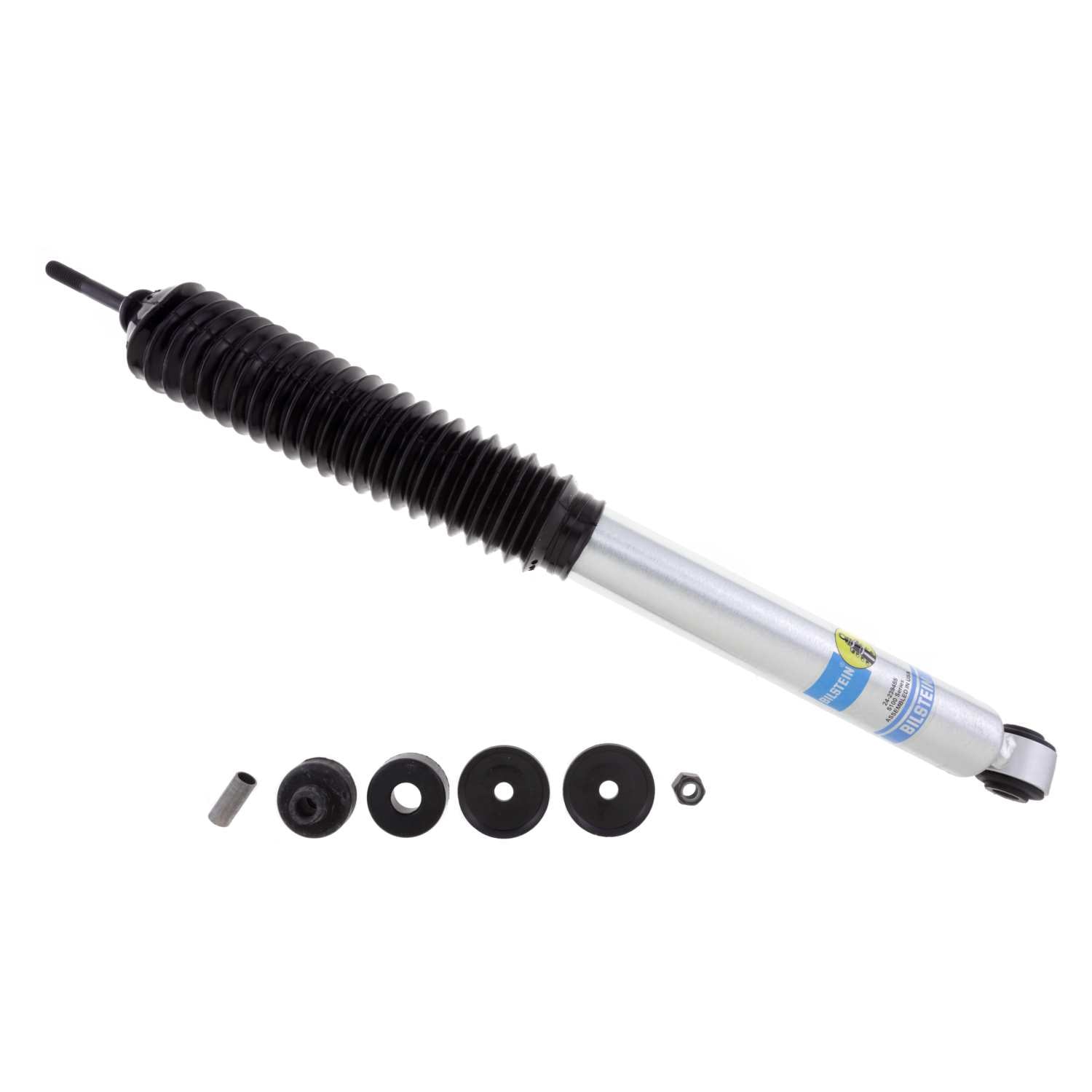

B8 5100 - Suspension Shock Absorber - Bilstein - 24-239455

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV-™s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique velocity sensitive digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality handling and comfort.46mm monotube design ensures consistent fade-free performance in all conditions; Patented digressive valving instantly reacts to changing surface conditions; Vehicle specific tuning
Adjustable Damping: Non-Adjustable
Body Design: Smooth Body (Non-Coilover)
Boot Included: Black Bellows
Collapsed Length (IN): 16.75
Collapsed Length (MM): 425.5
Extended Length (IN): 24.96
Extended Length (MM): 634.0
FAB: Vehicle specific tuning
FAB: Patented digressive valving instantly reacts to changing surface conditions
FAB: 46mm monotube design ensures consistent fade-free performance in all conditions
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Eye 14.1mm
PartType: Shocks / Struts
Piston Diameter: 46mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reservoir: No
Segment: Light Truck
Series: B8 5100
Shaft Diameter: 14mm
Spring Seat Included: No
Stroke/Travel Length (IN): 8.21
Stroke/Travel Length (mm): 208.5
Title: Bilstein Shock Absorbers
Upper Mount Type: Stem

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Position 2014 Ram 2500 Tradesman / SLT / Outdoorsman / Lone Star / Laramie / Laramie Longhorn / Laramie Limited / Big Horn 4WD Rear 2015 Ram 2500 Tradesman / SLT / Outdoorsman / Lone Star / Laramie / Laramie Longhorn / Laramie Limited / Big Horn 4WD Rear 2016 Ram 2500 Tradesman / SLT / Outdoorsman / Limited / Laramie / Laramie Longhorn / Big Horn 4WD Rear 2017 Ram 2500 Tradesman / SLT / Limited / Laramie / Laramie Longhorn / Big Horn 4WD Rear 2018 Ram 2500 Tradesman / SLT / Limited / Laramie / Laramie Longhorn / Big Horn 4WD Rear
