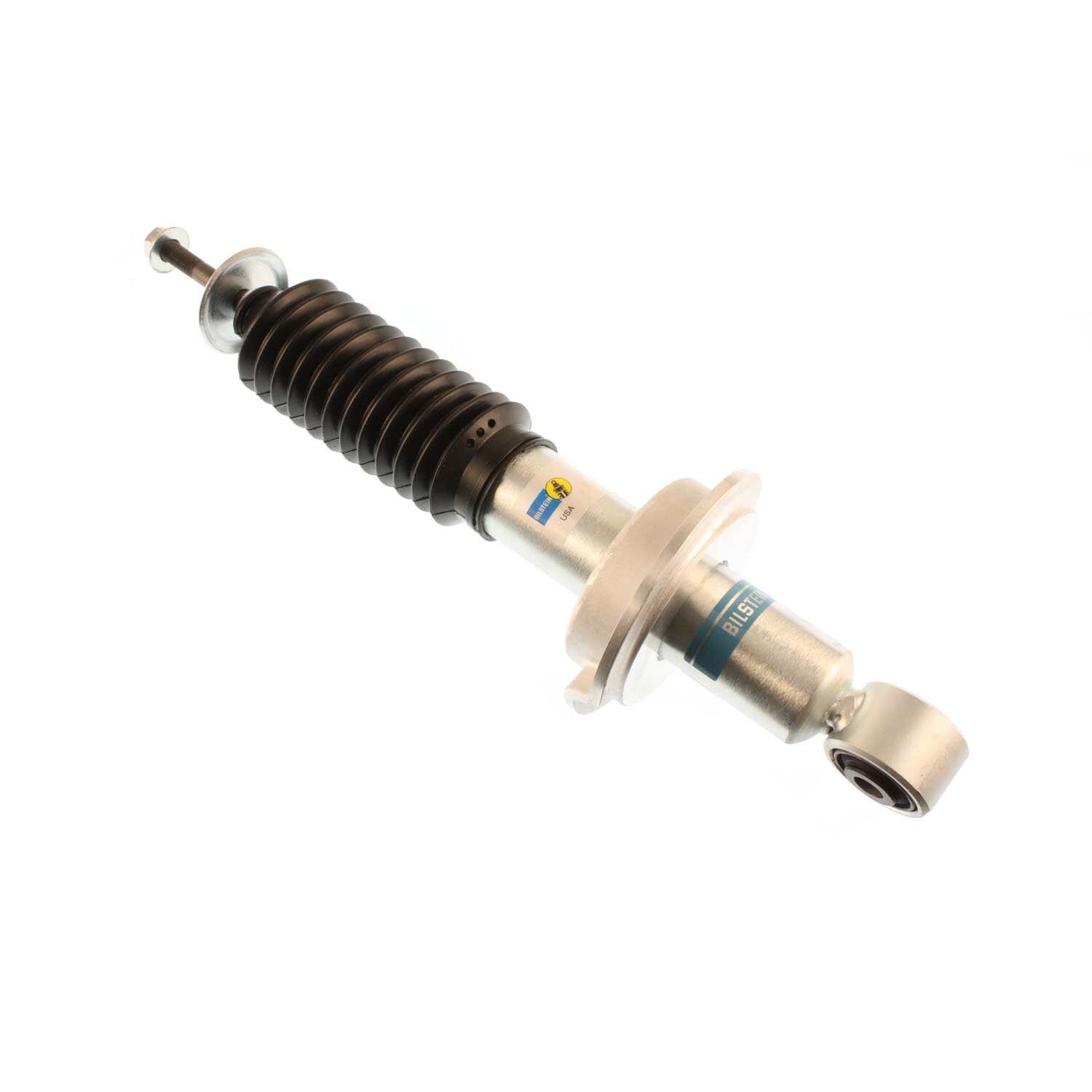

B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber - Bilstein - 24-197649

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.46mm monotube design ensures consistent fade-free performance in all conditions; Practical alternative to coil spring spacers with the benefit of Bilstein monotube technology; Adjustable spring seat offers 0-2.75in of lift depending on the application
Adjustable Damping: Non-Adjustable
Body Design: Snap Ring Grooved Body (Coilover)
Boot Included: Black Bellows
Collapsed Length (IN): 11.19
Collapsed Length (MM): 284.2
Extended Length (IN): 15.43
Extended Length (MM): 392.0
FAB: Adjustable spring seat offers 0-2.75in of lift depending on the application
FAB: Practical alternative to coil spring spacers with the benefit of Bilstein monotube technology
FAB: 46mm monotube design ensures consistent fade-free performance in all conditions
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Eye 14.2mm
PartType: Shocks / Struts
Piston Diameter: 46mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reservoir: No
Segment: Light Truck
Series: B8 5100 (Ride Height Adjustable)
Shaft Diameter: 14mm
Spring Seat Included: Yes
Stroke/Travel Length (IN): 4.24
Stroke/Travel Length (mm): 107.7
Title: Bilstein Shock Absorbers
Upper Mount Type: Stem

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Position 2004 Nissan Pathfinder Armada SE / LE Front 2004 Nissan TITAN XE / SE / LE Front 2004 INFINITI QX56 Base Front 2005 INFINITI QX56 Base Front 2005 Nissan Armada SE / SE Off-Road / LE Front 2005 Nissan TITAN XE / SE / LE Front 2006 Nissan Armada SE / SE Off-Road / LE Front 2006 Nissan TITAN XE / SE / LE Front 2006 INFINITI QX56 Base Front 2007 INFINITI QX56 Base Front 2007 Nissan Armada SE / LE Front 2007 Nissan TITAN XE / SE / LE Front 2008 INFINITI QX56 Base Front 2008 Nissan Armada SE / LE Front 2008 Nissan TITAN XE / SE / PRO-4X / LE Front 2009 Nissan Armada SE / LE Front 2009 Nissan TITAN XE / SE / PRO-4X / LE Front 2009 INFINITI QX56 Base Front 2010 INFINITI QX56 Base Front 2010 Nissan Armada Titanium / SE / Platinum Front 2010 Nissan TITAN XE / SE / PRO-4X / LE Front 2011 Nissan Armada SV / SL / Platinum Front 2011 Nissan TITAN SV / SL / S / PRO-4X Front 2012 Nissan Armada SV / SL / Platinum Front 2012 Nissan TITAN SV / SL / S / PRO-4X Front 2013 Nissan Armada SV / SL / Platinum Front 2013 Nissan TITAN SV / SL / S / PRO-4X Front 2014 Nissan Armada SV / SL / Platinum Front 2014 Nissan TITAN SV / SL / S / PRO-4X Front 2015 Nissan Armada SV / SL / Platinum Front 2015 Nissan TITAN SV / SL / S / PRO-4X Front
