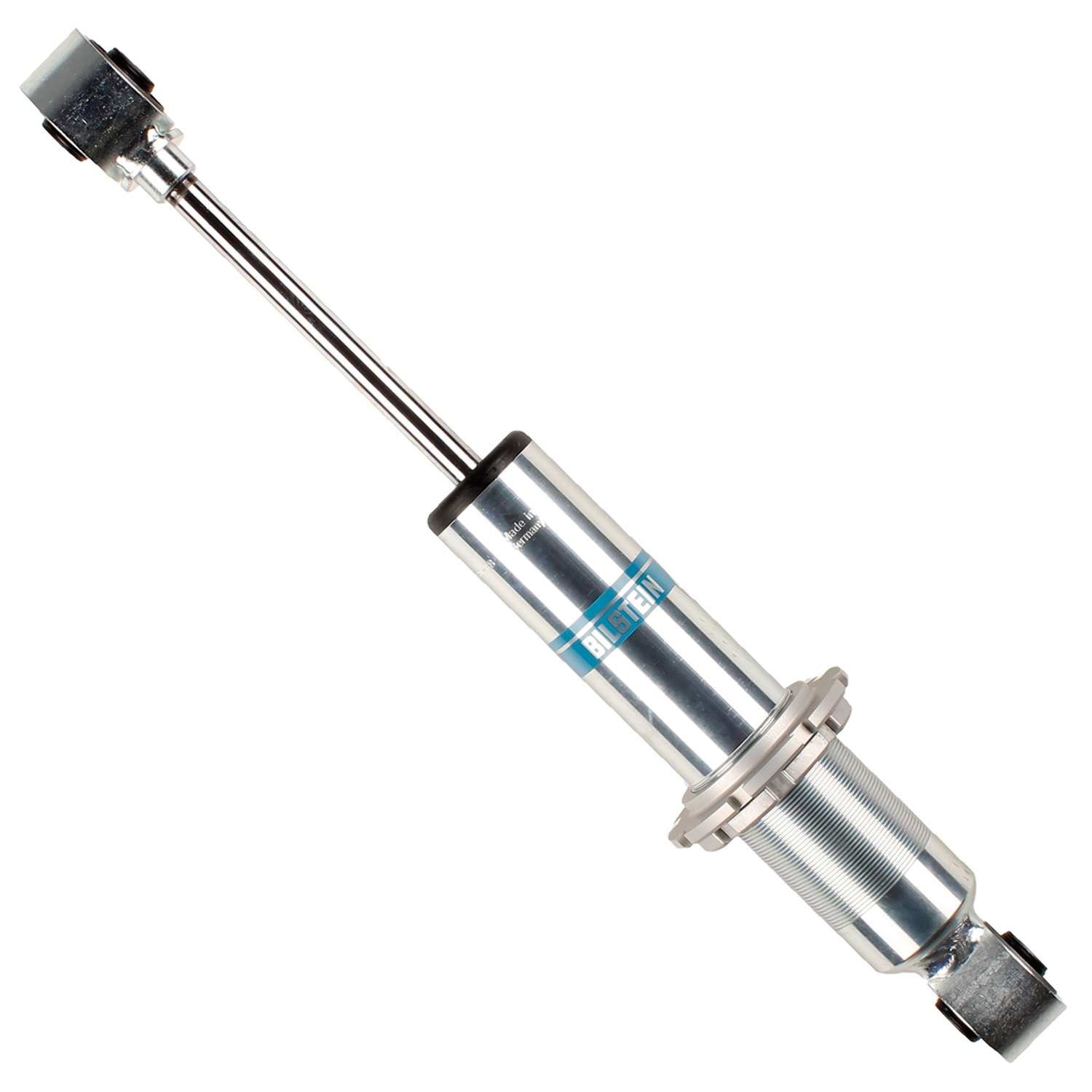

M 7100 Classic (Coilover) - Suspension Shock Absorber - Bilstein - 24-186520

Bilstein M 7100 Classic (Coilover) is designed for custom off-road motorsports and recreational applications. These coilovers are factory rebuildable and feature a fully threaded non-reservoir shock body. Each coilover is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 Classic (Coilover) is offered in a 10 inch travel stroke and come with 2.5 inch ID single rate spring hardware. For custom light weight applications M7100 Classic (Coilover) will deliver reliable performance.46mm monotube design ensures consistent fade-free performance in all conditions; Available for standard and coilover applications in a wide variety of lengths; Self-adjusting deflective disc valving
Body Design: Threaded Body (Coilover)
Collapsed Length (IN): 12.34
Collapsed Length (MM): 313.5
Compression @0.52m/s: 965
Extended Length (IN): 18.22
Extended Length (MM): 463.0
FAB: Self-adjusting deflective disc valving
FAB: Available for standard and coilover applications in a wide variety of lengths
FAB: 46mm monotube design ensures consistent fade-free performance in all conditions
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Eye 14.2mm
Mount Type: Eye-to-Eye
Optional Reservoir Clamp: N/A
PartType: Shocks / Struts
Piston Diameter: 46mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Rebound @0.52m/s: 3030
Reservoir: No
Segment: Motorsports
Series: M 7100 Classic (Coilover)
Shaft Diameter (mm): 14.0
Spring Hardware: Single Rate (2.5in)
Spring Seat Included: Lower
Stroke/Travel Length (IN): 5.90
Stroke/Travel Length (mm): 149.9
Title: Bilstein Shock Absorbers
Upper Mount Type: Eye 14.2mm
