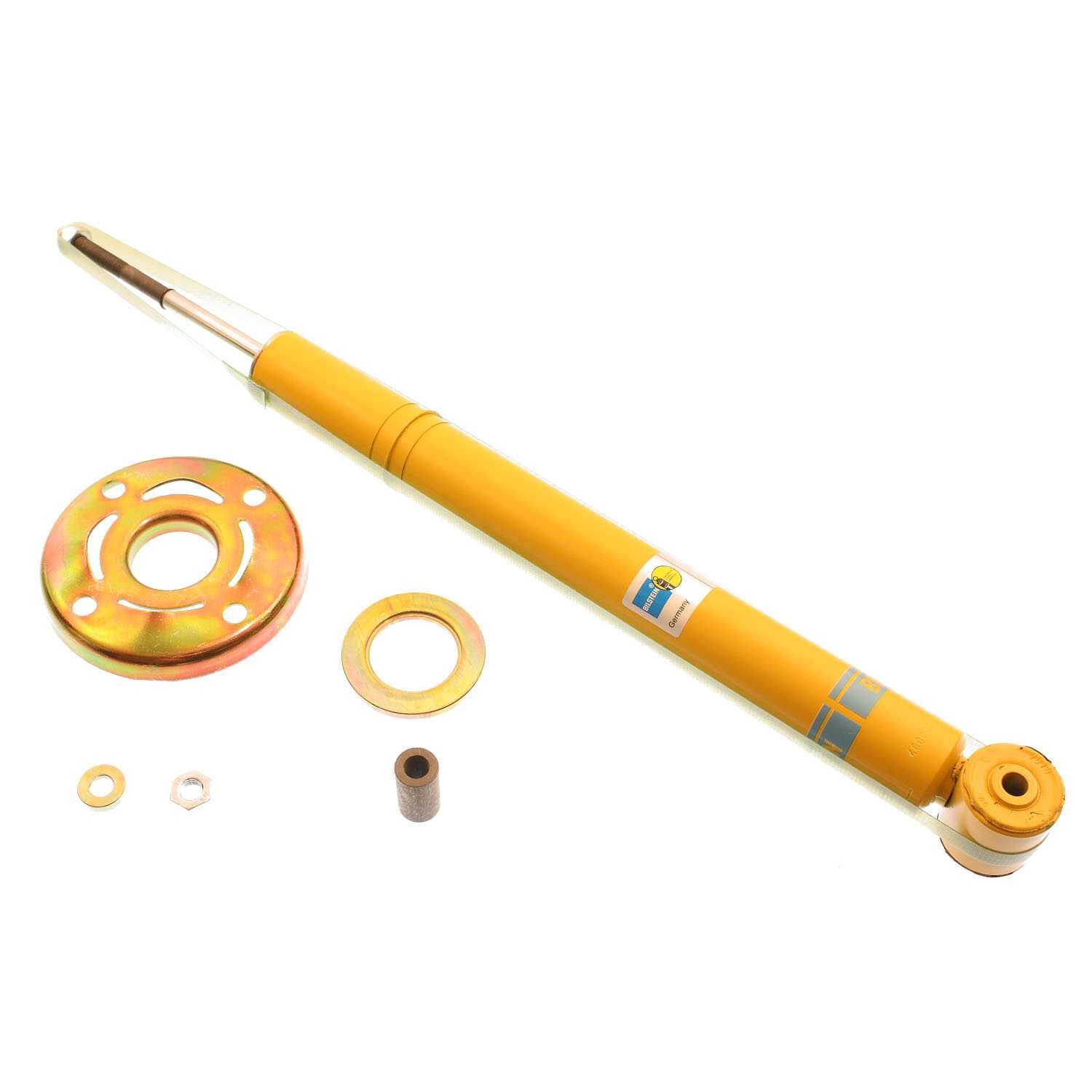

Motorsports - Suspension Shock Absorber - Bilstein - 24-006552

Bilstein Motorsports dampers are designed as a direct fit solution for a variety of motorsports applications. Each damper features monotube technology with proprietary spring steel valve discs tuned specifically to each application for superior on-track handling and control. Bilstein Motorsports dampers are ideal for racers requiring a direct fit solution with true race-proven performance.Monotube design ensures consistent fade-free performance in all conditions; Larger working piston with deflective disc valving; Available in steel and aluminum bodies
Adjustable Damping: Non-Adjustable
Body Design: Smooth Body (Non-Coilover)
Body Material: Steel
Boot Included: No
Collapsed Length (IN): 16.61
Collapsed Length (MM): 422.0
Compression @0.52m/s: 905
Extended Length (IN): 24.70
Extended Length (MM): 627.5
FAB: Available in steel and aluminum bodies
FAB: Larger working piston with deflective disc valving
FAB: Monotube design ensures consistent fade-free performance in all conditions
Finish: Yellow Paint
Internal Design: Monotube
Lower Mount Type: Eye 10.2mm
PartType: Shocks / Struts
Piston Diameter: 36mm
Piston Type: Linear
Position: Rear
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Rebound @0.52m/s: 2280
Segment: Motorsports
Series: Motorsports
Shaft Diameter: 11mm
Spring Hardware: N/A
Spring Seat Included: Yes
Stroke/Travel Length (IN): 8.09
Stroke/Travel Length (mm): 205.5
Title: Bilstein Shock Absorbers
Upper Mount Type: Stem

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Position 1985 Volkswagen Golf GTI / Base Rear 1986 Volkswagen Golf GTI / Base Rear 1987 Volkswagen Golf GTI / GTI 16-Valve / GT / GL Rear 1988 Volkswagen Golf GTI 16-Valve / GT / GL / Base Rear 1989 Volkswagen Golf GTI 16-Valve / GL / Base Rear 1990 Volkswagen Golf GTI 8-Valve / GTI 16-Valve / GL Rear 1991 Volkswagen Golf GTI 8-Valve / GTI 16-Valve / GL Rear 1992 Volkswagen Golf GTI 8-Valve / GTI 16-Valve / GL Rear
