Remaster Master Cylinder 2-Bolt GM/Ford Polished Polished Finish Left Port 1.000 Inch Bore - BAER Brakes - 6801213LP

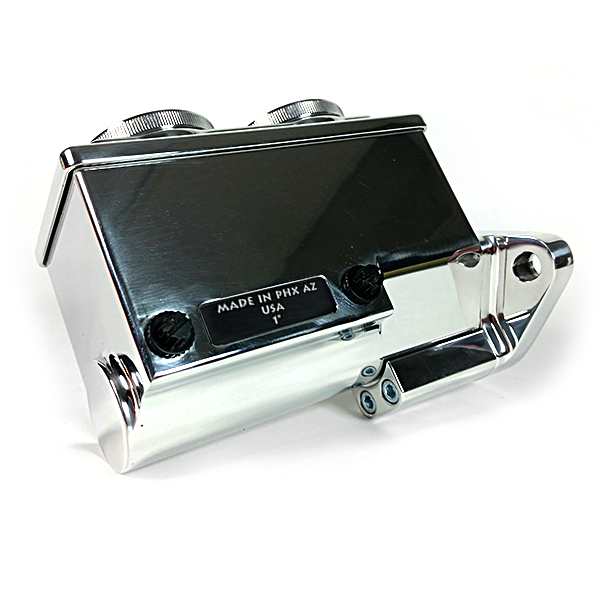

This Remaster master cylinder features a small, compact, 1-piece body machined out of 6061 T6 billet aluminum with a 1 inch bore, left side ports and a 2-bolt mounting flange fitting many Ford and GM applications. The billet top is attached with 6 allen screws and has two large billet aluminum, knurled screw-on caps making for easy filling without spillage.
The unique outlet port design allows for either inverted flare (w/included removable seats) or banjo style, straight fittings. The Remaster is compatible on most long and short, w/included bullet, boosters or manual brake applications.
Optional proportioning valves also available
Features and Benefits:
2-Bolt Gm/Ford Firewall Mounting Bracket
Fully machined 6061 T6 billet aluminum construction
Unique 3/8-24 outlet port design allows for either inverted flare (w/included removable seats), banjo style or straight fittings.
Left Side Ports
Machined and knurled screw-on caps for easy access to fill without spillage
Anodized Remasters feature laser-etched logos
Ships in 1 Box
ReMaster 2-Bolt Gm/Ford Master Cyl Assembly, polished, 1in. bore, left port. Please note, some long push-rod hydro-boost and vacuum boosters may require an additional spacer, p/n 6260258, to space the Remaster away from the booster push-rod.
Details:
Area: 0.78
Bleeder Hoses Included: No
Bleeder Screw Included: No
Bore Size: 1
Box Count: 1
Brake Booster Included: No
Brake Pressure Switch(s) Included: No
Connector For Warning Light: No
Emission Code: 6
Export Description: Brake Components
Fittings Included: Yes
Flange Type: 2 Bolt GM/Ford
Gasket Or Seal Included: No
Grade Type: Premium
Includes: 1x Master Cylinder Assembly, 2 Brass Seats, 2 Tube Nuts
Master Cylinder Cap Included: Yes
Master Cylinder Material: 6061 T6 Billet Aluminum
Master Cylinder Outlet Port Fittings: Banjo w/o Brass Seat, 3/16 Inch Inverted Flare and Tube Nuts w/ Brass Seat
Master Cylinder Outlet Port Quantity: 2
Master Cylinder Outlet Port Size: 3/8/-24 Inch
Master Cylinder Port Exit: Left Side
Mounting Hardware Included: No
Quantity: Sold Individually
Remaster Body Color: Polished
Remaster Body Finish: Polished
Remaster Caps Color: Polished
Remaster Caps Finish: Polished
Remaster lid Color: Polished
Remaster lid Finish: Polished
Removable Seats: Yes
Reservoir Included: Yes
Reservoir Material: 6061 T6 Billet Aluminum
Reservoir Size: 7oz per reservoir, Fill to 75 percent or 5.25oz per reservoir
Reservoir Style: Integral
Reservoir Type: Dual
Sensor Included: No
Series: ReMaster
Stroke: 1.1
Volume Ratio: 0.0840277777777778
