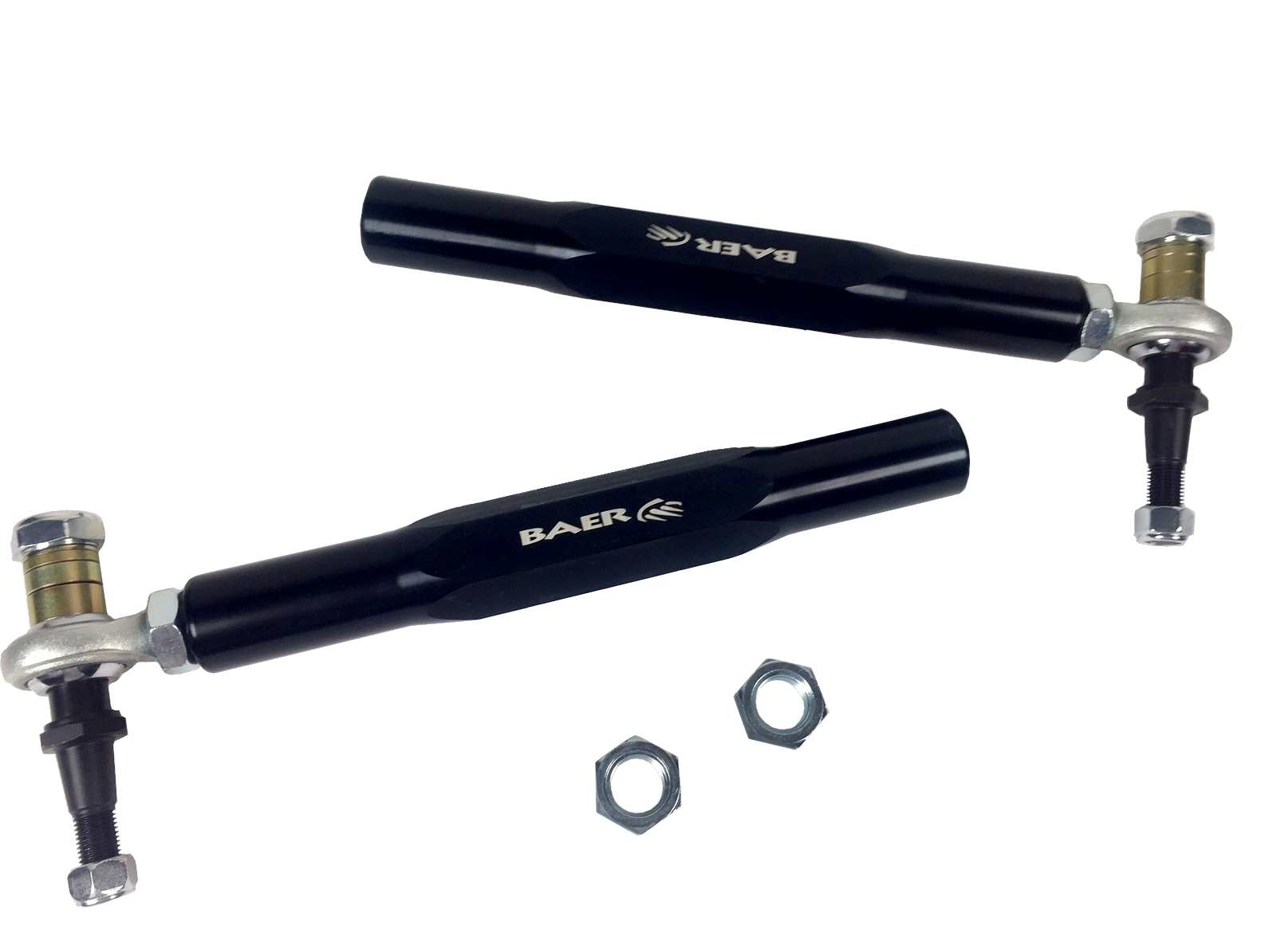

Tracker Adjustable Front Tie Rods Bump Steer Kit For 73-77 GM A-Body - BAER Brakes - 3301013

The Baer Tracker adjustable tie-rods feature 6061 T-6 aluminum, fully machined sleeve with a black anodized finish, a Teflon lined 5/8 inch heim joint and 4140 steel pin which. The pin is machined with the correct taper so no modification to the OE spindles is required and then heat treated.
875 inch of adjustment at the spindle to help correct bump steer issues due to modified suspensions and/or poor OE design. Best of all these are made in the USA!
Features and Benefits:
Direct bolt on upgrade
Black E-Coated for Rust Protection
Fully adjustable
Simple installation
Tapered pin for No spindle modifications
Vehicle specific
Ships in 1 Box
Tracker tie rod set Front 1973-1977 GM A-Body OE spindles Notes With OE spindle/Tracker tie rod set Front 1971-1972 GM A-Body With B-Body spindle conversion Notes With B-Body spindle conversion/Tracker tie rod set Front 1980-1981 GM Camaro V6 Notes 6 cyl only/Tracker tie rod set Front 1976-1981 GM Firebird All Notes With OE spindle/Tracker tie rod set Front 1975-1975 GM Firebird All Notes 2nd design, with OE spindle 8.75 inch eye of ball to end of sleeve
Details:
Adjustable: Yes
Adjusting Sleeve Included: Yes
Adjustment Range: 0.875
Applications: 1975 Pontiac Firebird with stock spindles Note: There are 2 Factory Tie Rods on the 1975 Firebird. This Tracker is for the late design with OE outer end measuring 8.750 Inch from center of bowl to end of tie rod., 1973-77 GM A-Body cars with stock spindles, 1976-81 Pontiac Firebird with stock spindles, 1971-72 GM A-Body cars with GM B-Body spindles, 1980-81 Chevrolet Camaro 6 cylinder only with stock spindles
Axle: Front
Box Count: 1
Castle Nut Included: No
Color: Black
Cotter Pin Included: No
Dust Boot Included: No
Emission Code: 6
End 1 Gender: Female
End 2 Gender: Female
Export Description: Suspension Components
Finish: Black e-coated
Grade Type: Premium
Grease Fitting Included: No
Greaseable: Yes
Head Drive Type: Hex
Heim Joint: Teflon lined 5/8-� heim joint
Housing Material: 6061 T-6 Aluminum
Includes: 2x Tie Rods
Inner Sleeve Thread Size: 11/16 Inchx18 Lh Thread
Locking Nut Included: Yes
Manufacturer Restriction: None
Mounting Hardware Included: Yes
Outer Sleeve Thread Size: 5/8 Inchx18 Rh Thread
Pre-Greased: Yes
Quantity: 1
Reinforced: Yes
Sleeve Length: 9.7
Steering Type: Manual
Thread Direction: Right Hand Thread
Tie Rod Material: 6061 T-6 Aluminum
Tube Diameter: 5/8 Inch
Type: Straight
Washer(s) Included: Yes
