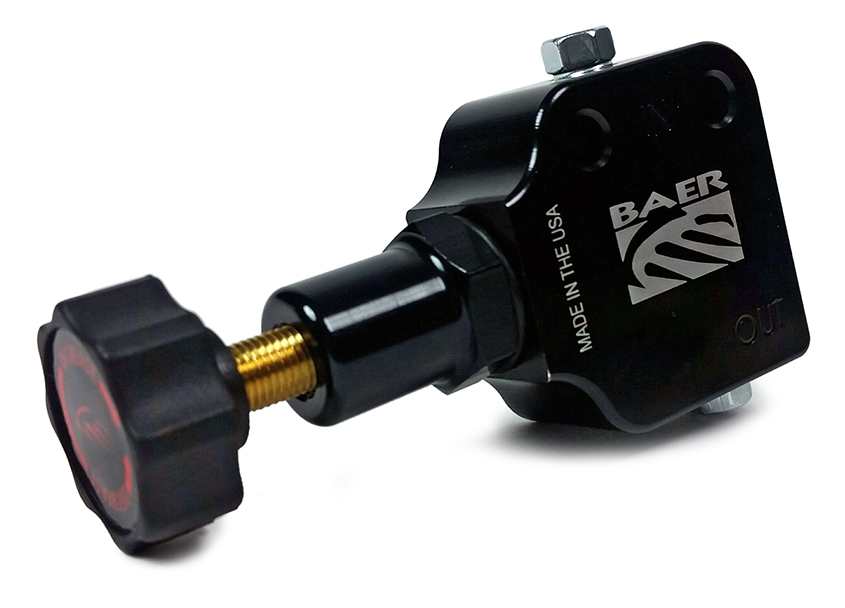

Black General Fit Adjustable Proportioning Valve, Inline, With 3/8-24 Fittings - BAER Brakes - 2000035

A Proportioning valve is recommended on 4 wheel disc brake applictions without ABS. This valve allows you to adjust the increase rate of the line pressure to the rear wheels for optimum overall braking performance with a trun of the knob.
Featuring removable brass seats that when installed create a 3/16 inch inverted flare seat or when removed can accept banjo or straight 3/8-24 fittings. The valve includes 2) brass seats and 2) 3/8 inch x 24 tube nuts.
Features and Benefits:
Includes tube nuts and brass seats
3/8-24 Thread, Iff w/included seats, Straight (Banjo) w/o seats
Compatible with most brake systems
Made in the USA
Laser etched body
Sold Individually
Details:
Adjustment Style: Knob
Box Count: 1
Color: Black
Connector For Warning Light: No
Emission Code: 6
Export Description: Brake Components
Finish: Black anodized
Fittings Included: Yes
Grade Type: Premium
Includes: 1x Proportioning Valve, 2x Brass Seats, 2x Tube Nuts
Inlet Fitting: 3/16 Inch Inverted Flare and Tube Nuts w/ Brass Seat, Banjo w/o Brass Seat
Inlet Port Inside Diameter: 3/8-24 Inch
Inlet Port Quantity: 1
Material: Aluminum
Mounting Bracket Included: No
Mounting Hardware Included: No
Mounting Hole Quantity: 2
Outlet Fitting: 3/16 Inch Inverted Flare and Tube Nuts w/ Brass Seat, Banjo w/o Brass Seat
Outlet Port Inside Diameter: 0.375, 3/8
Outlet Port Quantity: 1
Outlet Port Size: 3/8-24 Inch
Port Exit: In-line
Quantity: Sold Individually
Removable Seats: Yes
Series: Remaster
Valve Type: Adjustable
