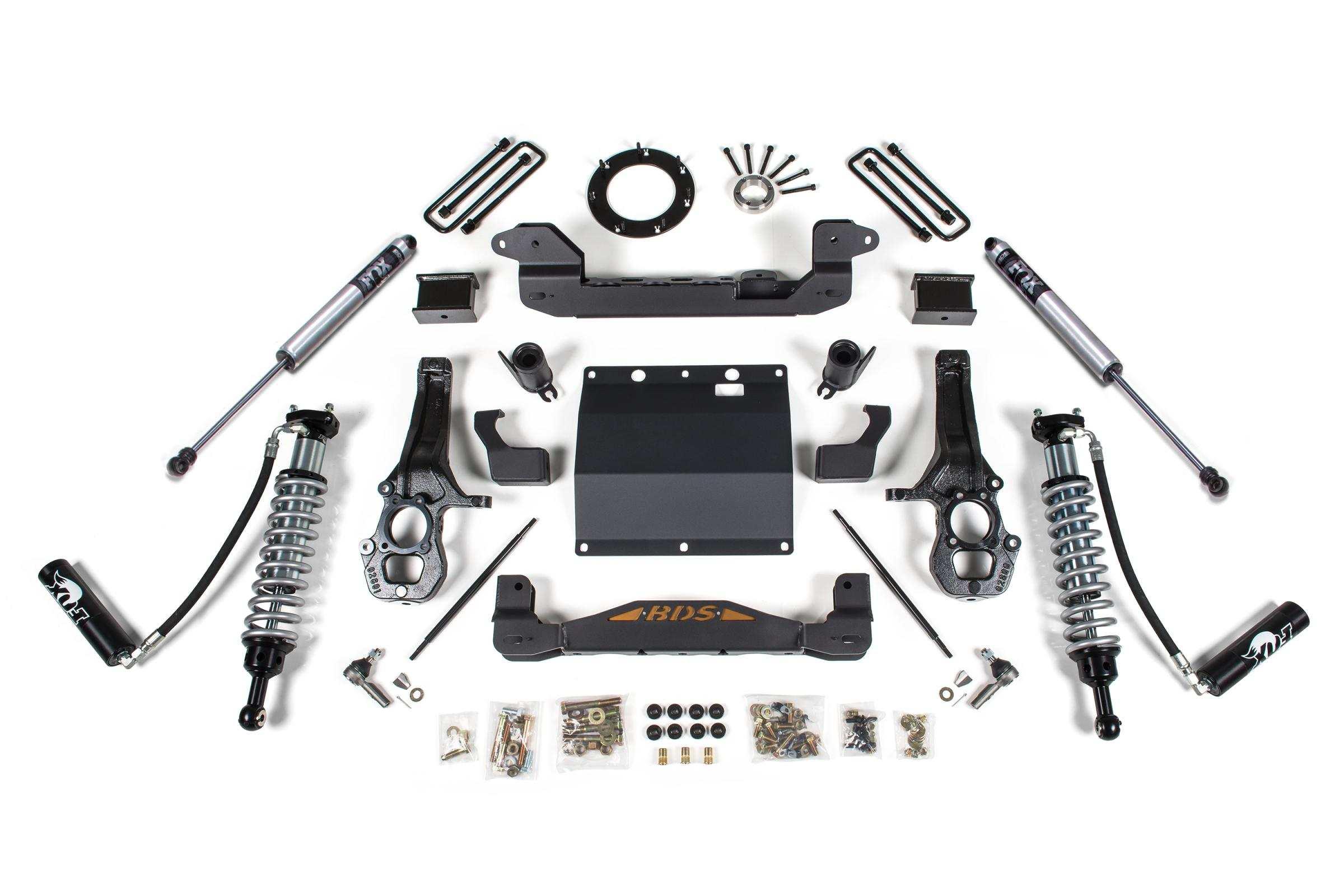

5.5 Inch Lift Kit - FOX 2.5 Coil-Over - Chevy Colorado or GMC Canyon (15-22) 4WD

Built to outperform upgrade your Chevy Colorado and GMC Canyon 4WD truck by installing a 5.5-inch suspension lift kit with FOX 2.5 Coil-over shocks by BDS. Designed to improve stance performance and capability this kit includes everything necessary to set your truck up right with clearance for up to 33" tires. These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increase travel and the ability to soak up the roughest terrain along with smooth on-road comfort.; This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes FOX 2.5 coil-over shocks high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar links bump stop extensions CV spacers supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.; In the rear BDS offers a heavy duty fabricated lift block to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts and precision tuned FOX 2.0 Performance Series shocks for the best ride on and off road.; FOX 2.5 Coil-Overs; FOX 2.5 coil-overs offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box these bolt-on 2.5-inch diameter coil-overs are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.; High Clearance Crossmembers; BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.; Heavy Duty Steering Knuckles; BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.R or CR):CR;Prop 65 Short Label:WARNING: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov;Prop 65 Warning Label:p65.jpg;Prop 65 Yes/No:Yes;Title:5.5 Inch Lift Kit - FOX 2.5 Coil-Over - Chevy Colorado or GMC Canyon (15-22) 4WD;Installation Time:8 Hrs;Installation Difficulty:difficult;Installation Tools:Cut Off Wheel or Equiv-saw reciprocating-welder;Rear Lift Height:4 IN;Front Lift Method:Coil Over;Rear Lift Method:Block Kit;Front Lift Height:5_5 IN;Coil Over Option:FOX 2 5 Coil Overs with DSC Adjuster;Shocks Included:Yes
