4 Inch Lift Kit w/ Radius Arm | FOX 2.5 Performance Elite Coil-Over Conversion | Ford F350 Super Duty DRW (20-22) 4WD | Diesel - BDS Suspension - BDS1971FPE

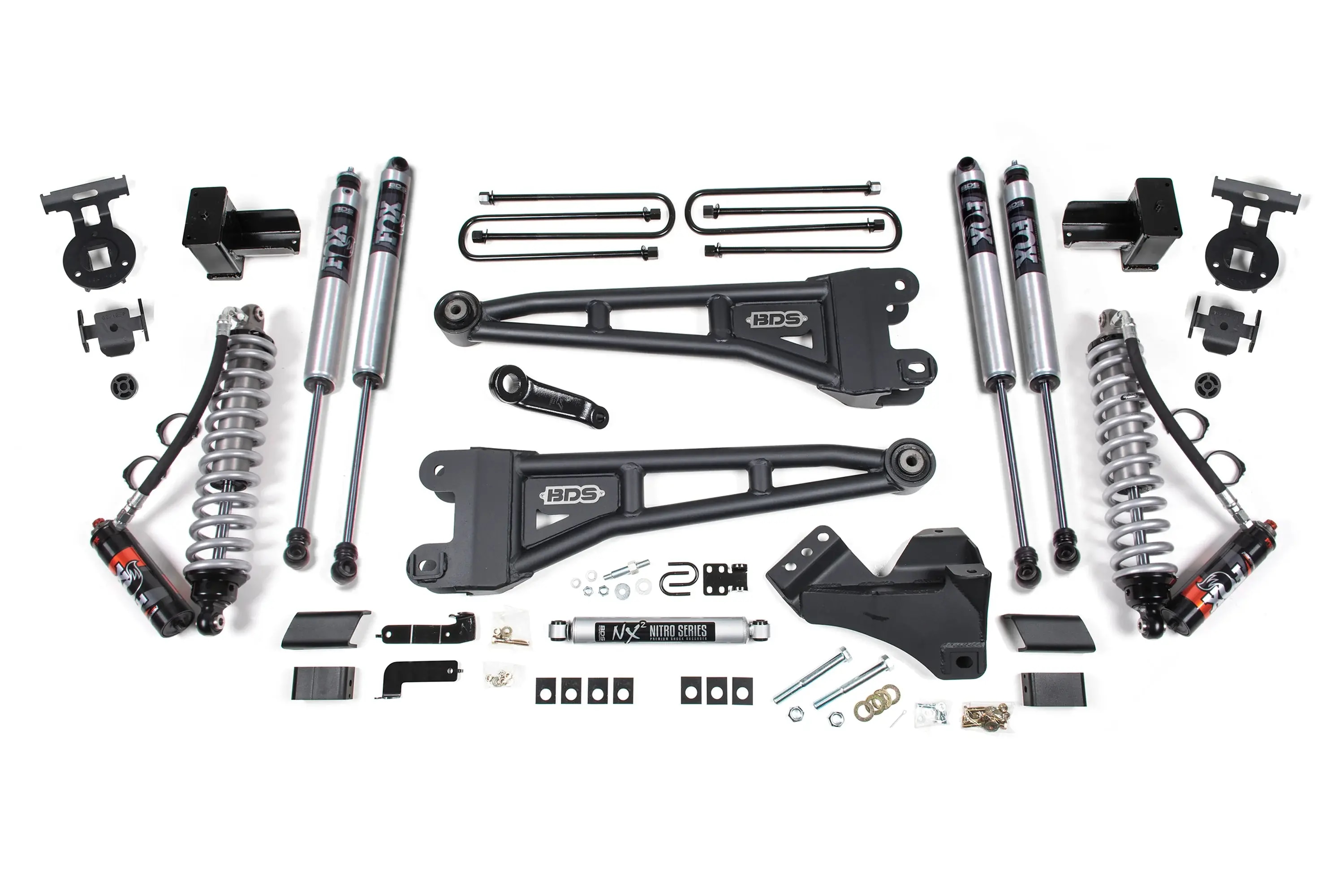

Built to outperform, upgrade your Ford F350 Dually Super Duty diesel powered truck with this 4-inch radius arm lift kit and FOX 2.5 Performance Elite Coil-over conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your dually truck up right with clearance for up to 37" tires.
Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, heavy duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of FOX Performance shocks.
FOX Performance Elite Coil-Over
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Features & Benefits
FOX 2.5 Coil-Over mounts in factory coil bucket location
Adds additional secondary FOX 2.0 shock for max performance
Eibach coil springs ride smooth through the roughest terrain
Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
Fabricated steel blocks provide level stance from front to rear
FOX shocks are fully serviceable and resistant to corrosion and harsh environments
Recommended Tires & Wheels
(Trimming may be required)
37 x 12.5 with and in. Backspace
Auxiliary Front and Rear Shock Option
FOX 2.5 Performance Elite Series
Increased off-road capabilities
Easily adjust your shock for terrain, load and speed
2.5-inch Impact extruded aluminum body
Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
External reservoir design separates shock oil from the high-pressure nitrogen
DSC - Dual Speed Compression Adjuster comes standard
Fully serviceable for a lifetime of use
1-year Manufacturer's Warranty
