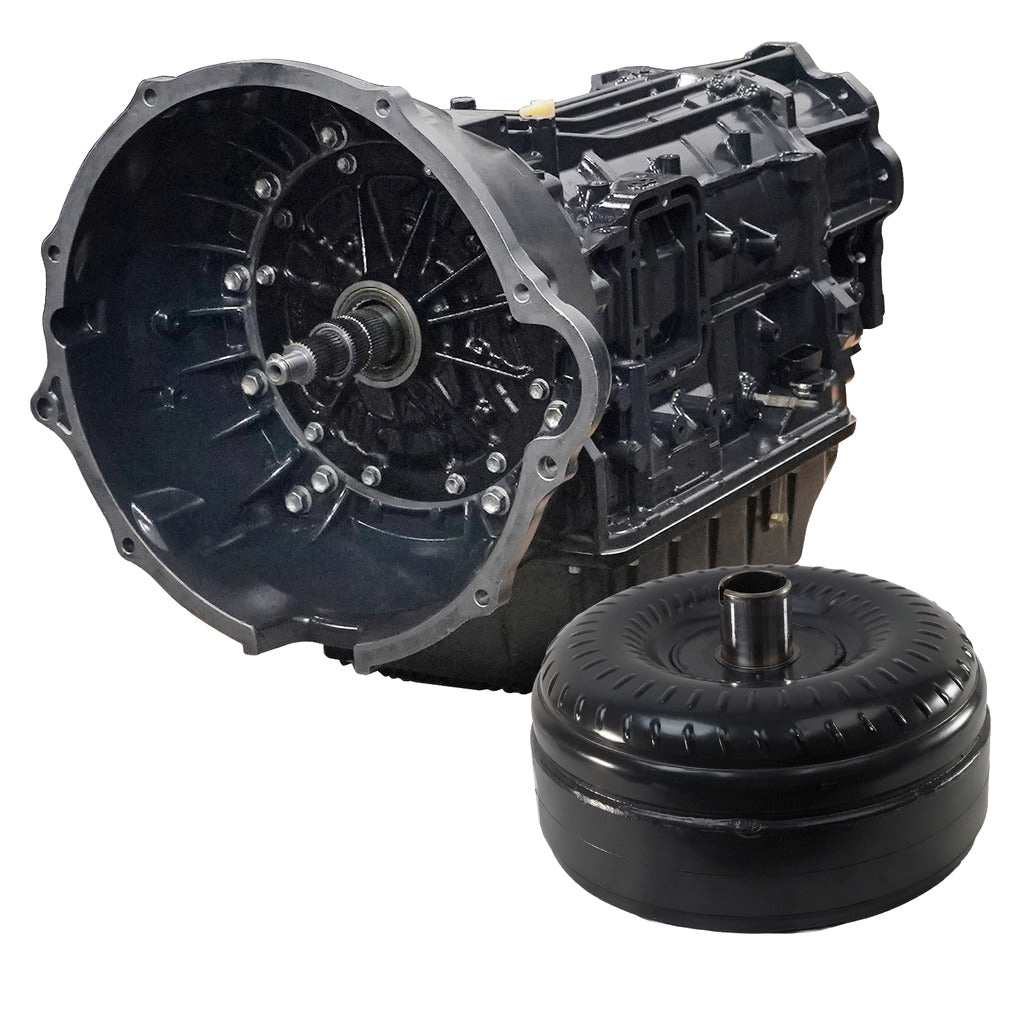

TORQUEMASTER TRANSMISSION & CONVERTER PACKAGE AISIN AS69RC RAM 3500/4500/5500 6.7L 2019-2024 - 2WD - BD Diesel - 1065022SM

Features
TRANSMISSION
BD exclusive billet nitride-coated K2 hub resolves the notorious clutch tooth wear issue on AS69RC transmissions
Billet K3 drum increases clutch capacity while also increasing rigidity and strength to resist ring groove failure
Billet clutch apply pistons in K2 and K3 for increased rigidity and reduced flex
More clutches compared to stock and competitors to increase clutch torque capacity and durability
Clutch Count K1: 7
Clutch Count K2: 8 (33% increase over stock)
Clutch Count K3: 7 (40% increase over stock)
Clutch Count B1: 6 (20% increase over stock)
Clutch Count B2: 9
Increased valve body line pressure for increased clutch holding capacity
BD deep sump pan increases fluid capacity by 3.5 qts for better fluid life and cooling
Nitrile pan and PTO gaskets prevent leaks common with OEM cork gaskets
BD PROFORCE TORQUE CONVERTER
Increased torque capacity (10 TCC plates, OEM 6)
Billet 4140 Cover, Piston, and Hub
Billet 4140 Turbine Hub
Upgraded TCC frictions and steels
New Sprag, seals and O-rings
Rebuilt Stator
About This Product
The 2019-2024 AS69RC is only found in the Ram 3500-5500 with the 6.7L diesel; many of these trucks are modified and therefore require a performance transmission to help deliver this power to the road. Friction counts have been increased in K2, K3, and B1 clutch packs to improve transmission torque capacity. To handle this increased torque capacity, the Torquemaster utilizes a custom billet nitride K2 hub and a billet K2 apply piston, which resists excessive spline wear found on the factory K2 hub. A billet K3 hub and piston are used in the K3 pack for increased durability, alongside the 40% increase in clutches. The billet K3 drum also resists ring grooving far better than the factory drum. Frictions used in aftermarket rebuilds commonly compromise shift quality; in all BD AS69s, frictions have been custom-selected to maintain OEM shift quality. Leak-prone factory cork gaskets on the pan and PTO have been replaced with improved nitrile gaskets. The AS69RC Torquemaster also includes a BD Deep Pan and ProForce 10D Billet Torque Converter.
Warranty and Notes
Install Time
INSTALL TIME8 Hours 30 Minutes
Warranty
WARRANTYParts36-MonthsLabor12-Months
Notes
NOTEPlease confirm which side the PTO provision is on before ordering.Replaces OEM Part #'s: (2WD) 68533455AB, 68452394AE, 68452392AE, 68533457AB, 68533467AA, 68452714AEReplaces OEM Part #'s: (4WD) 68498560AA, 68498560AB, 68452393AE, 68533456AA, 68533466AA, 68498557AA, 68498557AB, 68282715AE, 68458821AA, 68533540AB
