Out of Stock
BD DieselSKU: BSD-BD-1065004PTOSS

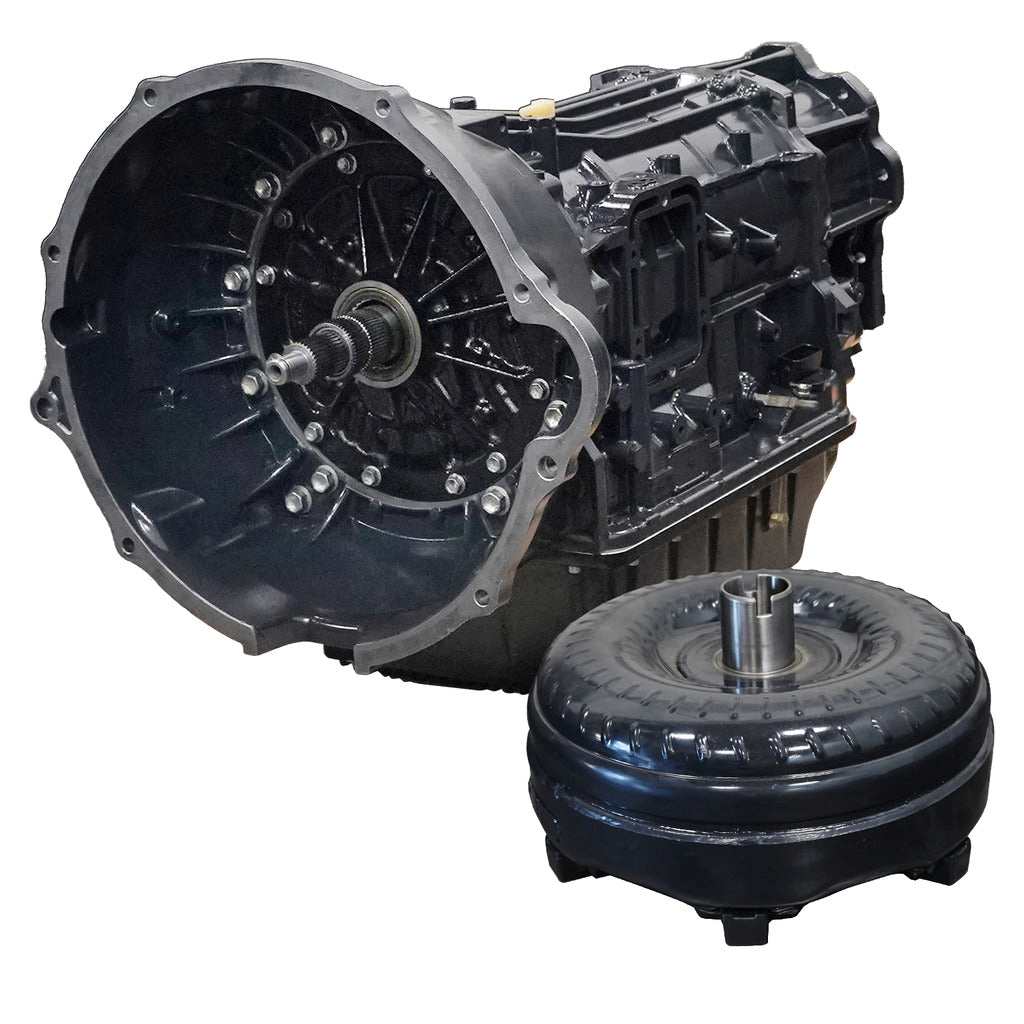

ROADMASTER TRANSMISSION & CONVERTER PACKAGE AISIN AS69RC RAM 3500/4500/5500 6.7L 2019-2024 - 4WD Right Hand PTO - BD Diesel - 1065004PTOSS
$9,230.00
Shipping Estimate
Enter destination details for an instant shipping estimate. Final rates are confirmed at checkout.
Description
Features
TRANSMISSION
BD Billet nitride-coated K2 hub resolves the notorious clutch tooth wear issue on AS69RC transmissions
Increased valve body line pressure for increased clutch holding capacity
Custom selected frictions ensures OEM shift quality unlike many other aftermarket offerings
Nitrile pan and PTO gaskets prevent leaks common with OEM cork gaskets
Stock transmission clutch counts
BD PROFORCE TORQUE CONVERTER
New Clutches for reliable, strong converter clutch apply (3 frictions and 3 steels)
New sprag for reliable stator operation
Cost-effective OEM replacement to accompany a transmission replacement
About This Product
The 2019-2024 AS69RC is only found in the Ram 3500-5500 with the 6.7L diesel and is known to be a strong option in stock form. However; the AS69RC is susceptible to excessive spline wear on the K2 hub, which has been corrected with The BD Custom nitride billet hub. The Roadmaster is designed to handle the output of the stock engine but mitigate the factory failure points. Frictions used in aftermarket rebuilds commonly compromise shift quality; frictions in all BD AS69s have been custom-selected to maintain smooth reliable shift quality. The valve body in the AS69 has been upgraded with a stiffer pressure regulator spring to increase maximum line pressure for increased clutch apply. Leak-prone factory cork gaskets on the pan and PTO have been replaced with improved nitrile gaskets to seal up the new BD Deep Pan. The AS69RC Roadmaster Aisin includes an OE style ProForce torque converter.
Warranty and Notes
Install Time
INSTALL TIME8 Hours 30 Minutes
Warranty
WARRANTYParts24-MonthsLabor12-Months
Notes
NOTEPlease confirm which side the PTO provision is on before ordering.Replaces OEM Part #'s: 2WD: 68533455AB, 68452394AE, 68452392AE, 68533457AB, 68533467AA, 68452714AEReplaces OEM Part #'s: 4WD PTO: 68458821AA, 68533540ABReplaces OEM Part #'s: 4WD: 68498560AA, 68498560AB, 68452393AE, 68533456AA, 68533466AA, 68498557AA, 68498557AB, 68282715AE
Emissions
TRANSMISSION
BD Billet nitride-coated K2 hub resolves the notorious clutch tooth wear issue on AS69RC transmissions
Increased valve body line pressure for increased clutch holding capacity
Custom selected frictions ensures OEM shift quality unlike many other aftermarket offerings
Nitrile pan and PTO gaskets prevent leaks common with OEM cork gaskets
Stock transmission clutch counts
BD PROFORCE TORQUE CONVERTER
New Clutches for reliable, strong converter clutch apply (3 frictions and 3 steels)
New sprag for reliable stator operation
Cost-effective OEM replacement to accompany a transmission replacement
About This Product
The 2019-2024 AS69RC is only found in the Ram 3500-5500 with the 6.7L diesel and is known to be a strong option in stock form. However; the AS69RC is susceptible to excessive spline wear on the K2 hub, which has been corrected with The BD Custom nitride billet hub. The Roadmaster is designed to handle the output of the stock engine but mitigate the factory failure points. Frictions used in aftermarket rebuilds commonly compromise shift quality; frictions in all BD AS69s have been custom-selected to maintain smooth reliable shift quality. The valve body in the AS69 has been upgraded with a stiffer pressure regulator spring to increase maximum line pressure for increased clutch apply. Leak-prone factory cork gaskets on the pan and PTO have been replaced with improved nitrile gaskets to seal up the new BD Deep Pan. The AS69RC Roadmaster Aisin includes an OE style ProForce torque converter.
Warranty and Notes
Install Time
INSTALL TIME8 Hours 30 Minutes
Warranty
WARRANTYParts24-MonthsLabor12-Months
Notes
NOTEPlease confirm which side the PTO provision is on before ordering.Replaces OEM Part #'s: 2WD: 68533455AB, 68452394AE, 68452392AE, 68533457AB, 68533467AA, 68452714AEReplaces OEM Part #'s: 4WD PTO: 68458821AA, 68533540ABReplaces OEM Part #'s: 4WD: 68498560AA, 68498560AB, 68452393AE, 68533456AA, 68533466AA, 68498557AA, 68498557AB, 68282715AE
Emissions
