BD DieselSKU: BSD-BD-1064984SS

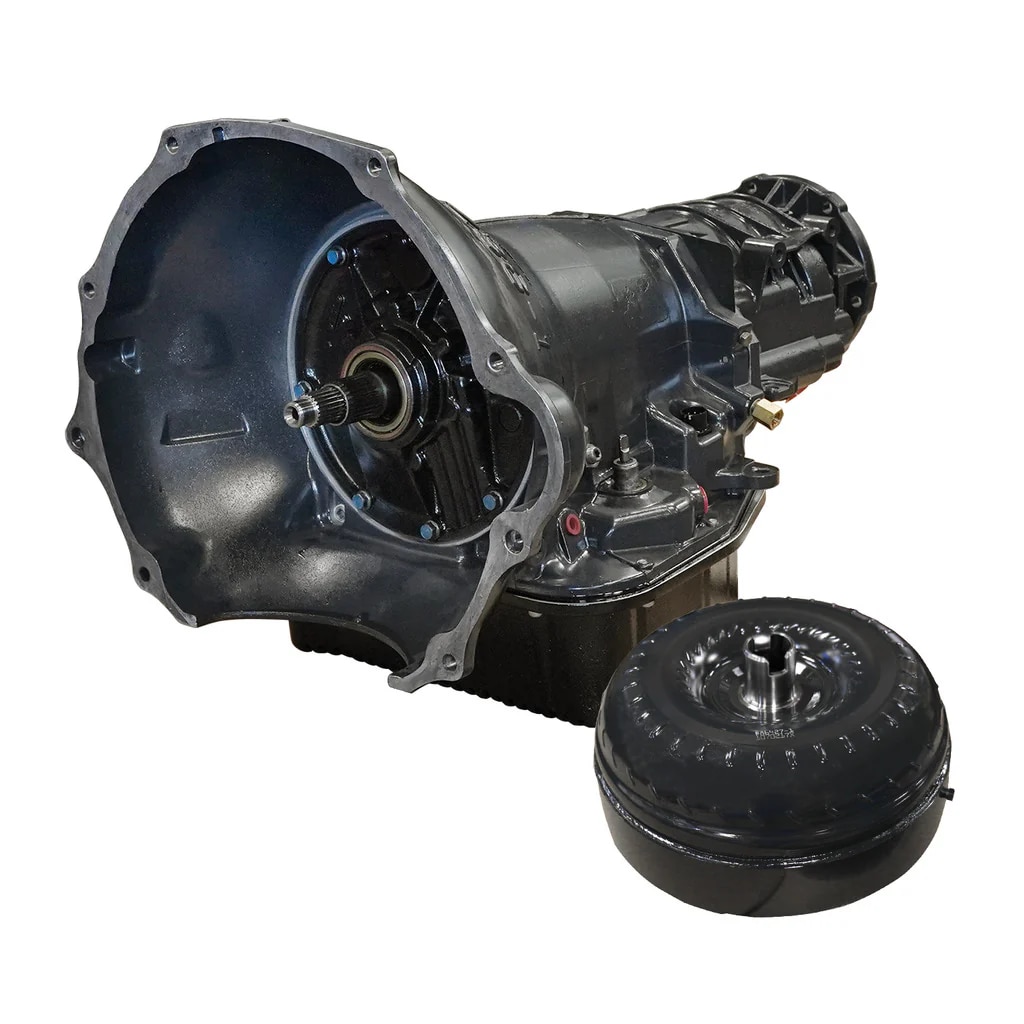

ROADMASTER TRANS PACKAGE 47RE DODGE RAM 2500/3500 5.9L CUMMINS 98.5-99 - 4WD - BD Diesel - 1064984SS
$6,425.00
Shipping Estimate
Enter destination details for an instant shipping estimate. Final rates are confirmed at checkout.
Description
Fully remanufactured 47RE transmission featuring the BD Valve Body! The BD Valve Body has many modifications to improve shift quality and extend transmission life. The RoadMaster transmission also includes a deep sump oil pan for increased fluid capacity and cooling. Combining the upgraded VB with increased line pressure and a ProForce torque converter, the BD Roadmaster 47RE transmission is a reliable upgrade for stock or mildly upgraded 5.9L Cummins-equipped Dodge Ram 2500/3500 series trucks.
FEATURES
TRANSMISSION:
Upgraded Valve Body
Upgraded Pressure Transducer and PR Valve - Increased line pressure (200 psi)
BD Custom Separator Plate & Upgraded Shift Springs – Eliminate Shuttle Shifting
Modified Manual Valve - Lubrication in all positions
Clutch Count: DIRECT 5 (same as OE)
Clutch Count: FORWARD 4 (same as OE)
Clutch Count: OD 5 (same as OE)
Clutch Count: OD DIRECT 10 (same as OE)
Billet Band Strut – Increased Kickdown Durability
Cooler Line Case Saver – Prevent case failure due to incorrect cooler line install
Deep Sump Pan - 2 more qts of oil helps to extend the lifespan of your oil and improves cooling performance
BD PROFORCE TORQUE CONVERTER:
Enhanced Stall Torque Converter with Cast Aluminum Stator
Stamp Forged Steel Front Cover and Furnace Brazed Turbine Fins
Billet Steel Piston for Reduced Deflection
INSTALL TIME
7 Hours 30 Minutes
WARRANTY
Parts
24-Months
Labor
12-Months
