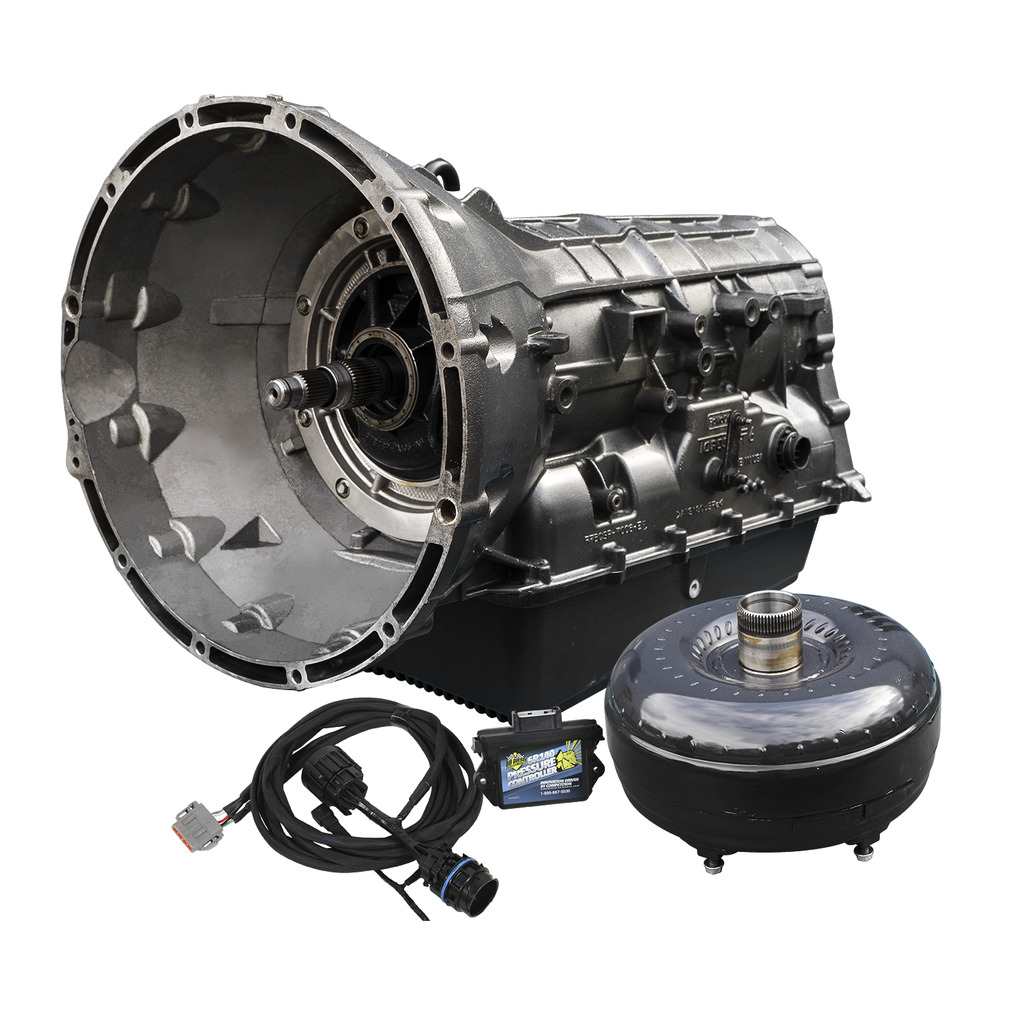

Roadmaster 6R140 2WD/4WD Transmission & Converter Package Ford 6.7L Powerstroke 2011-2016

The Roadmaster 6R140 transmission is BD's base transmission for stock, non-modified trucks that are looking to increase reliability and longevity. This transmission comes with OEM clutch counts, an OEM valve body, and BD's Deep Transmission Pan. Every one of our 6R140 Roadmaster Transmission Packages includes a ProForce Torque Converter and a BD Pressure Controller.
FEATURES

TRANSMISSION:
Brand new OEM valve body
BD Deep Sump Pan
Stock Clutch Counts
PRESSURE CONTROLLER:
76% more clutch holding power
Delivers up to 300psi line pressure at WOT
Only active when boost over 15psi, unlike solenoid foolers or plugs which are active all the time
Does not create parasitic load or extra heat when inactive
TORQUE CONVERTOR:
Ideal replacement for tired stock torque converter
Great for street and towing applications
Dual surface clutch assembly
Machined steel reaction ring replaces flexible factory stamping
Furnace-brazed pump and turbine fins
Fully remanufactured for long service life
INSTALL TIME

12 Hours
Will need Ford Scanner
WARRANTY

Parts
24-Months
Labour
12-Months
Note
No Race abuse covered
NOTE

2WD applications require the yoke adapter and rear mount bracket be transferred over during installation
Early 2011 model years will require 6 bolt flexplate (Approx. Pre Jan 2012 build date) See BD #1041245 or contact Ford
Ford scanner required to update the TCM with the new solenoid code and initiate a relearn - very critical component to make sure the transmission works properly
Transmission is compatible with both 2wd and 4wd applications
