BD Diesel 1064144SS BD RoadMaster Dodge 48RE Transmission & Converter Package - 2003-2004 4wd

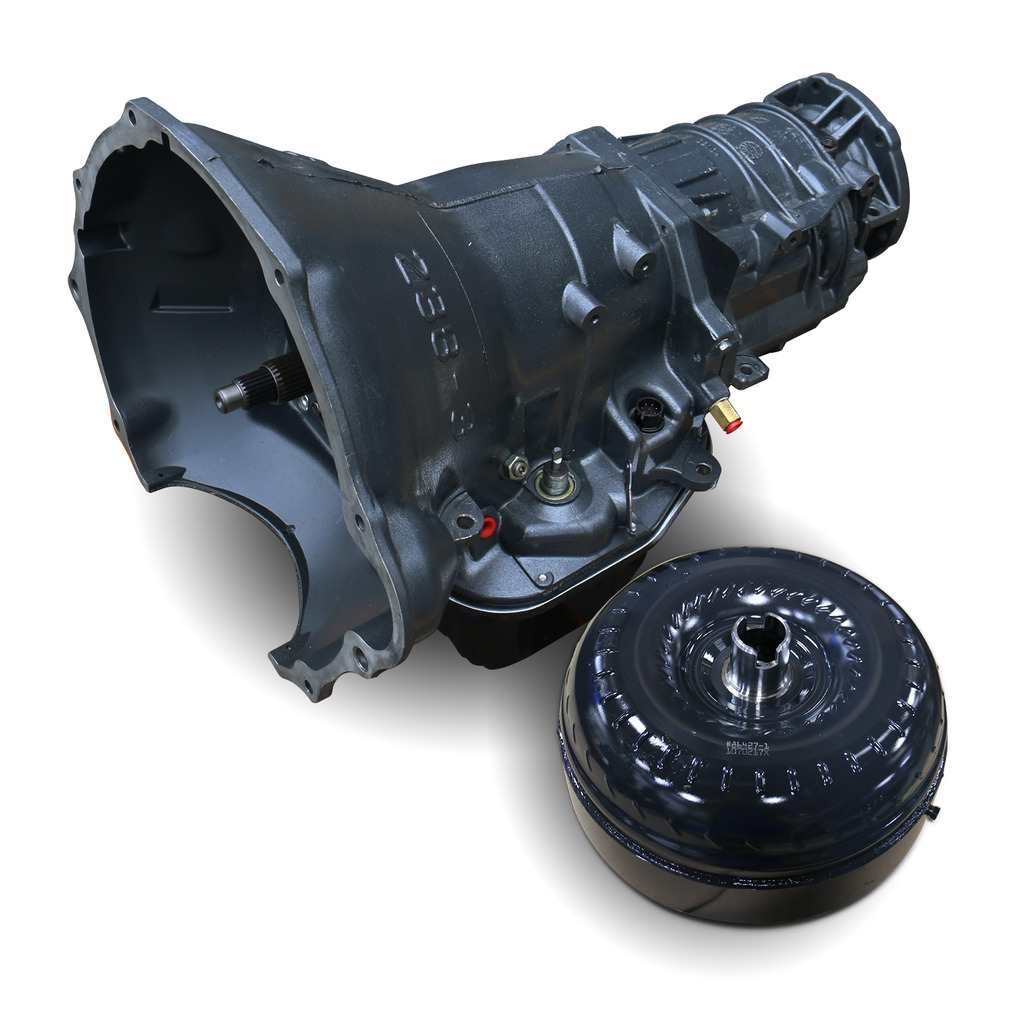

Fully remanufactured transmission featuring the BD Valve Body! The BD Valve Body has many modifications to improve shift quality and extend transmission life. The valve body is equipped with a new heavy-duty governor pressure solenoid as well as an upgraded pressure transducer kit with twice the burst pressure as stock. The RoadMaster transmission also includes a deep sump oil pan for increased fluid capacity and cooling. Every 48RE RoadMaster transmission comes packaged with a BD ProForce Torque Converter.

FEATURES
TRANSMISSION:
Upgraded BD Valve Body
Upgraded governor solenoid
Upgraded governor pressure transducer (47RE/48RE) - Twice the burst pressure than stock
Increased line pressure to 190-200psi
No shuttle shifting problems
Clutch Count: DIRECT 5 (same as OE)
Clutch Count: FORWARD 4 (same as OE)
Clutch Count: OD 5 (same as OE)
Clutch Count: OD DIRECT 10 (same as OE)
Billet band strut
BD deep sump oil pan with magnetic drain plug
Cooler line case saver in every transmission
Every transmission is tested on a dyno
TORQUE CONVERTER:
Enhanced Stall - Street/Towing applications
Torque multiplying cast aluminum stators
Lower rpm response than the stock converter
More efficient operation
Billet-forged front cover
Furnace-brazed turbine fins
INSTALL TIME
7 Hours 30 Minutes
WARRANTY
Parts
24-Months
100,000 Miles
Labour
12-Months
24,000 miles
Note
No Race abuse covered
