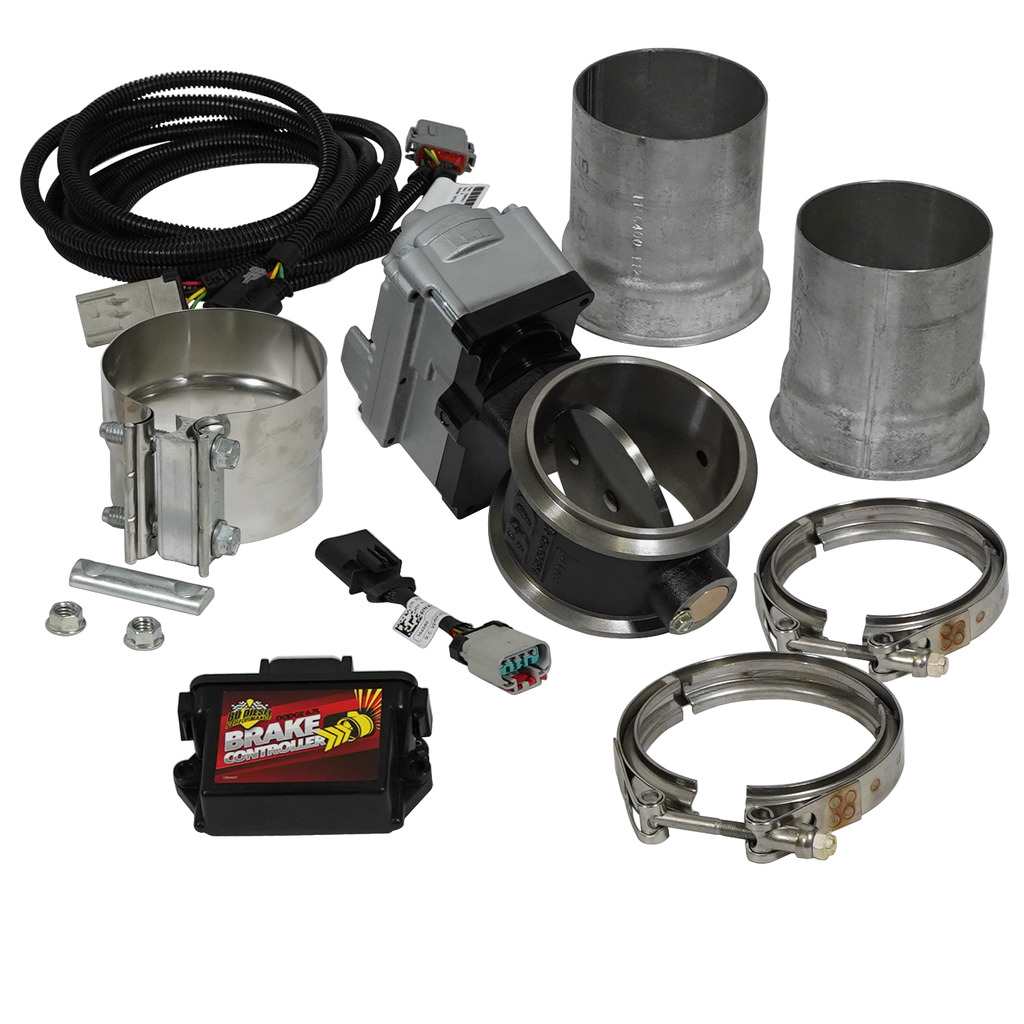

BD Diesel 1027349 BD Electronic Exhaust Brake 5.0-inch RAM 2500/3500 6.7L Cummins 2018-2023

It has been almost 30 years since we started shipping our first exhaust brakes. With that many hill and mountain roads experienced, we used the knowledge gained to continue to deliver the best designed exhaust brake for your application. Incorporating BD's exclusive Variable Orifice Technology, BD's solid, offset butterfly, spring loaded cylinder and pressure regulation provides up to 150 retarding horsepower throughout the engine's RPM range - not just at high rpm like some designs that use holes or additional parts and claim it as a better idea. A range of rugged, cast-iron housings for Dodge, Ford, Chevy and motor home applications that incorporate BD's exclusive alumibronze bushing, piston ring-seals and stainless steel butterfly shaft has proven to stand-up under the harsh, high heat conditions of the exhaust environment. BD's butterfly valve and rotating shaft are made of stainless steel to resist corrosion. An air compressor is included in most kits for newer pick-up trucks.

FEATURES
Ideal for applications where installed aftermarket performance turbo will not facilitate turbo mount exhaust brake
BD's exclusive Variable Orifice Technology
BD's solid, offset butterfly
Spring loaded cylinder
Pressure regulation
Provides up to 150 retarding horsepower throughout the engine's RPM range
Rugged, cast-iron housings
BD's exclusive alumibronze bushing
Piston ring-seals
Stainless steel butterfly shaft
Proven to stand-up under the harsh, high heat conditions of the exhaust environment
All mounting hardware are made of corrosion resistant stainless steel
Air compressor included
There's a reason why the BD Brake is the most widely-recognized diesel exhaust brake in the industry: It's the best! Compare it to the competition, and you'll see why.
INSTALL TIME
4 Hours
WARRANTY
Parts
24-Months
24,000 Miles
Labour
12-Months
12,000 miles
NOTE
Currently this product has been tested with Bullydog and H&S tuners. Please check with your tuner if using EFI (EZ Lynk) or HP Tuners as these products have been known to have compatibility issues.
Exhaust Back Pressure test gauge kit 1030050 suggested for the set-up of exhaust brakes
If truck has no factory exhaust brake switch on dash, order kit 1027340 instead
Will work on 2018-up models but requires special engine tuning - refer to installation manual for details
